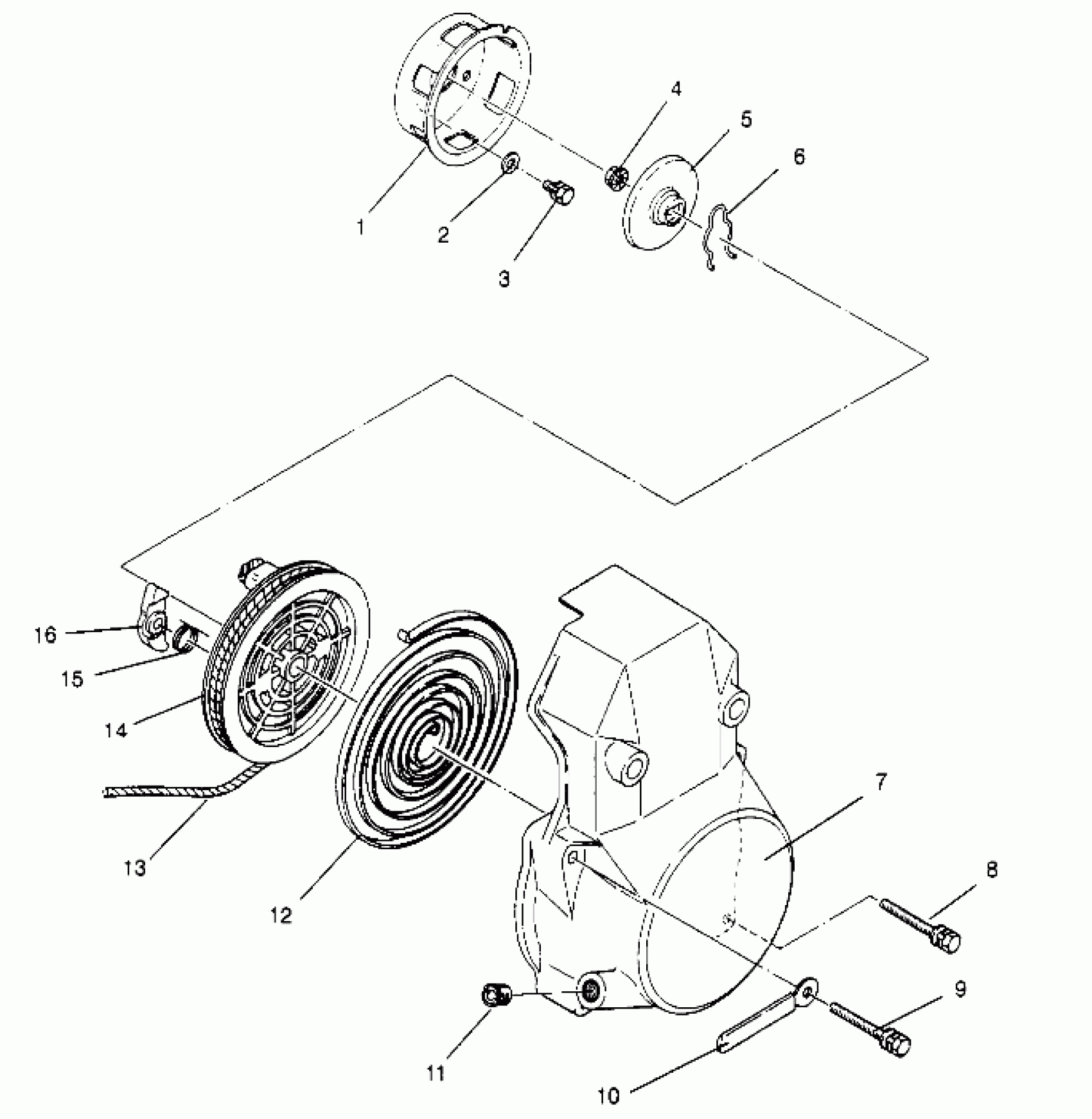

Polaris 500 EFI - 0952774 RECOIL STARTER ASSEMBLY 500 EFI 0952774, EFI SKS 0952574, EFI SKS PT 095 (4929052905D004) Diagram

#

Description
Price

1

Pulley, Starting

3083312

$36.41

2

WASHER

3082520

$1.49

3

BOLT&WASHER ASM.

3084224

Unavailable

4

NUT, FLANGE ,(10)

3083381

$2.99

5

Plate, Friction

3083464

$28.32

6

Spring, Friction

3083379

$24.27

7

STARTER, RECOIL ASM. (Incl. 4-7, 11, 12, 14-16)

3083461

Unavailable

7

CASE, STARTER

3083462

Unavailable

8

BOLT&WASHER ASSY.

3083615

Unavailable

9

BOLT&WASHER ASM.

3083382

$8.79

10

Clamp

3083384

Unavailable

11

GUIDE-ROPE

3083107

Unavailable

12

Spring, Spiral

3083376

$179.11

13

ROPE,100 FT,NYL.STARTER

2870621

$34.99

14

REEL, REWIND

3083377

$56.65

15

Spring, Return

3083463

$4.03

16

Ratchet

3083378

$20.22
