REAR TORQUE ARM ASSEMBLY 500 EFI 0952774, EFI SKS 0952574, EFI SKS PT 09 (4929052905C002)

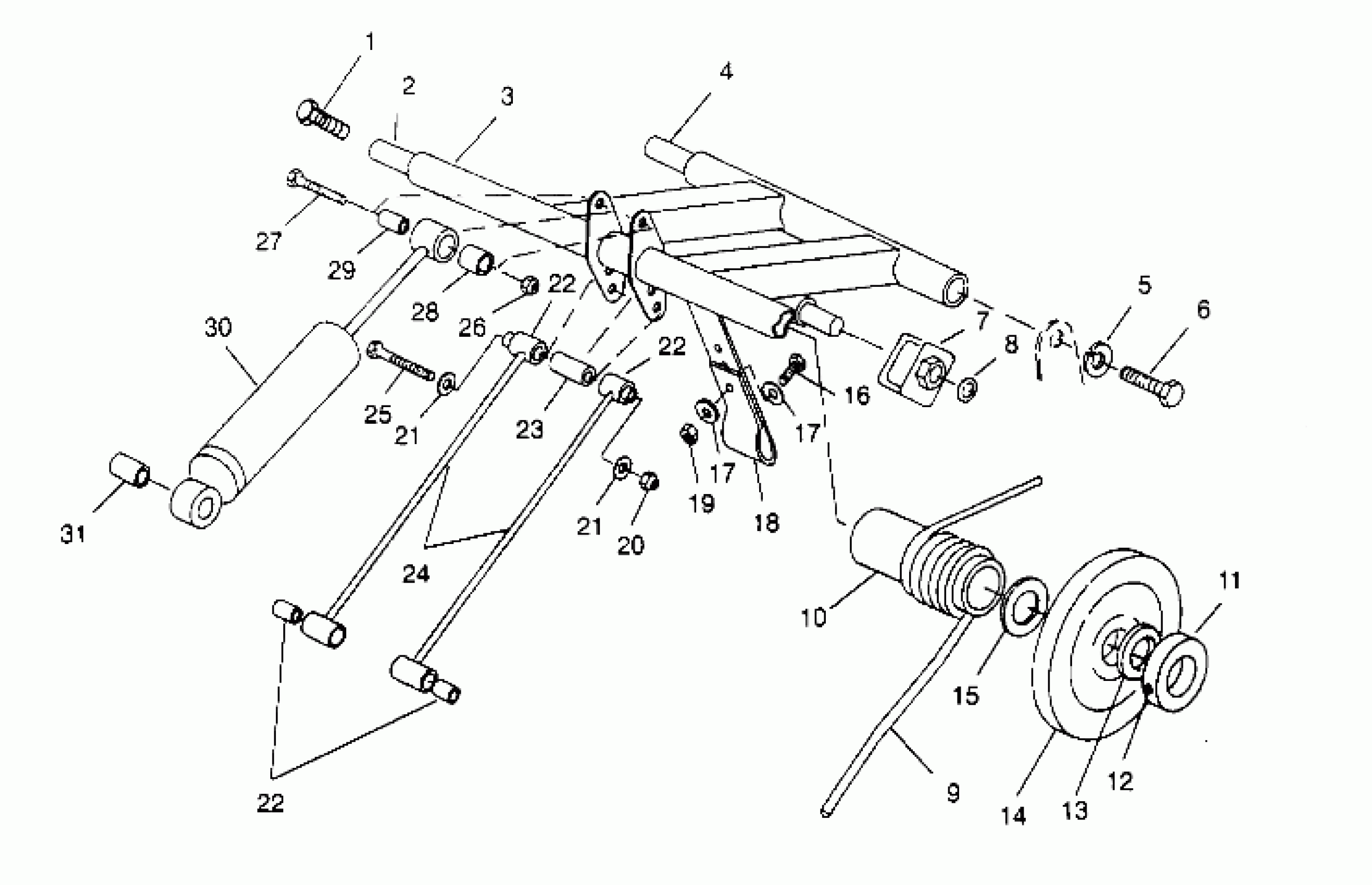

Polaris 500 EFI - 0952774 REAR TORQUE ARM ASSEMBLY 500 EFI 0952774, EFI SKS 0952574, EFI SKS PT 09 (4929052905C002) Diagram
#
1
BOLT,NYLOC,BLACK(10) Substituted by 7515432
7515493
Unavailable
2
SHAFT, MTG, REAR
5020570
Unavailable
3
ARM,R.TORQUE,BLK.
1540793-067
Unavailable
4
SHAFT,R.TORQUE ARM
5020727
Unavailable
5
WASHER(10)
7552603
$1.49
6
BOLT(10)
7515526
$1.19
7
ROLLER, SPRING ADJ.
5431168
Unavailable
8
CLIP-PUSH ON
7080394
$2.39
9
SPRING,RH,R.SUSP,BLK. (Std)
7041249-067
$99.21
9
SPRING,LH,R.SUSP,BLK. (Std)
7041248-067
Unavailable
9
SPRING,LH,BLK. (Firm)
7041235-067
Unavailable
9
SPRING,RH,BLK. (Firm)
7041236-067
Unavailable
9
SPRING,LH,R.SUSP,BLK. (Soft)
7041246-067
Unavailable
9
SPRING,RH,R.SUSP,BLK. (Soft)
7041247-067
Unavailable
10
Tube, Spring
5521234
Unavailable
11
COLLAR-BRG. LOCK
5010155
Unavailable
12
SCREW-SET(10)
7512257
$3.99
13
WASHER-WAVE(10)
7571605
$6.39
14
Wheel, Carrier
1543023
Unavailable
15
WASHER SPECIAL(10)
7556509
$1.59
16
BOLT(10)
7512247
$2.39
17
WASHER(10)
7558221
$2.39
17
WASHER(10)
7558221
$2.39
18
STRAP, LIMITER
5410587
Unavailable
19
NUT, LOCK(10)
7542103
$5.59
20
NUT FLEX LOC,(10)
7542402
$6.39
21
WASHER(10) Substituted by 7555806
7555720
$0.79
21
WASHER(10) Substituted by 7555806
7555720
$0.79
22
BUSHING,PIVOT TUBE
5020561
$1.59
22
BUSHING,PIVOT TUBE
5020561
$1.59
22
BUSHING,PIVOT TUBE
5020561
$1.59
23
SPACER,R.PIVOT ARM
5333026
$3.03
24
ROD, SUSP,BLK.
1540792-067
Unavailable
25
SCREW(10)
7512463
$5.43
26
NUT-5/16-18 NYLOK-Y
7542324
$1.49
27
BOLT(10)
7512329
$3.99
28
BUSHING
5430537
$3.99
29
BUSHING,R.SHOCK
5333030
Unavailable
30
SHOCK ASM.
7041237
Unavailable
31
BUSHING, 1.40
5020657
$15.99
