OIL TANK / AIR BOX ASSEMBLY 500 EFI 0952774, EFI SKS 0952574, EFI SKS PT (4929052905C007)

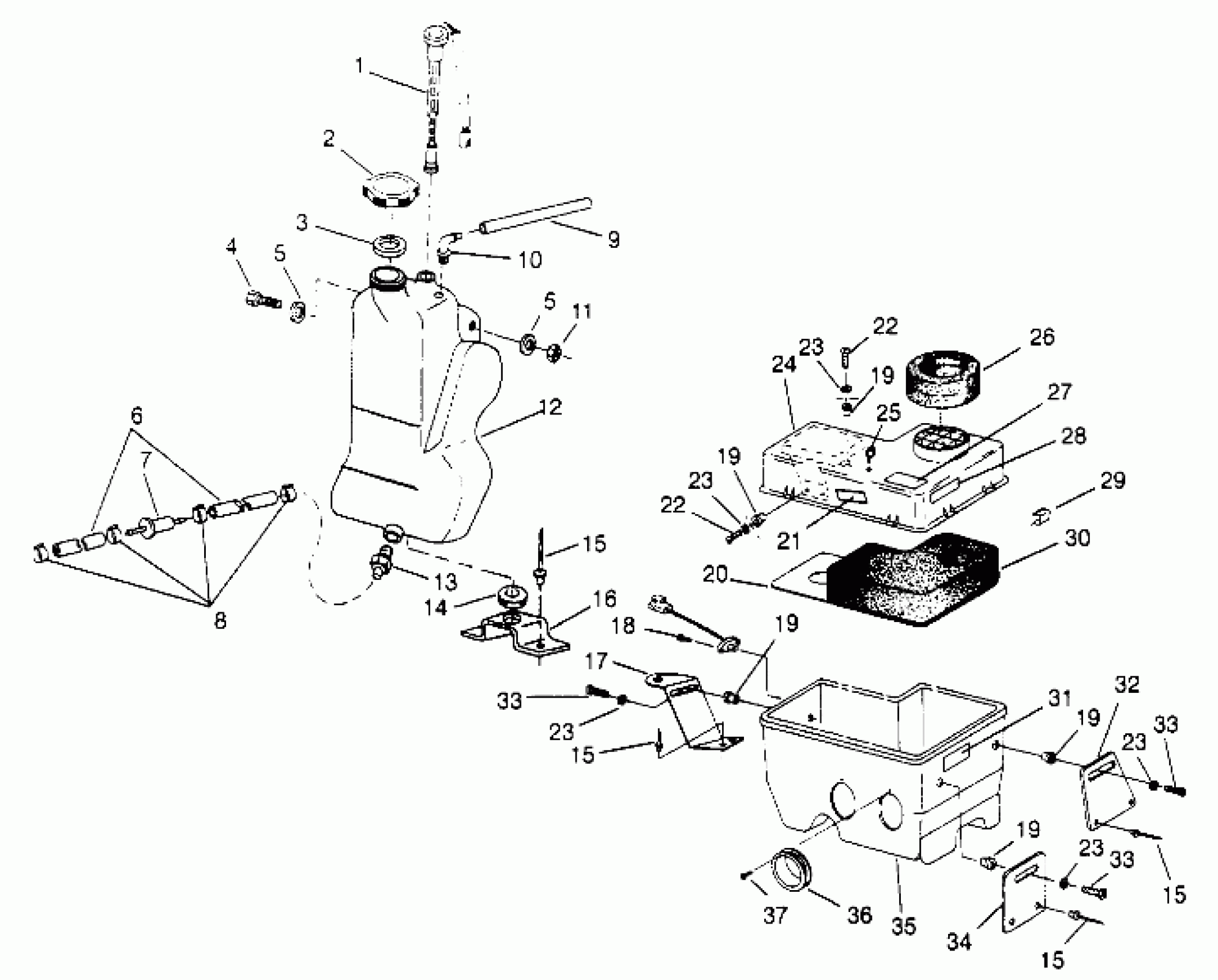

Polaris 500 EFI - 0952774 OIL TANK / AIR BOX ASSEMBLY 500 EFI 0952774, EFI SKS 0952574, EFI SKS PT (4929052905C007) Diagram
#
1
SENSOR,OIL LEVEL,W/CONN.
4040040
$72.84
2
CAP,OIL TANK
5430779
$14.56
3
GASKET-OIL CAP
5810141
$2.39
4
BOLT(10)
7512240
$3.99
5
WASHER,WROUGHT(10)
7558302
$1.59
5
WASHER,WROUGHT(10)
7558302
$1.59
6
FUEL LINE,1/4 ID(1525 CM.)
8450003-1525
Unavailable
7
FILTER,SMALL,IN-LINE,(10)
2530009
$5.65
8
CLAMP-HOSE, (LARGE GREEN) (Green)
7080307
$1.49
9
FUEL LINE,1/8 ID,600 CM.
8360009-600
Unavailable
10
FITTING,90 DEG,1/8,(10)
7052095
$4.79
11
NUT-LOCK(10)
7542122
$1.49
12
Tank, Oil
5431437
Unavailable
13
FITTING, OUTLET
7052042
$8.99
14
GROMMET RUBBER
5410021
Unavailable
15
RIVET-3/16-.090-.290
7661637
$1.49
15
RIVET-3/16-.090-.290
7661637
$1.49
15
RIVET-3/16-.090-.290
7661637
$1.49
15
RIVET-3/16-.090-.290
7661637
$1.49
16
BRACKET
5223985
Unavailable
17
BRKT,AIR SILENCER
5222617-067
Unavailable
18
BOLT(10) Substituted by 7527815
7511871
Unavailable
19
NUT-WELL(10)
7541923
$5.59
19
NUT-WELL(10)
7541923
$5.59
19
NUT-WELL(10)
7541923
$5.59
19
NUT-WELL(10)
7541923
$5.59
19
NUT-WELL(10)
7541923
$5.59
20
PLATE,AIR SILENCER
5850075
$24.27
21
DECAL,COOLING SYS. [No Longer Available]
7073721
Unavailable
22
BOLT(10)
7512261
$4.99
22
BOLT(10)
7512261
$4.99
23
WASHER-1/4X1/2X.025 EXT TTH-Y
7552604
$1.59
23
WASHER-1/4X1/2X.025 EXT TTH-Y
7552604
$1.59
23
WASHER-1/4X1/2X.025 EXT TTH-Y
7552604
$1.59
23
WASHER-1/4X1/2X.025 EXT TTH-Y
7552604
$1.59
23
WASHER-1/4X1/2X.025 EXT TTH-Y
7552604
$1.59
24
DECAL,OXY.FUEL(500 EFI)
7074912
Unavailable
25
SILENCER,AIR,UP.DRILLED
5431566
Unavailable
26
CLAMP,WIRE ROUTING(10)
7080409
$2.39
27
DUCT ASM,AIR
2620057
$40.46
28
DECAL,CAUTION(AIR BOX) [No Longer Available]
7072891
Unavailable
29
DECAL,ADJ.DRIVEN CLUTCH
7073820
Unavailable
30
CLIP, AIR BOX,(10)
7670055
$7.99
31
BAFFLE ASM, (EFI,94)
1253117
Unavailable
32
DECAL, GREASING [No Longer Available]
7073426
$7.27
33
BRACKET, SILENCER
5211274
$9.70
33
BRACKET, SILENCER
5211274
$9.70
33
BRACKET, SILENCER
5211274
$9.70
34
SCREW(10)
7512279
$1.49
35
BRKT,FRT.SILENCER
5211296-067
$4.38
36
SILENCER,INTAKE,DRILLED Substituted by 5432310
5431290
Unavailable
37
BOOT, RELIEVED
5410585
Unavailable
