NOSEPAN ASSEMBLY 500 EFI 0952774, EFI SKS 0952574, EFI SKS PT 0952974, a (4929052905A012)

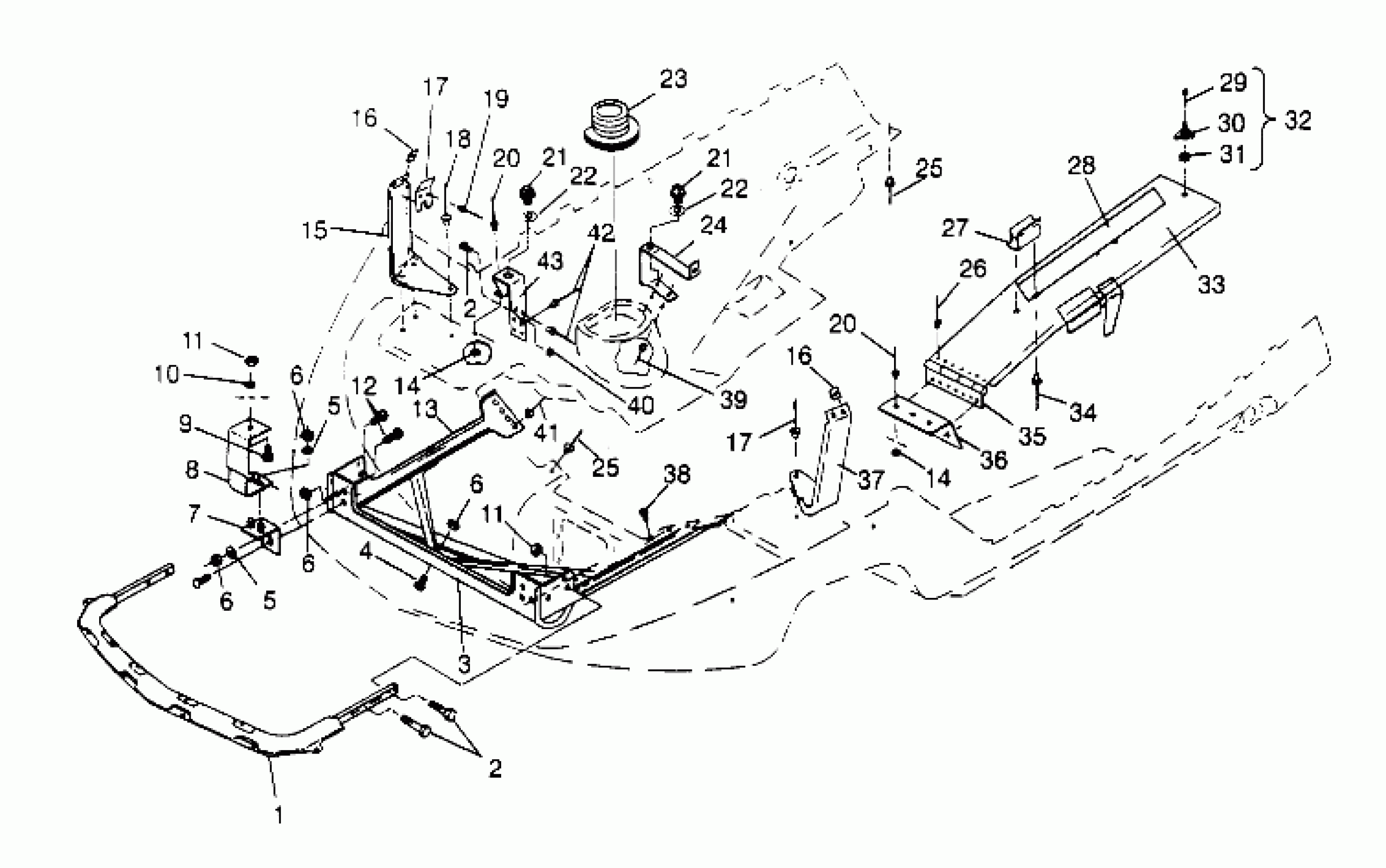

Polaris 500 EFI - 0952774 NOSEPAN ASSEMBLY 500 EFI 0952774, EFI SKS 0952574, EFI SKS PT 0952974, a (4929052905A012) Diagram
#
1
BUMPER,FRONT
2670146-067
Unavailable
2
SCREW(10)
7512307
$3.99
2
SCREW(10)
7512307
$3.99
3
BRACE,HD.SUPP.LOW,BLK.
5222889-067
Unavailable
4
BOLT(10)
7512298
$3.99
5
WASHER,WROUGHT(10)
7558302
$1.59
5
WASHER,WROUGHT(10)
7558302
$1.59
6
NUT, LOCK(10)
7542103
$5.59
6
NUT, LOCK(10)
7542103
$5.59
6
NUT, LOCK(10)
7542103
$5.59
6
NUT, LOCK(10)
7542103
$5.59
7
MOUNT,HINGE,BLK.
1011982-067
$45.99
8
HINGE ASM,HOOD,BLK.
2635013-067
Unavailable
9
SCREW(10)
7512310
$2.39
10
WASHER-.344X.688X.063 FL-Y
7558402
$1.49
11
NUT FLEX-LOC(10)
7542303
$6.39
11
NUT FLEX-LOC(10)
7542303
$6.39
12
BOLT(10)
7512193
$2.39
13
SUPPORT,LH,BUMPER,BLK.
1011968-067
Unavailable
13
SUPPORT,RH,BUMPER,BLK.
1011969-067
Unavailable
14
BURR,RIVET(50)
7555904
$1.49
14
BURR,RIVET(50)
7555904
$1.49
15
BRKT,RH,SIDEPANEL
5240770
$8.05
16
NUT, RETAINER(10)
7542146
Unavailable
16
NUT, RETAINER(10)
7542146
Unavailable
17
SHIELD,FASTENER
5240769
$0.90
17
SHIELD,FASTENER
5240769
$0.90
18
RIVET(50)
7621485
$1.49
19
RIVET(50)
7621318
$1.49
20
RIVET(50)
7621433
$1.49
20
RIVET(50)
7621433
$1.49
21
DAMPNER, VIB.
5410467
$8.79
21
DAMPNER, VIB.
5410467
$8.79
22
WASHER, THRUST(10)
7555788
$4.99
22
WASHER, THRUST(10)
7555788
$4.99
23
Boot, Exhaust
5410502
$24.27
24
BRKT,R.MUFFLER SUPPORT
5240715-067
Unavailable
25
RIVET, BLIND(50)
7621467
$1.49
25
RIVET, BLIND(50)
7621467
$1.49
26
RIVET, POP(50)
7621330
$1.49
27
CLIP,BELT RETAINER
5222769
$8.79
28
DECAL,ENG/CLUTCH [No Longer Available]
7072871
Unavailable
29
SCREW(10)
7515352
Unavailable
30
Knob, Backrest
5630386-067
$20.22
31
SPACER
5431285
Unavailable
32
KNOB ASM,BACKREST (Incl. 29)
2670130
Unavailable
33
GUARD,CLUTCH,(EURO) (EURO)
1011999
$50.75
33
GUARD,CLUTCH
5222903
Unavailable
34
RIVET(50)
7621429
$1.49
35
HINGE
5210728
Unavailable
36
MT,FR.CLUTCHGUARD
5222904
Unavailable
37
BRKT,LH SIDEPANEL,BLK.
5222897-067
Unavailable
38
CLIP, PLASTIC(10)
4020139
$4.79
39
RIVET(50)
7621472
$1.49
40
NUT LOCK(10)
7542321
$1.49
41
RIVET,3/16X.402(50)
7621432
$1.49
42
RIVET-3/16-.090-.290
7661637
$1.49
43
SUPPORT,FR.MUFFLER,BLK.
5240720-067
Unavailable
