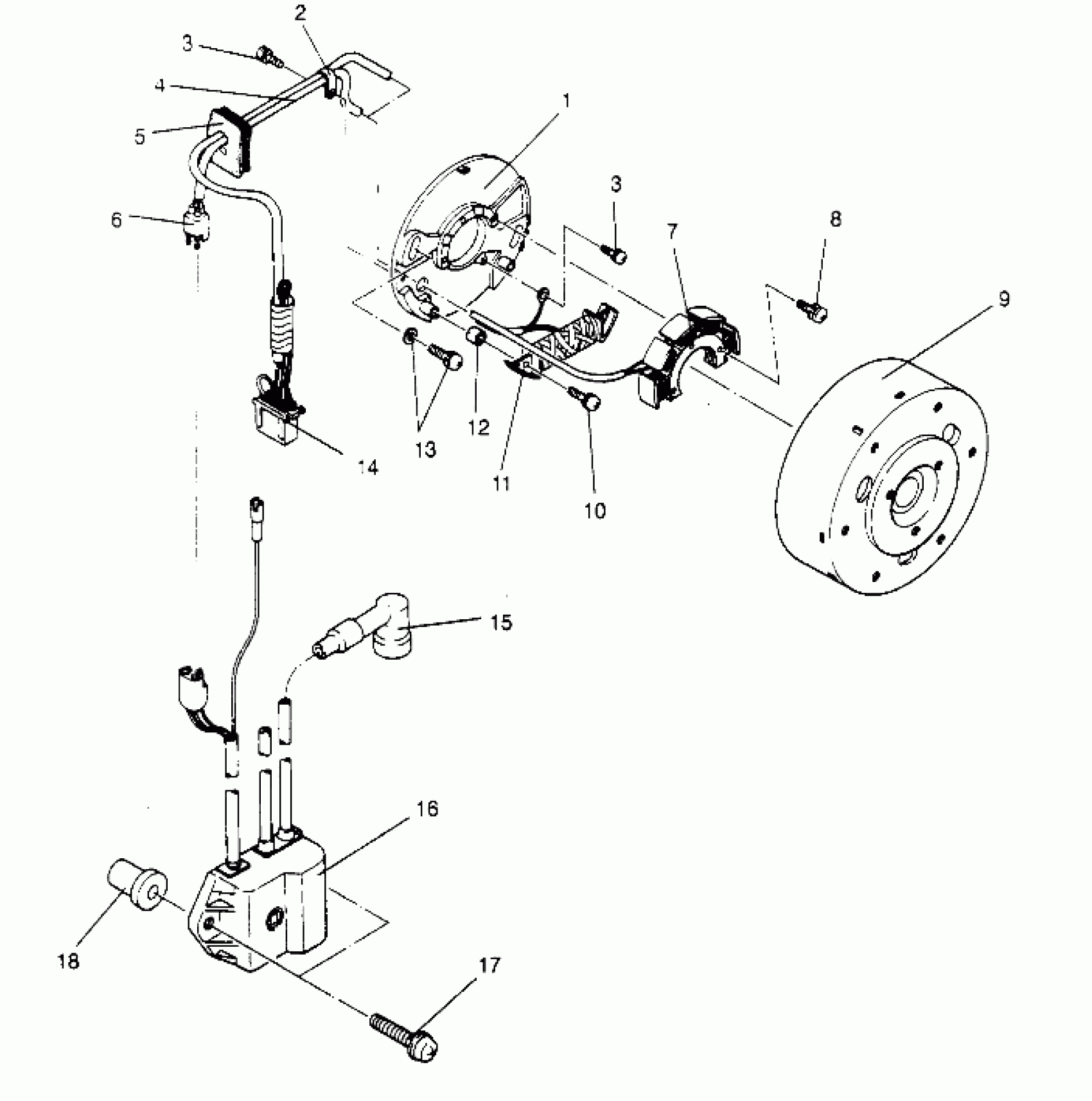

Polaris 500 EFI - 0952774 MAGNETO ASSEMBLY 500 EFI 0952774, EFI SKS 0952574, EFI SKS PT 0952974, a (4929052905D003) Diagram

#

Description
Price

1

Plate, Coil

3083987

$364.99

1

PLATE ASM. (Incl. 1-8, 10-12, 14)

3084634

Unavailable

2

Clamp

3081146

$1.49

3

SCREW&WASHER,(10)

3081260

$3.19

3

SCREW&WASHER,(10)

3081260

$3.19

4

Harness, Wire (Incl. 5)

-------

Unavailable

5

Grommet

3082969

Unavailable

6

COUPLER

3083909

$23.99

7

STATOR #1

3084635

Unavailable

8

SCREW(10)

3082365

$3.19

9

FLYWHEEL

3084636

Unavailable

10

SCREW&WASHER

3084510

Unavailable

11

Coil, Exciter

3083984

$89.03

12

COLLAR

3084638

Unavailable

13

SCREW&WASHER,(10)

3082175

Unavailable

14

COUPLER,MALE

3081513

$19.99

15

CAP SPARK PLUG,(10)

4020129

$9.70

16

COIL, IGNITION

3084288

Unavailable

17

SCREW&WASHER,(10)

3083784

$2.39

18

NUT-RUBBER

3083240

Unavailable
