HOOD ASSEMBLY 500 EFI 0952774, EFI SKS 0952574, EFI SKS PT 0952974, and (4929052905A014)

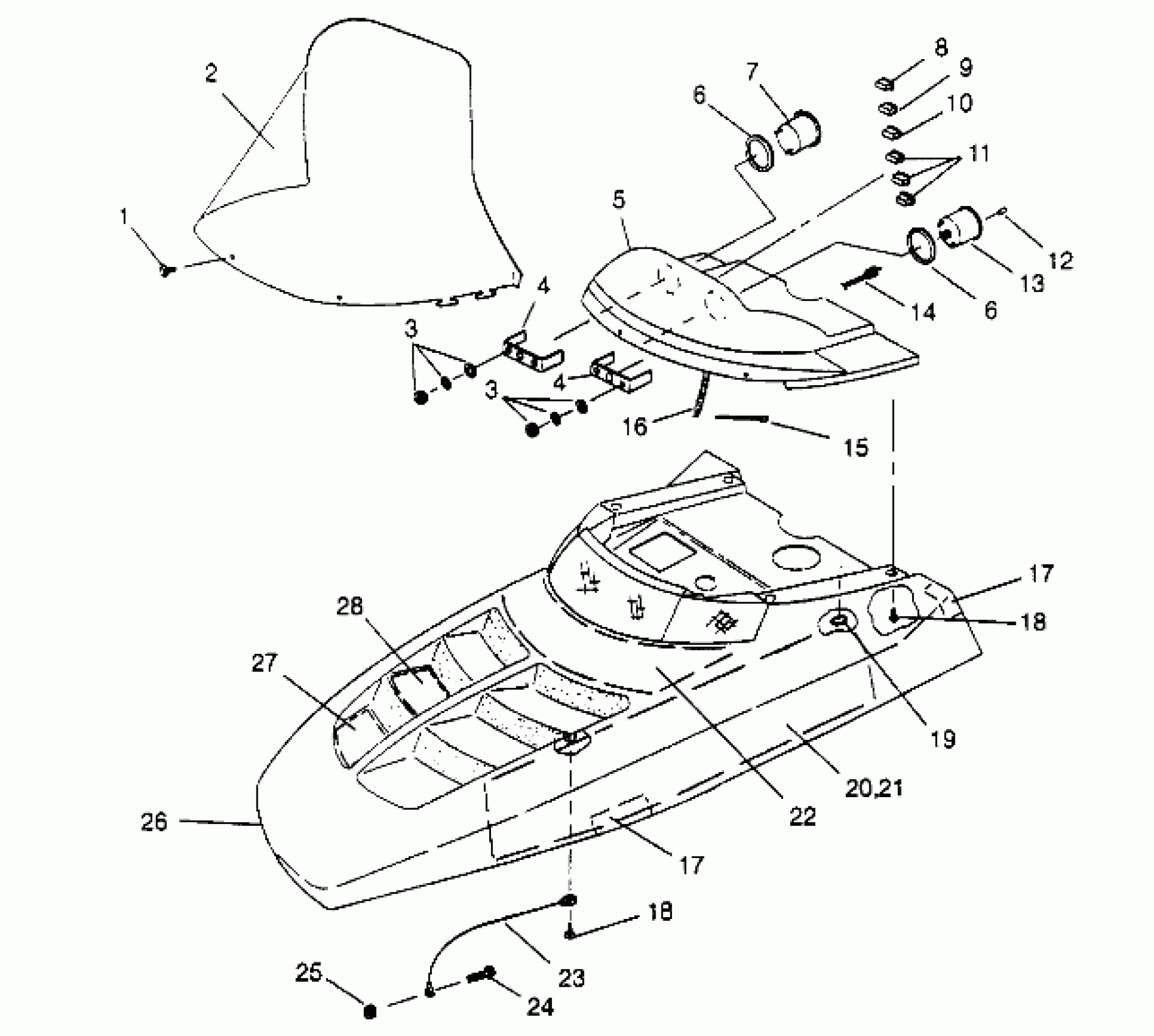

Polaris 500 EFI - 0952774 HOOD ASSEMBLY 500 EFI 0952774, EFI SKS 0952574, EFI SKS PT 0952974, and (4929052905A014) Diagram
#
1
RIVET,PLASTI-LOC.(50)
7621509
$1.49
2
WNDSHLD,STD,SMOKE,EV.
5431930
Unavailable
3
WASHER,FLAT,(10)
3280157
$2.39
3
Nut
3280158
Unavailable
3
WASHER,SPLIT LOCK
3280156
$1.49
3
WASHER,FLAT,(10)
3280157
$2.39
3
Nut
3280158
Unavailable
3
WASHER,SPLIT LOCK
3280156
$1.49
4
BRKT,SPEEDO/TACH
3280153
Unavailable
4
BRKT,SPEEDO/TACH
3280153
Unavailable
5
HSG.ASM,INST. (Incl. Warning Decals)
2652130
$78.39
6
CUSHION,TACH/SPEEDO,RUBBER
3280151
Unavailable
6
CUSHION,TACH/SPEEDO,RUBBER
3280151
Unavailable
7
BULB TAILLIGHT(10)
4030015
$4.03
7
TACHOMETER,BACKLIT(2P) (Incl. 3, 4, 6, 12)
3280149
Unavailable
8
INDICATOR'TEMP/BATT'.WARN.
4040026
$13.19
9
INDICATOR'OIL/BRK'WARN.
4040034
$12.17
10
INDICATOR'HI-BEAM'WARN.
4040013
Unavailable
11
PLUG,INDIC.HOLE
5430967
$5.65
12
KNOB,TRIP ODOMETER,LH THD.
3280186
$9.70
13
BULB TAILLIGHT(10)
4030015
$4.03
13
SPEEDOMETER,BACKLIT (Incl. 3, 4, 6, 12)
3280148
Unavailable
13
SPEEDO,KILOMETER (Incl. 3, 4, 6, 12) (EURO)
3280159
$113.99
14
CABLE,SPEEDO.
3280094
$60.70
15
CABLE-TIE,DIA12-50MM,WTHR-RES.
7080138
$2.41
16
HARNESS,H/L,(500EFI)
2460416
$20.13
17
FOIL,TAPE,1.5X6
5810949
$3.19
17
FOIL,TAPE,1.5X6
5810949
$3.19
18
SCREW(10)
7512070
Unavailable
18
SCREW(10)
7512070
Unavailable
19
O RING,(HEAVY),(10) Substituted by 5410970
5410387
$1.19
20
FOAM,LH,HOOD
5810876
Unavailable
21
FOAM,RH,HOOD
5810877
Unavailable
21
FOIL,RH,HOOD
5810905
Unavailable
22
FOAM,HOOD,CTR.
5810875
Unavailable
23
CABLE,HOOD RETAINER
7080521
$24.27
24
SCREW(10)
7511930
$2.39
25
NUT FLEX LOC(10)
7541906
$3.19
26
HOOD ASM,500 (Incl. 17, 20-22, 27, 28, Foam & Foil)
2631591-177
Unavailable
27
FOIL,HOOD,FRONT
5810874
Unavailable
28
FOIL,HOOD,CTR.
5810873
Unavailable
