ENGINE MOUNTING 500 EFI 0952774, EFI SKS 0952574, EFI SKS PT 0952974, an (4929052905C005)

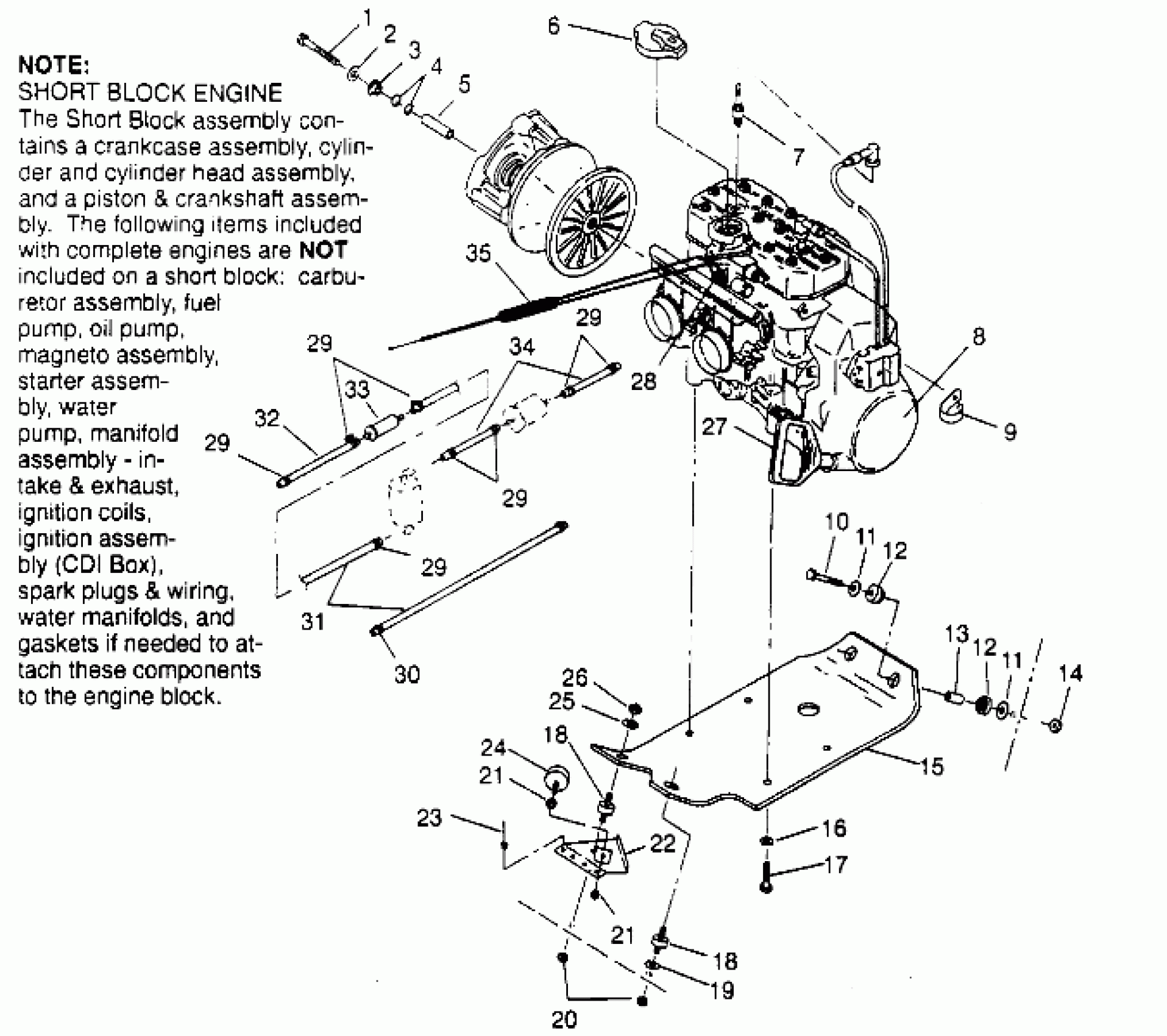

Polaris 500 EFI - 0952774 ENGINE MOUNTING 500 EFI 0952774, EFI SKS 0952574, EFI SKS PT 0952974, an (4929052905C005) Diagram
#
1
BOLT(10)
7512565
$19.99
2
WASHER-7/16-INT LK-(1222)-Z
7575202
$4.79
3
WASHER,CLUTCH RETAINER
5010278
Unavailable
4
O RING,(10)
5410507
$1.49
5
SPACER,CLUTCH BOLT
5020513
$44.99
6
CAP, PRESSURE Substituted by 2511256
2511217
Unavailable
7
SPARKPLUG, RN3C(8)
3070166
$3.99
8
ENG.(S.B.)EC50PL-05 [No Longer Available]
3084621
Unavailable
9
CLAMP(10) Substituted by 7080573
7080347
Unavailable
10
SCREW(10)
7512530
$5.59
11
WASHER(10)
7555740
$1.59
11
WASHER(10)
7555740
$1.59
12
MOUNT, ENGINE
5410390
Unavailable
12
MOUNT, ENGINE
5410390
Unavailable
13
TUBE,SPACER
5333354
Unavailable
14
NUT,FLANGE(10)
7542522
$5.59
15
PLATE,ENG.MT.
5222867
Unavailable
16
WASHER LOCK(10)
7553101
$3.99
17
BOLT(10)
7512539
$3.99
18
MOUNT
3110022
Unavailable
18
MOUNT
3110022
Unavailable
19
WASHER(10)
7555721
$1.49
20
NUT LOCK(10)
7542411
$3.19
21
NUT, JAM(10)
7542432
$3.99
21
NUT, JAM(10)
7542432
$3.99
22
LIMITER,TORQUE,BLK.
1011930-067
Unavailable
23
RIVET-3/16-.090-.290
7661637
$1.49
24
STOP
3110023
Unavailable
25
WASHER(10) Substituted by 7555806
7555720
$0.79
26
NUT-LOCK(10)
7542439
$1.49
27
HANDLE,RECOIL Substituted by 5431499-070
5431499
Unavailable
28
CONDUIT,CONVOL(26 CM) Substituted by 4010051-30
4010051-26
Unavailable
29
HOSE CLAMP, RED (Red)
7080003
$1.49
29
HOSE CLAMP, RED (Red)
7080003
$1.49
29
HOSE CLAMP, RED (Red)
7080003
$1.49
29
HOSE CLAMP, RED (Red)
7080003
$1.49
29
HOSE CLAMP, RED (Red)
7080003
$1.49
30
CLAMP,HOSE(SCREW TYPE)
7080417
$9.59
31
FUEL LINE, 5 FT.
8450045-153
Unavailable
32
FUEL LINE,1/4 ID(600 CM.)
8450040-600
Unavailable
33
FILTER FUEL,(10)
2530008
$4.84
34
FUEL LINE, 5 FT.
8450044-153
Unavailable
35
CABLE,THROTTLE,SINGLE
7080555
Unavailable
