NOSEPAN ASSEMBLY 500 EFI 0942774 and EFI SKS 0942574 (4924982498003A)

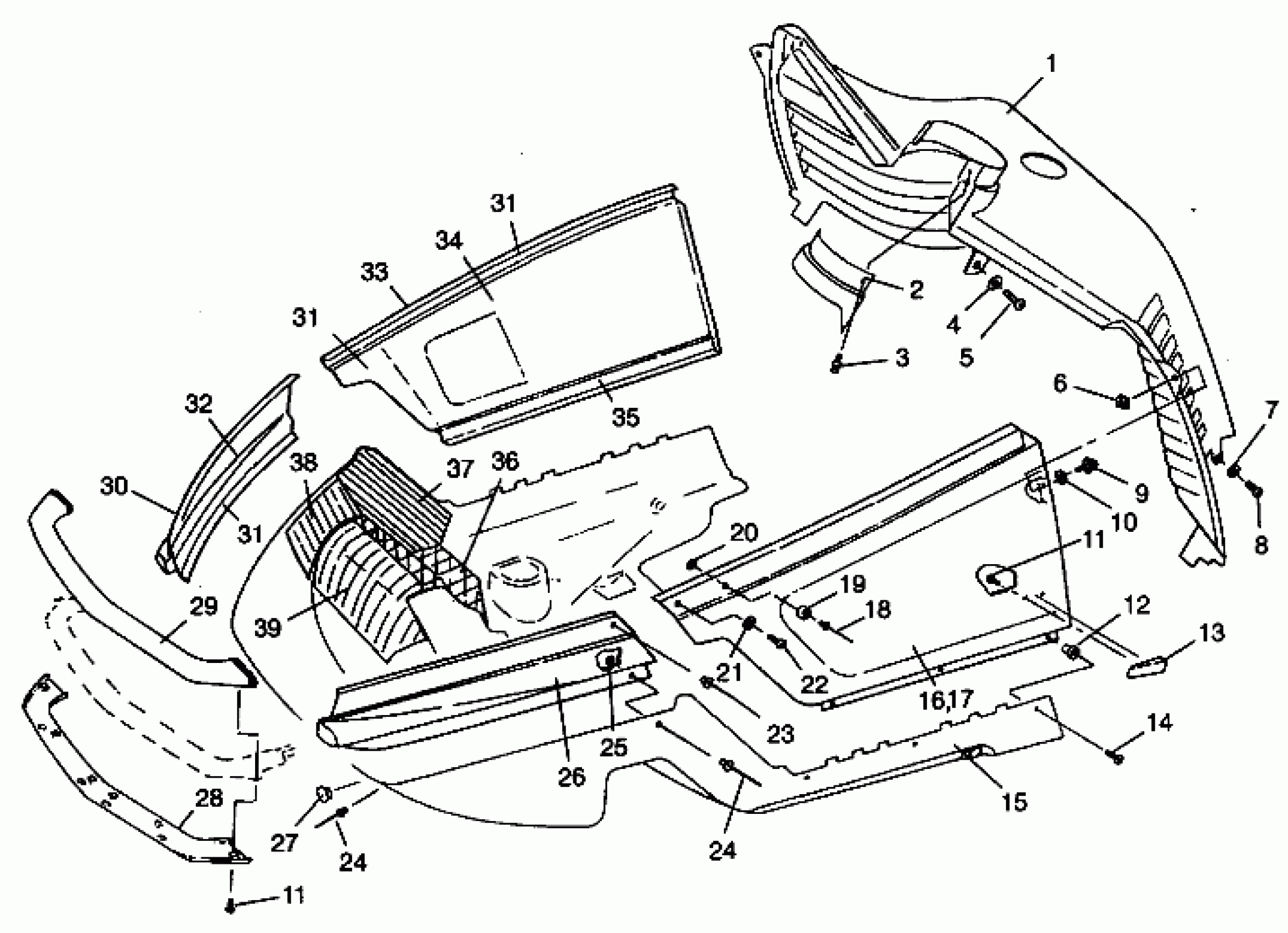

Polaris 500 EFI - 0942774 NOSEPAN ASSEMBLY 500 EFI 0942774 and EFI SKS 0942574 (4924982498003A) Diagram
#
1
CONSOLE,BASIC
5431467
Unavailable
2
COVER,CONSOLE
5431535
$54.35
3
RIVET,PLASTI-LOC.(50)
7621509
$1.49
4
WASHER(10) Substituted by 7558301
7555776
Unavailable
5
SCREW(10)
7512252
Unavailable
6
NUT,RETAINER(10)
7542138
Unavailable
7
WASHER(10)
7555792
$4.79
8
SCREW(10)
7512069
Unavailable
9
RETAINER,HOODLATCH
5431502
$12.94
10
WASHER,RUBBER(10)
7555884
$5.70
11
SCREW(10)
7512068
$2.39
11
SCREW(10)
7512068
$2.39
12
NUT-WELL(10)
7541923
$5.59
13
BUMPER,SIDE PANEL Substituted by 5432456
5431662
Unavailable
14
SCREW(10)
7512279
$1.49
15
NOSEPAN,BLK.
5431471-070
Unavailable
16
PANEL,SIDE,LH,BLACK Substituted by 5431742-177
5431468-177
Unavailable
17
FOAM,LH,SIDEPANEL Substituted by 5811076
5810933
Unavailable
18
RIVET(50)
7621315
$3.99
19
BUMPER,RUBBER STOP Substituted by 5411440
5410843
Unavailable
20
RIVET BURR(50)
7555756
$2.99
21
WASHER,HI-TEMP,(10)
7555886
Unavailable
22
SCREW(10)
7515148
$4.79
23
RIVET(50)
7621472
$1.49
24
RIVET, BLIND(50)
7621467
$1.49
24
RIVET, BLIND(50)
7621467
$1.49
25
WASHER,13/64X1/2X18GA,FL-Y
7558212
$1.49
26
BUMPERSIDE,LH,BLK.
5431492-177
Unavailable
27
PLUG,NOSEPAN HOLE
5410820
$15.99
28
COVER,F.BUMP.BOTT.BLK. Substituted by 5431481
5431481-177
Unavailable
29
COVER,F.BUMP.TOP,BLK.
5431480-177
Unavailable
30
BUMPER,RH.SIDE/FOIL,BLK.MT. Substituted by 2610010-177
2610006-177
Unavailable
31
TAPE,FOIL,215 CM.(85 IN.) (Service)
8360043-215
Unavailable
31
TAPE,FOIL,215 CM.(85 IN.) (Service)
8360043-215
Unavailable
31
TAPE,FOIL,215 CM.(85 IN.) (Service)
8360043-215
Unavailable
32
FOIL,MID.BUMPER Substituted by 5811086
5810932
Unavailable
33
PANEL,RH,SIDE/FOIL,BLK. Substituted by 2610008-177 (Incl. 34)
2610005-177
Unavailable
34
FOAM,RH,SIDEPANEL
5810934
$25.78
35
TAPE,FOIL,100 CM. (Service)
8360044-100
Unavailable
36
FOIL,R.SHOCK TOWER
5810938
Unavailable
37
FOIL,RH,PAN
5810908
Unavailable
38
FOIL,SIDE.SHOCKTOWER
5810939
Unavailable
39
FOIL,F.SHOCK TOWER
5810937
Unavailable
