HOOD/HEADLIGHT ASSEMBLY 500 EFI 0942774 and EFI SKS 0942574 (4924982498006A)

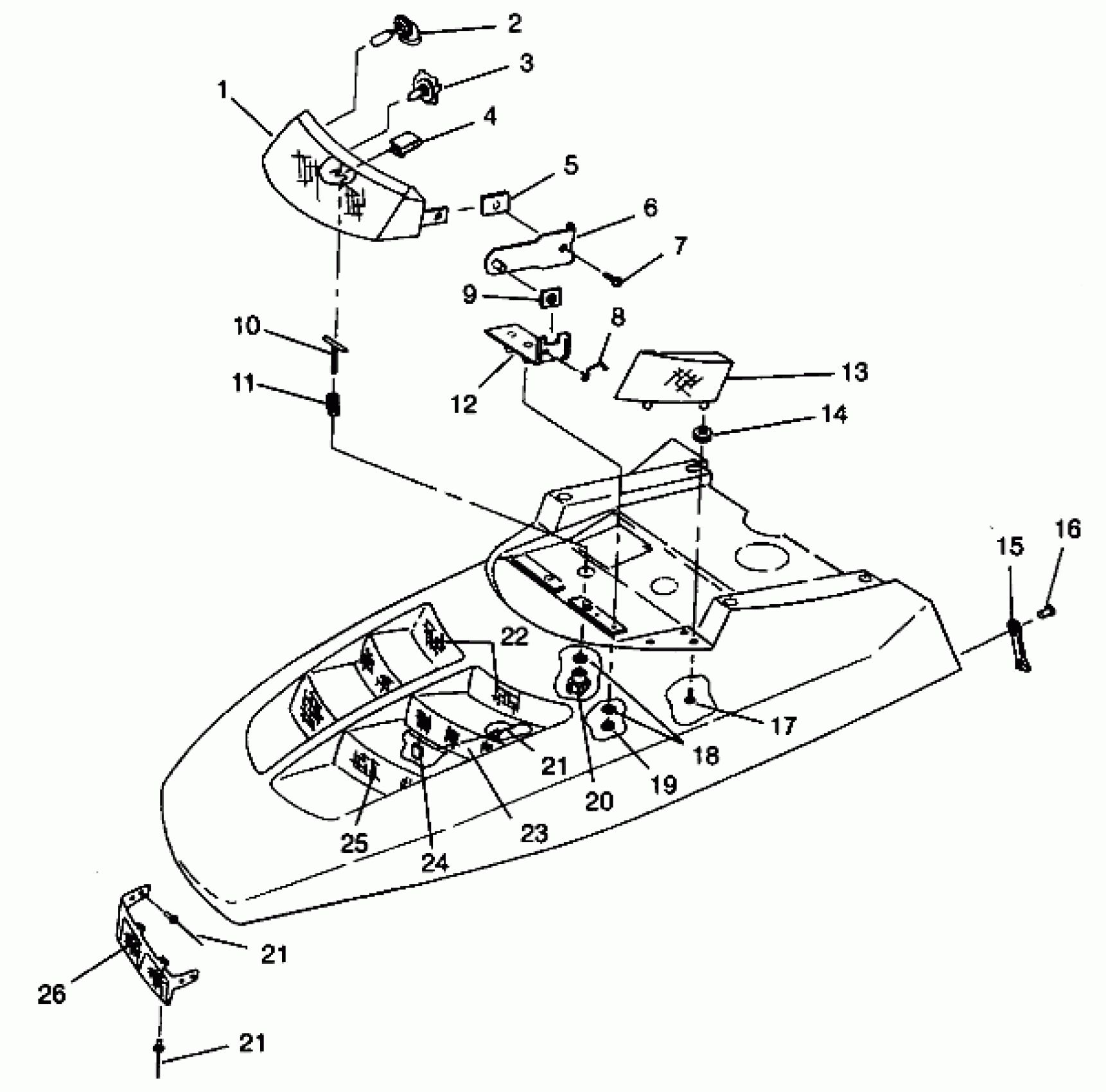

Polaris 500 EFI - 0942774 HOOD/HEADLIGHT ASSEMBLY 500 EFI 0942774 and EFI SKS 0942574 (4924982498006A) Diagram
#
Description
Price
1
H/L ASM,3-BULB (Incl. 2,3)
2431008
$111.99
2
BULB,HI-BEAM
4030048
$29.03
3
BULB,QUARTZ.H/L,INDY
2870448
$24.99
4
FASTENER-U TYPE CLIP
7670040
$3.99
5
NUT, SPEED(10)
7670057
$1.49
6
MOUNT,WELD,H/L,BLK. Substituted by 1011944-067
1011944
Unavailable
7
BOLT(10)
7515107
Unavailable
8
RETAINER,LH,WIRE
5224493
$2.22
8
RETAINER,RH,WIRE
5224501
Unavailable
9
PIVOT,HEADLIGHT
5431549
Unavailable
10
BOLT,TEE ADJUSTER Substituted by 7517746
7515135
$24.99
11
SPRING,H/L.ADJ.
7041308
$3.19
12
BRKT,LH,H/L MT.,BLK.
1011984-067
Unavailable
12
BRKT,RH,H/L MT.,BLK.
1011985-067
Unavailable
13
LENS/REFLECTOR,LH
5431497
$20.63
13
LENS/REFLECTOR,RH
5431498
$21.27
14
GROMMET
5410770
Unavailable
15
STRAP,HOODLATCH
5431501
Unavailable
16
RIVET,(50)
7621601
Unavailable
17
SCREW(10) Substituted by 7512048
7511953
Unavailable
18
WASHER(10)
7558301
$1.49
19
NUT-LOCK(10)
7542122
$1.49
20
KNOB,H/L.ADJUST
7080501
Unavailable
21
RIVET(50)
7621339
$1.49
21
RIVET(50)
7621339
$1.49
21
RIVET(50)
7621339
$1.49
22
SCREEN,UP.HD,BLK.
5222908-067
Unavailable
23
SCREEN,CTR.HD,BLK.
5222907-067
Unavailable
24
SPEEDCLIP,'U'TYPE(10)
7670082
Unavailable
25
SCREEN,LOW.HD,BLK. Substituted by 5240950-067
5222906-067
$17.30
26
SCREEN,FR.,BLK.
1012031-067
Unavailable
