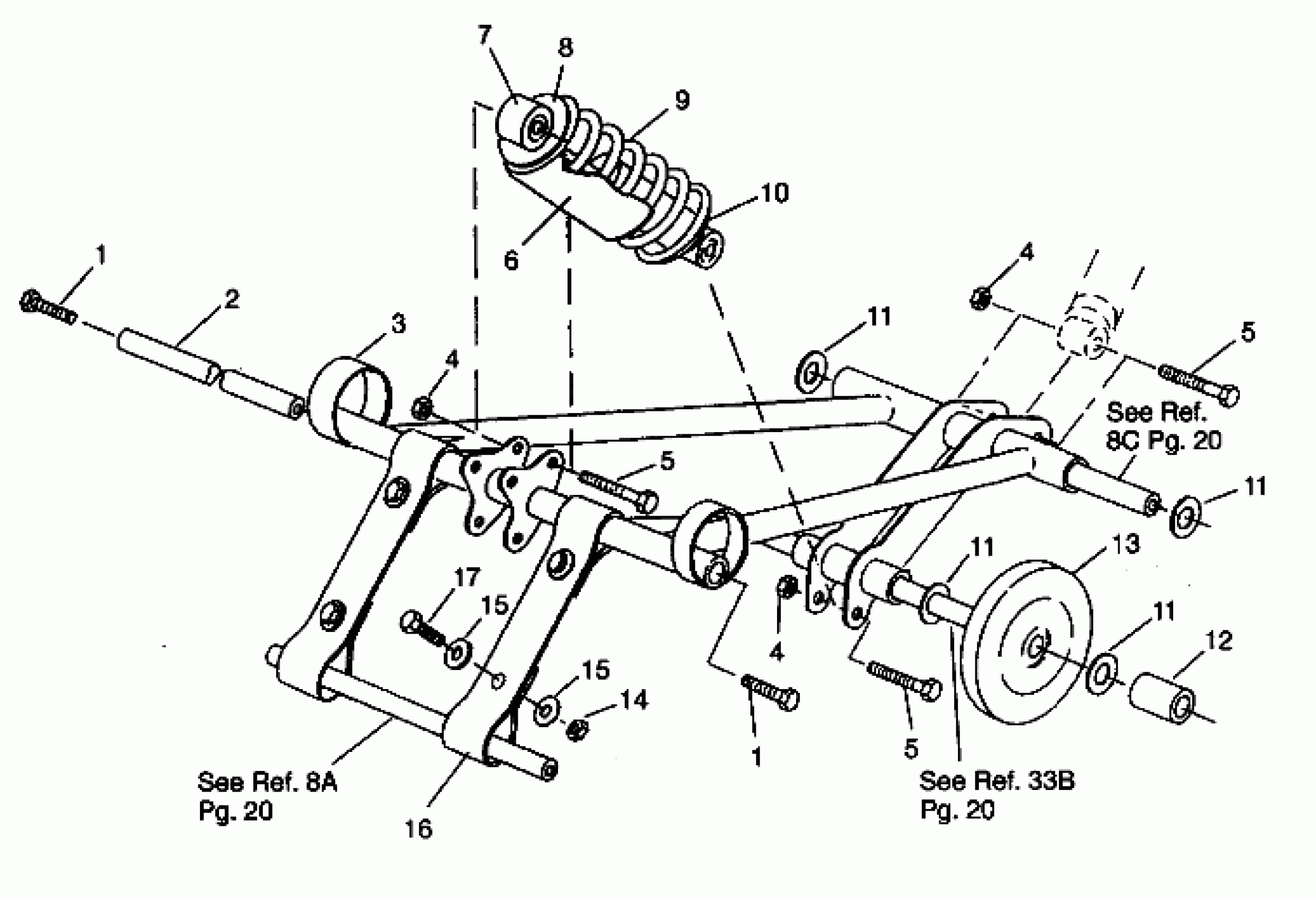

Polaris 500 EFI - 0942774 FRONT TORQUE ARM 500 EFI 0942774 and EFI SKS 0942574 (4924982498023A) Diagram

#

Description
Price

1

BOLT,NYLOC,BLACK(10) Substituted by 7515432

7515493

Unavailable

1

BOLT,NYLOC,BLACK(10) Substituted by 7515432

7515493

Unavailable

2

SHAFT,MOUNTING

5010149

Unavailable

3

ARM,FR.TORQUE,BLK.

1540805-067

Unavailable

4

NUT-LOCK(10)

7542439

$1.49

4

NUT-LOCK(10)

7542439

$1.49

4

NUT-LOCK(10)

7542439

$1.49

5

BOLT(10)

7515415

$1.49

5

BOLT(10)

7515415

$1.49

5

BOLT(10)

7515415

$1.49

6

SHIELD-SPRING

5430671

$24.27

7

SHOCK,CTR.SUSP.

7041281

Unavailable

8

RETAINER-TOP

5220225

$10.39

9

SPRING-SHOCK SUSP

7041140

Unavailable

10

SPACER,SHOCK RETAINER(10)

5210953

$6.39

11

MACHINERY BUSHING(10)

7556301

$3.19

11

MACHINERY BUSHING(10)

7556301

$3.19

11

MACHINERY BUSHING(10)

7556301

$3.19

11

MACHINERY BUSHING(10)

7556301

$3.19

12

SPACER, OUTER

5332784

Unavailable

13

Asm., Bogie Wheel (See Pg. A25, Ref. 23)

-------

Unavailable

14

NUT-5/16-18 NYLOK-Y

7542324

$1.49

15

WASHER(10)

7555716

$1.59

15

WASHER(10)

7555716

$1.59

16

STRAP, LIMITER

5410397

Unavailable

17

BOLT(10)

7515307

$3.99
