COOLING SYSTEM 500 EFI 0942774 and EFI SKS 0942574 (4924982498015A)

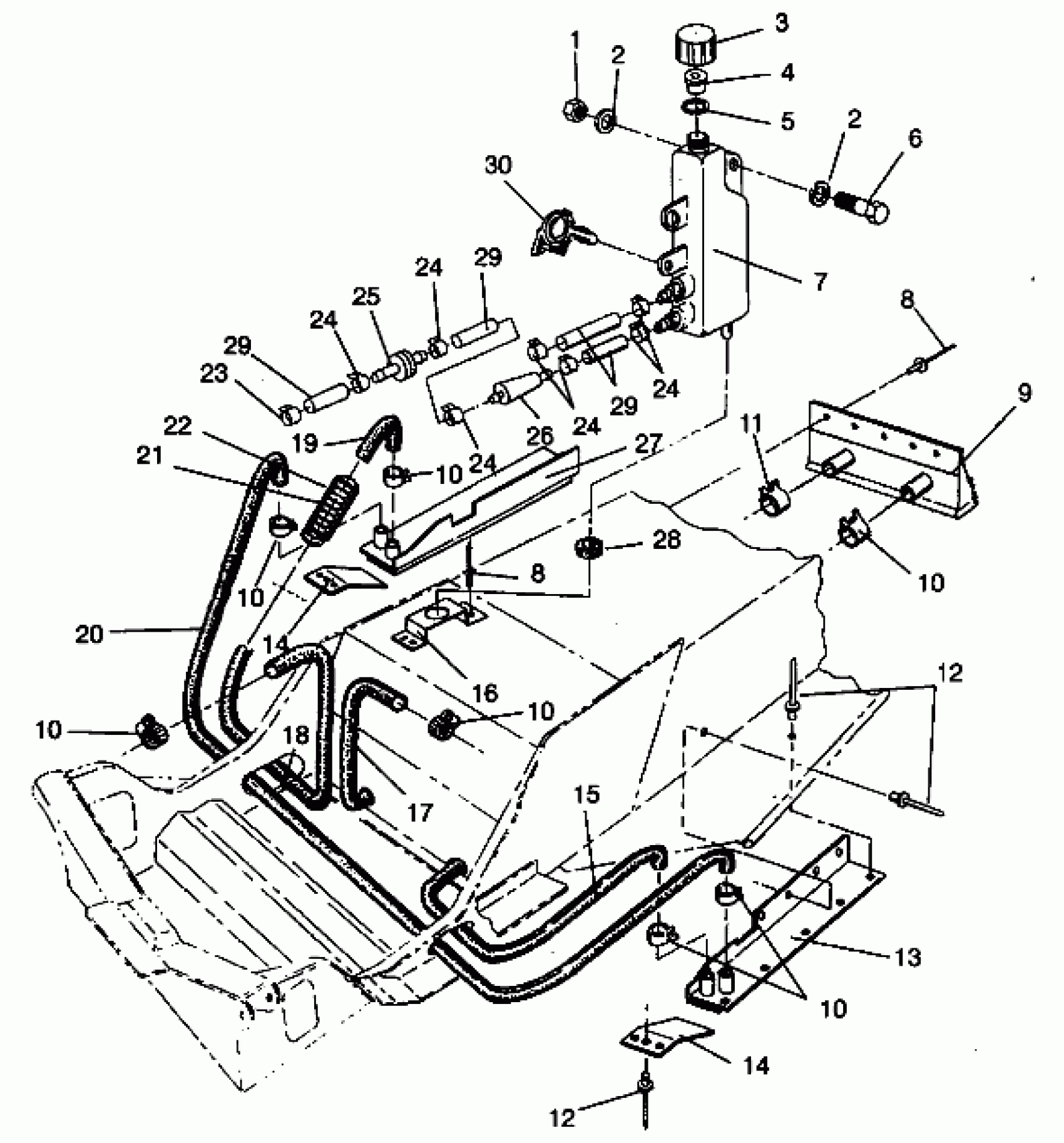

Polaris 500 EFI - 0942774 COOLING SYSTEM 500 EFI 0942774 and EFI SKS 0942574 (4924982498015A) Diagram
#
1
NUT-LOCK(10)
7542122
$1.49
2
WASHER,WROUGHT(10)
7558302
$1.59
2
WASHER,WROUGHT(10)
7558302
$1.59
3
CAP-OVER FLOW BOTTLE,DRILLED
5430743
$5.65
4
PLUG, OVERFLOW,(10)
5431096
$2.02
5
GASKET-OVERFLOW CAP
5810279
$2.41
6
BOLT(10)
7512240
$3.99
7
BOTTLE,O'FLOW,W/FITTING
5431733
$36.41
8
RIVET-3/16-.090-.290
7661637
$1.49
8
RIVET-3/16-.090-.290
7661637
$1.49
9
EXCHANGER WELD,CTR.
2511225
$204.76
10
CLAMP,WORM DRIVE
7080547
Unavailable
10
CLAMP,WORM DRIVE
7080547
Unavailable
10
CLAMP,WORM DRIVE
7080547
Unavailable
10
CLAMP,WORM DRIVE
7080547
Unavailable
10
CLAMP,WORM DRIVE
7080547
Unavailable
10
CLAMP,WORM DRIVE
7080547
Unavailable
11
CLAMP, HOSE(10) Substituted by 7080564
7080498
Unavailable
12
RIVET,INTERLOCK,B(50)
7661638
$1.49
12
RIVET,INTERLOCK,B(50)
7661638
$1.49
13
COOLING WELD,LH
2511223
$113.32
14
GUARD, COOL.EXT.
5222863
$32.99
14
GUARD, COOL.EXT.
5222863
$32.99
15
HOSE-CROSSOVER (Short)
5410350
Unavailable
16
BRACKET
5223985
Unavailable
17
HOSE,PUMP/CTR.EXT.
5410743
Unavailable
18
TRIM,EDGE,6FT,BLACK [No Longer Available]
5521131
Unavailable
19
HOSE,ENG/SIDE EXT.
5410738
Unavailable
20
HOSE,CROSSOVER
5410557
Unavailable
21
SPRING,HOSE RETAINER
7041079
$4.95
22
TUBING,CONVOL,1"X2.5"
5521242
Unavailable
23
CLAMP-HOSE(10)
7080134
Unavailable
24
CLAMP-HOSE, (LARGE GREEN) (Green)
7080307
$1.49
24
CLAMP-HOSE, (LARGE GREEN) (Green)
7080307
$1.49
24
CLAMP-HOSE, (LARGE GREEN) (Green)
7080307
$1.49
24
CLAMP-HOSE, (LARGE GREEN) (Green)
7080307
$1.49
24
CLAMP-HOSE, (LARGE GREEN) (Green)
7080307
$1.49
25
VALVE, CHECK
7052038
$10.51
26
FILTER,WATER LINE Substituted by 2530024
2530010
Unavailable
27
COOLING WELD,RH
2511224
Unavailable
28
GROMMET RUBBER
5410021
Unavailable
29
FUEL LINE,1/4 ID(1525 CM.)
8450003-1525
Unavailable
29
FUEL LINE,1/4 ID(1525 CM.)
8450003-1525
Unavailable
29
FUEL LINE,1/4 ID(1525 CM.)
8450003-1525
Unavailable
30
CLIP, PLASTIC(10)
4020139
$4.79
