TUNNEL ASSEMBLY 500 EFI/0930674 and 500 EFI SKS/0930574 (4922962296001A)

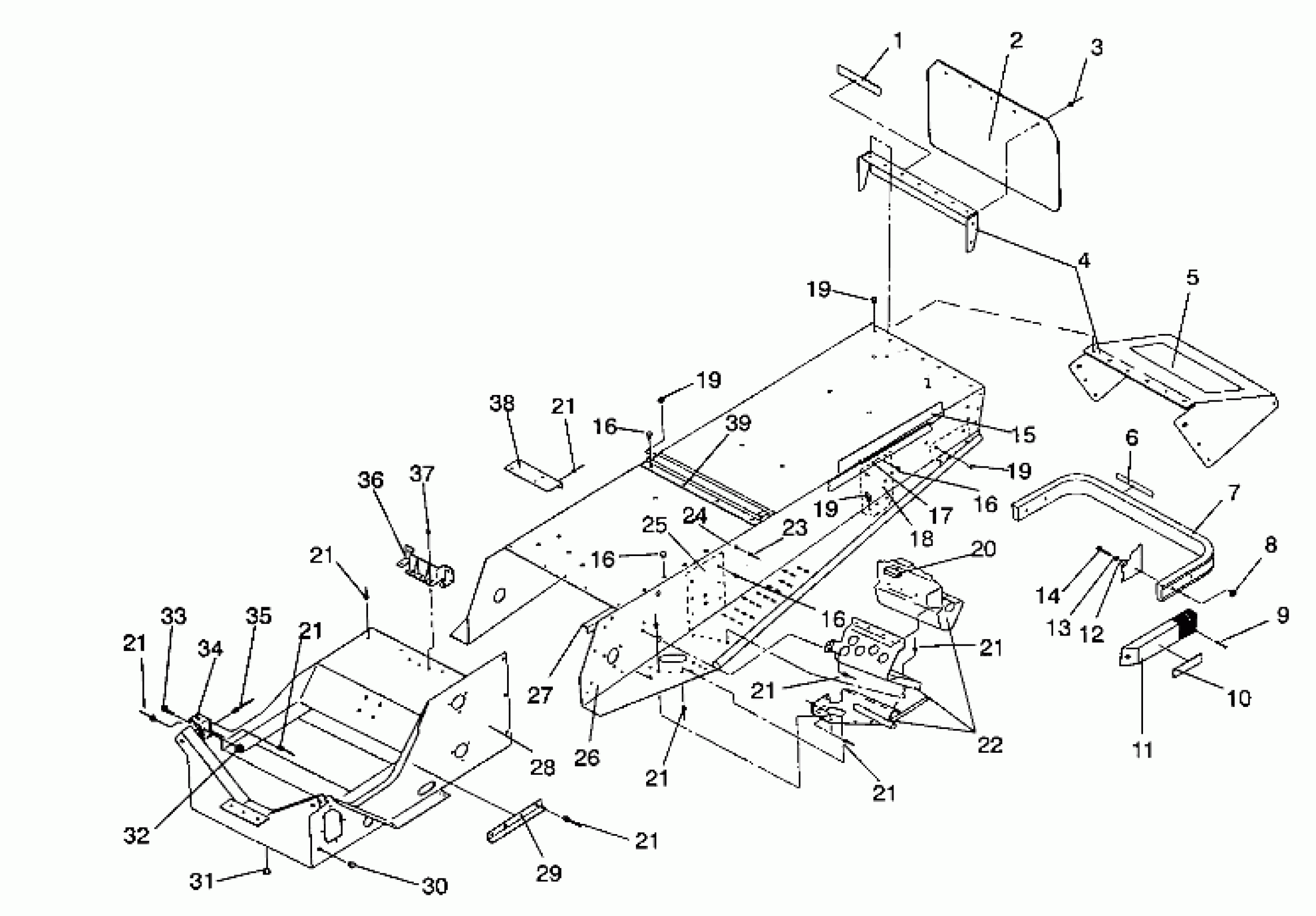

Polaris 500 EFI - 0930674 TUNNEL ASSEMBLY 500 EFI/0930674 and 500 EFI SKS/0930574 (4922962296001A) Diagram
#
1
DECAL,TRACK SEAT(BLK.) [No Longer Available]
7073038
Unavailable
2
FLAP,SNOW,(BLUE) Substituted by 5410394
5410554
$121.02
3
POP RIVET(50)
7621418
$1.49
4
PANEL,TUNNEL,BACK Substituted by 5220478-067 (EFI)
5220478
Unavailable
4
PANEL,R.CLOSE-OFF ASM. (SKS)
1011799
$32.95
5
DECAL,R.CLOSEOFF(500SKS) [No Longer Available] (SKS)
7073639
Unavailable
6
DECAL,R.BUMPER(500EFI) [No Longer Available]
7073630
Unavailable
7
BUMPER,REAR,BLK. (EFI)
5224334-067
Unavailable
7
BUMPER,R.SKS EFI (SKS)
5224349-067
Unavailable
8
NUT-LOCK(10)
7542122
$1.49
9
SCREW(10)
7511863
$1.99
10
REFLECTOR RED
2670070
$9.91
11
CAP, BUMPER, BLK.
5430930-070
Unavailable
12
WASHER(10)
7558301
$1.49
13
LOCK WASHER(10)
7552801
$1.59
14
BOLT(10)
7512240
$3.99
15
DECAL(47.5'')TUNNEL [No Longer Available]
7072078
Unavailable
16
RIVET,SEMI-TUBE,(50)
7661812
Unavailable
16
RIVET,SEMI-TUBE,(50)
7661812
Unavailable
16
RIVET,SEMI-TUBE,(50)
7661812
Unavailable
16
RIVET,SEMI-TUBE,(50)
7661812
Unavailable
17
DECAL,LH.TUNNEL(500EFI) [No Longer Available]
7073628
Unavailable
17
DECAL,RH.TUNNEL(500EFI) [No Longer Available]
7073629
Unavailable
18
BRKT,RH.REAR SUSP. (SKS)
1011906-067
Unavailable
18
BRKT,LH.REAR SUSP (SKS)
1011905-067
Unavailable
18
BRKT,RH,R.SUSP. (EFI)
1011858-067
Unavailable
18
BRKT,LH,R.SUSP (EFI)
1011857-067
Unavailable
19
RIVET Substituted by 7661829
7661828
Unavailable
19
RIVET Substituted by 7661829
7661828
Unavailable
19
RIVET Substituted by 7661829
7661828
Unavailable
19
RIVET Substituted by 7661829
7661828
Unavailable
20
EXTRUSION,CLUTCHGUARD
5521238
$6.46
21
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
21
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
21
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
21
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
21
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
21
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
21
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
21
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
21
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
22
FOOTREST ASM,LH
1011890
Unavailable
22
FOOTREST ASM, RH
1011891
$164.79
23
RIVET-POP 1/8(.063-.125)-ST-Z
7621222
$1.49
24
SNAP-MALE(10)
7080227
Unavailable
25
BRKT,F.SUSP.,BLK.
5211323-067
$29.99
26
TUNNEL, 500 EFI (EFI) (Incl. 4,18,25,27 & 39)
1011919
Unavailable
26
TUNNEL, 500 EFI (EFI)(Incl. 4,18,25,27 & 39)
1011919
Unavailable
26
TUNNEL,SILVER,STRT,LIQ.SKS (SKS) (Incl. 4,18,25,27 & 39)
1011921
Unavailable
26
TUNNEL,SILVER,STRT,LIQ.SKS (SKS)(Incl. 4,18,25,27 & 39)
1011921
Unavailable
27
BRACE,TUNNEL REINF.
5222412
Unavailable
28
BULKHEAD, (500 SPX) Substituted by 1011851-067
1011851
Unavailable
29
GUARD
5223789
Unavailable
30
PLUG, HOLE(10)
7080416
$5.65
31
PLUG-HOLE
7080398
$4.84
32
NUT LOCK(10)
7542321
$1.49
33
SCREW(10)
7512307
$3.99
34
SUPPORT,MUFFLER,BLK. Substituted by 5242798-067
1011831-067
Unavailable
35
RIVET(50)
7621452
$1.49
36
BRKT,GASTANK,WELD.
1011733-067
$19.73
37
RIVET(50)
7621301
$3.99
38
BRKT, TOOL BOX
5220973
Unavailable
39
BRKT,R.FUEL TANK,BLK.
5222375-067
$17.43
