STEERING ASSEMBLY 500 EFI / 0930674 and 500 EFI SKS / 0930574 (4922962296015A)

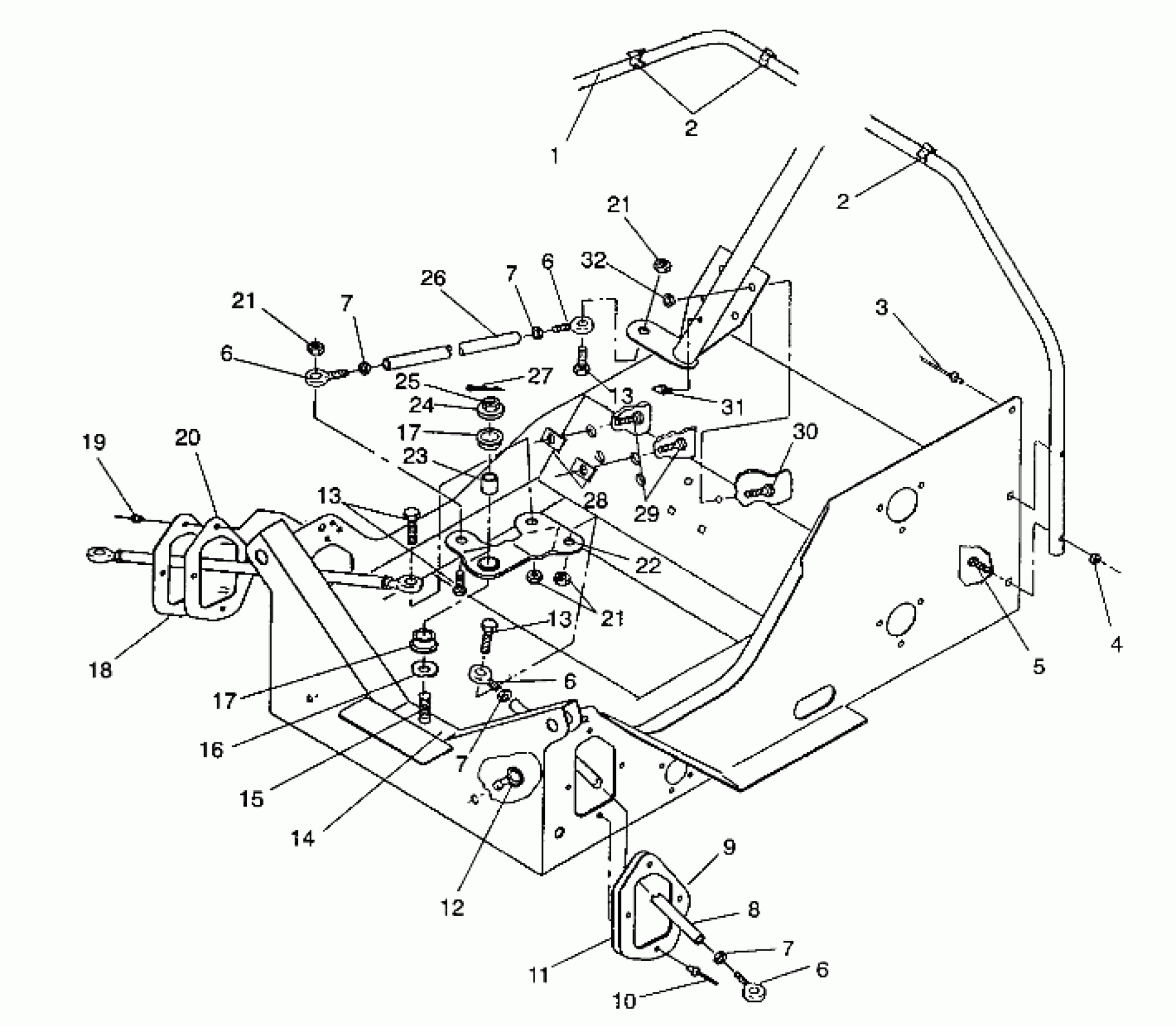

Polaris 500 EFI - 0930674 STEERING ASSEMBLY 500 EFI / 0930674 and 500 EFI SKS / 0930574 (4922962296015A) Diagram
#
1
HOOP,STEERING
1011513-067
Unavailable
2
CLIP(10)
7080278
$2.63
2
CLIP(10)
7080278
$2.63
3
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
4
NUT-LOCK(10)
7542122
$1.49
5
BOLT-CARRIAGE(10)
7512262
Unavailable
6
ROD END,LH Substituted by 7060164
7060124
$48.56
6
ROD END RH Substituted by 7060165
7060125
$48.56
6
ROD END,LH Substituted by 7060164
7060124
$48.56
6
ROD END RH Substituted by 7060165
7060125
$48.56
6
ROD END,LH Substituted by 7060164
7060124
$48.56
6
ROD END RH Substituted by 7060165
7060125
$48.56
6
ROD END,LH Substituted by 7060164
7060124
$48.56
6
ROD END RH Substituted by 7060165
7060125
$48.56
7
NUT HEX(10)
7542401
$2.39
7
NUT
7542424
$1.49
7
NUT HEX(10)
7542401
$2.39
7
NUT
7542424
$1.49
7
NUT HEX(10)
7542401
$2.39
7
NUT
7542424
$1.49
7
NUT HEX(10)
7542401
$2.39
7
NUT
7542424
$1.49
8
TIE ROD, BLACK (SKS)
5332713-067
Unavailable
8
ROD,TIE,BLACK (SKS)
5332713-067
Unavailable
8
TIEROD (EFI)
5020636-067
Unavailable
9
PLATE,LH,BOOTSEAL Substituted by 5210959-067
5210959
Unavailable
10
RIVET(50)
7621301
$3.99
11
BOOT , LH
5410388
Unavailable
12
CLIP, PLASTIC(10)
4020139
$4.79
13
BOLT(10)
7512404
$3.99
13
BOLT(10)
7512404
$3.99
13
BOLT(10)
7512404
$3.99
14
BLOCK, STEERING
5630375
Unavailable
15
BOLT(10)
7512658
Unavailable
16
WASHER,WAVE(10)
7555735
$3.99
17
BUSHING
3563907
$3.99
17
BUSHING
3563907
$3.99
18
PLATE,RH,BOOT SEAL
5210904
Unavailable
19
POP RIVET(50)
7621303
Unavailable
20
BOOT-TIE ROD
5410328
Unavailable
21
NUT LOCK(10)
7542403
$3.99
21
NUT LOCK(10)
7542403
$3.99
21
NUT LOCK(10)
7542403
$3.99
22
ARM,STEERING,CTR,BLK. (EFI)
1822093-067
$13.19
22
STRG.ARM,CTR,BLK. (SKS)
1822040-067
Unavailable
23
BUSHING-SPACER
5010161
Unavailable
24
WASHER(10)
7555721
$1.49
25
NUT(10)
7542712
$9.59
26
ROD-DRAG LINK
5332712
Unavailable
27
PIN COTTER(10)
7661203
$1.49
28
SPEED NUT(10)
7670021
$6.99
29
BOLT-CARRIAGE(10)
7512263
$3.99
30
BOLT(10) Substituted by 7512377
7512394
Unavailable
31
FITTING-LUBE.(10) Substituted by 7080561
7080220
$4.76
32
NUT-5/16-18 NYLOK-Y
7542324
$1.49
