SEAT and GAS TANK ASSEMBLY 500 EFI/0930674 and 500 EFI SKS/0930574 (4922962296002A)

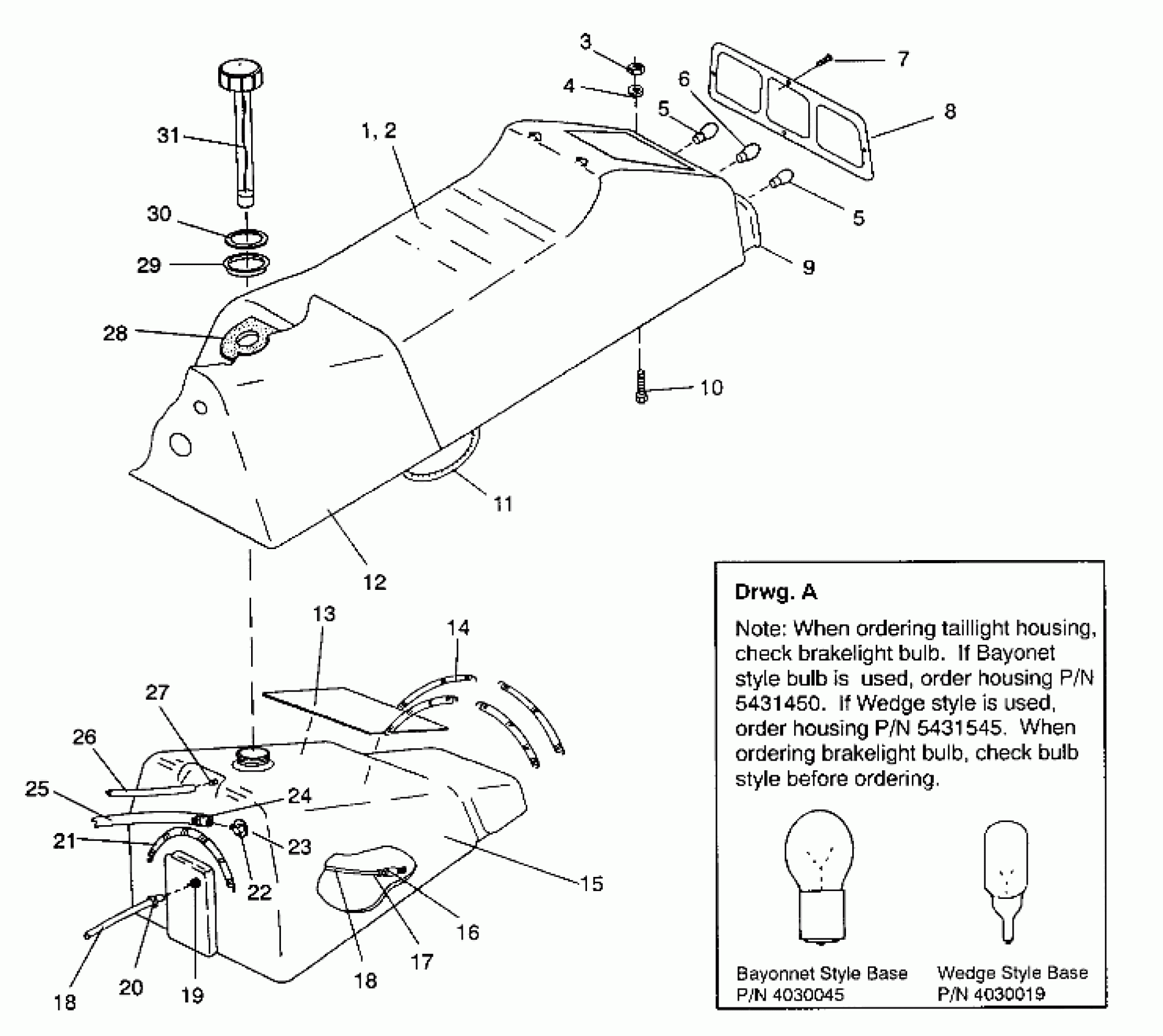

Polaris 500 EFI - 0930674 SEAT and GAS TANK ASSEMBLY 500 EFI/0930674 and 500 EFI SKS/0930574 (4922962296002A) Diagram
#
Description
Price
1
SEAT ASM,(93-500SKS) (SKS) (Incl. 2, 5-9,13 &14)
2681611
Unavailable
1
SEAT CUSHION ASM. (EFI) (Incl. 2, 5-9,13 & 14)
2681605
Unavailable
2
COVER,SEAT ASM. Substituted by 2200742 (EFI)
2681606
Unavailable
2
COVER,SEAT(93-500SKS) (SKS)
2681612
Unavailable
3
NUT-LOCK(10)
7542122
$1.49
4
WASHER(10)
7558221
$2.39
5
BULB,TAILLIGHT(10)
4030024
$4.84
5
BULB,TAILLIGHT(10)
4030024
$4.84
6
Bulb, Brakelight
4030045
Unavailable
7
SCREW(10)
7511840
Unavailable
8
LENS,TAILLIGHT
5430423
Unavailable
9
HOUSING,TAILLIGHT Substituted by 5433341 (See Drwg. A)
5431545
Unavailable
9
HOUSING, TAILLIGHT (See Drwg. A)
5431450
$19.83
10
BOLT(10)
7512103
$3.19
11
HARNESS,TAILLIGHT
2460370
$31.35
12
COVER,TANK ASM(93-500SP)
2681607
Unavailable
13
INSERT,TANKCOVER
5850098
Unavailable
14
SPRING, TANK
7042033
Unavailable
15
TANK,GAS, EFI (Incl.16-19, 27)
2511201
Unavailable
16
PICKUP,FUEL,W/STRAINER
7052081
Unavailable
17
RING, COMPRESSION(10)
7080402
$1.60
18
FUEL LINE-50FT.PKG. Substituted by 8450003-1525
2870563
Unavailable
18
FUEL LINE-50FT.PKG. Substituted by 8450003-1525
2870563
Unavailable
19
FITTING - OUTLET(10)
7052023
$24.99
20
CLAMP-HOSE, (LARGE GREEN) (Green)
7080307
$1.49
21
SPRING,TANK,(10)
7042020
$13.75
22
FITTING,TANK OUTLET(5/16)
7052059
Unavailable
23
GROMMET-TANK FITTING(10)
7052028
$6.39
24
CLAMP, HOSE
7080490
Unavailable
25
FUEL LINE Substituted by 8450045-153
8450045
Unavailable
26
LINE,VENT,(38.0'') Substituted by 8360009-600
5521087
Unavailable
27
FITTING,(10)
7052077
$6.39
28
FOAM, FILLER
5810201
Unavailable
29
GROMMET
5410644
Unavailable
30
GASKET, GAS CAP
5810513
$8.89
31
CAP,GAS Substituted by 2511198
2511197
Unavailable
