OIL TANK / AIR BOX ASSEMBLY 500 EFI / 0930674 and 500 EFI SKS / 0930574 (4922962296027A)

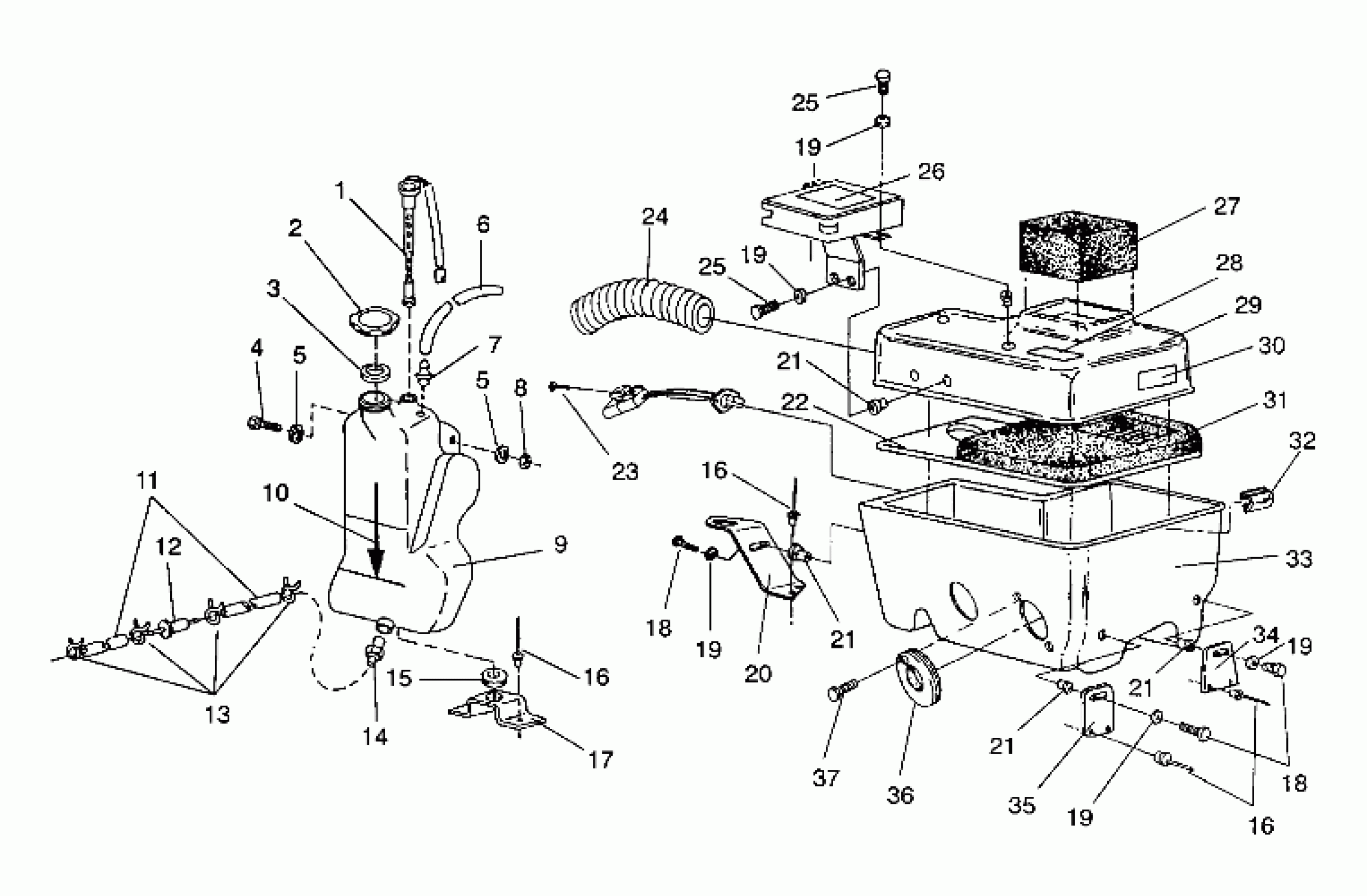

Polaris 500 EFI - 0930674 OIL TANK / AIR BOX ASSEMBLY 500 EFI / 0930674 and 500 EFI SKS / 0930574 (4922962296027A) Diagram
#
1
SENSOR,OIL LEVEL,W/CONN. Substituted by 4040040
4040016
$72.84
1
SENSOR,OIL LEVEL,W/CONN. Substituted by 4040040
4040016
$72.84
2
CAP,OIL TANK
5430779
$14.56
3
GASKET-OIL CAP
5810141
$2.39
4
BOLT(10)
7512240
$3.99
5
WASHER,WROUGHT(10)
7558302
$1.59
5
WASHER,WROUGHT(10)
7558302
$1.59
6
KIT-TANK VENT
2200190
Unavailable
7
FITTING,(10)
7052077
$6.39
8
Nut, Nylok
7542122
$1.49
9
TANK, OIL
5430997
Unavailable
10
DECAL, OIL LEVEL [No Longer Available]
7072160
Unavailable
12
FILTER,SMALL,IN-LINE,(10)
2530009
$5.65
13
CLAMP-HOSE, (LARGE GREEN)
7080307
$1.49
14
FITTING, OUTLET
7052042
$8.99
15
GROMMET RUBBER
5410021
Unavailable
16
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
16
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
16
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
17
BRACKET
5223985
Unavailable
18
SCREW(10)
7512279
$1.49
18
SCREW(10)
7512279
$1.49
19
WASHER-1/4X1/2X.025 EXT TTH-Y
7552604
$1.59
19
WASHER-1/4X1/2X.025 EXT TTH-Y
7552604
$1.59
19
WASHER-1/4X1/2X.025 EXT TTH-Y
7552604
$1.59
19
WASHER-1/4X1/2X.025 EXT TTH-Y
7552604
$1.59
19
WASHER-1/4X1/2X.025 EXT TTH-Y
7552604
$1.59
20
BRKT,AIR SILENCER
5222617-067
Unavailable
21
NUT-WELL(10)
7541923
$5.59
21
NUT-WELL(10)
7541923
$5.59
21
NUT-WELL(10)
7541923
$5.59
21
NUT-WELL(10)
7541923
$5.59
22
PLATE,AIR SILENCER
5850075
$24.27
23
BOLT(10) Substituted by 7527815
7511871
Unavailable
24
HOSE-INLET
5410251
Unavailable
25
BOLT(10)
7512261
$4.99
25
BOLT(10)
7512261
$4.99
26
DECAL,EFI COVER [No Longer Available]
7072909
Unavailable
27
INTAKE ASM, FOAM
1253107
$36.41
28
DECAL,FOAM,CAUTION [No Longer Available]
7072907
Unavailable
29
COVER,SILENCER,DRILLED
5431291
Unavailable
30
DECAL, GREASING [No Longer Available]
7073426
$7.27
31
BAFFLE ASM.
1253104
Unavailable
32
CLIP, AIR BOX,(10)
7670055
$7.99
33
SILENCER,INTAKE,DRILLED Substituted by 5432310
5431290
Unavailable
34
BRACKET, SILENCER
5211274
$9.70
35
BRKT,FRT.SILENCER
5211296-067
$4.38
36
BOOT, RELIEVED
5410585
Unavailable
37
SCREW,SELF-TAP(10)
7522004
Unavailable
