NOSEPAN 500 EFI/0930674 and 500 EFI SKS/0930574 (4922962296003A)

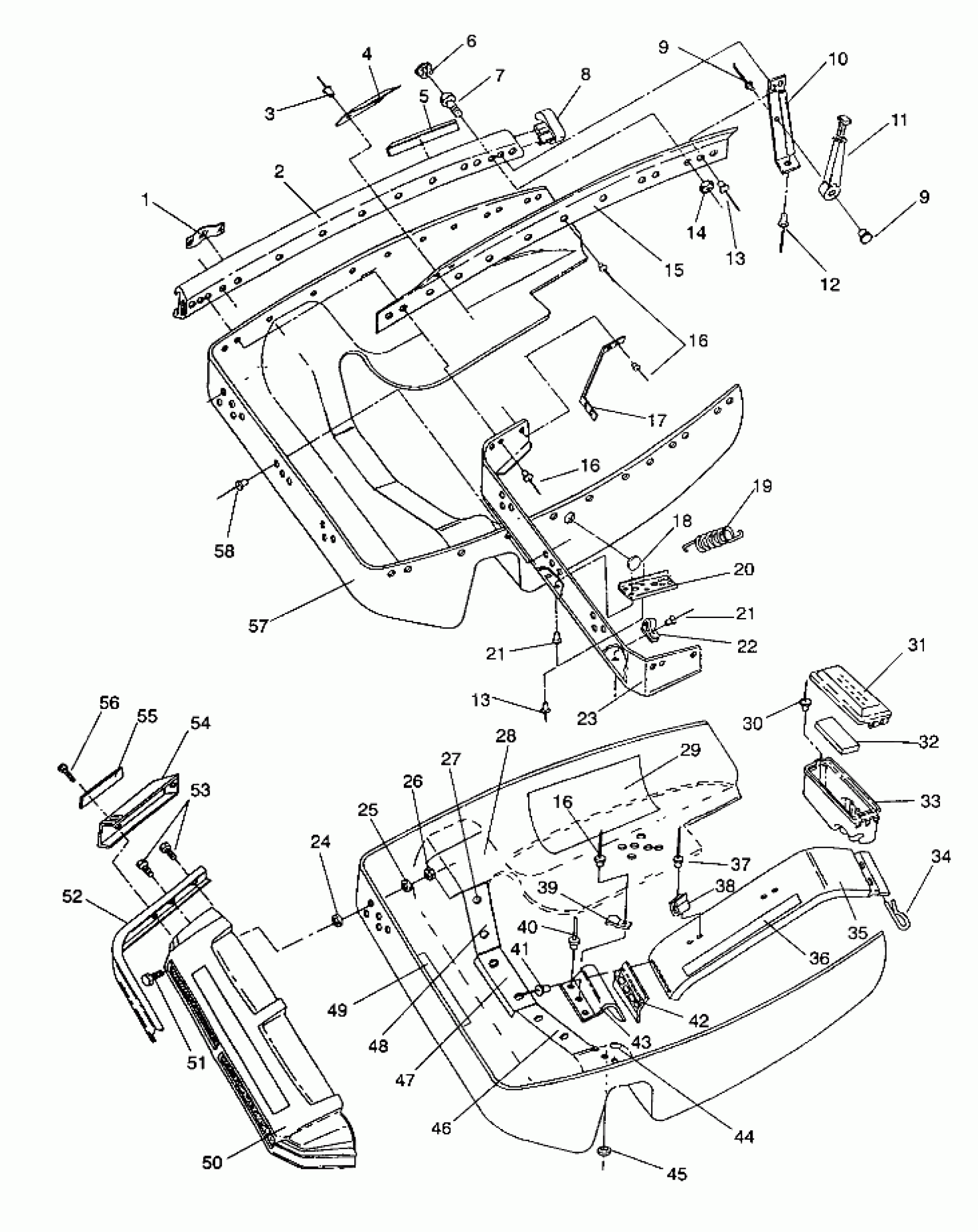

Polaris 500 EFI - 0930674 NOSEPAN 500 EFI/0930674 and 500 EFI SKS/0930574 (4922962296003A) Diagram
#
1
DECAL,RH.SIDE EXT.(440L/C) [No Longer Available]
7073508
Unavailable
1
DECAL,LH.SIDE EXT.(440L/C) [No Longer Available]
7073507
Unavailable
2
BUMPER,LH EXT. Substituted by 2670151-067 (Incl. 8)
2670114
Unavailable
2
BUMPER,RH EXT. Substituted by 2670152-067 (Incl. 8)
2670115
Unavailable
3
RIVET(50)
7621318
$1.49
4
GUIDE, HOOD
5220984
Unavailable
5
REFLECTOR AMBER
2670071
Unavailable
6
PLUG, HOLE(10)
7080416
$5.65
7
BOLT(10)
7512296
Unavailable
7
BOLT(10)
7512296
Unavailable
8
CAP,BUMPER,LH
5431083
Unavailable
8
CAP,BUMPER,RH
5431084
$1.67
9
RIVET,(50)
7621601
Unavailable
9
RIVET,(50)
7621601
Unavailable
10
BRACE,PAN,RH
5220523-067
$94.99
10
BRACE,PAN,LH
5220522-067
$94.99
11
STRAP, HOOD LATCH
5410370
$24.27
12
RIVET,3/16X.402(50)
7621432
$1.49
13
RIVET(50)
7621452
$1.49
13
RIVET(50)
7621452
$1.49
14
NUT, LOCK(10)
7542103
$5.59
15
GUIDE-HOOD LH
5510133
$19.83
15
GUIDE,HOOD RH
5510134
$20.63
16
POP RIVET(50)
7621402
$1.49
16
POP RIVET(50)
7621402
$1.49
16
POP RIVET(50)
7621402
$1.49
18
PLUG
5410344
$5.65
19
SPRING,HOOD CABLE
7041202
Unavailable
20
BRACE, PAN
5223996
Unavailable
21
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
21
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
22
CLAMP, RETAINER(10)
7080372
$3.99
23
BRACE, HINGE
5220951
$56.99
24
CAP, TOWER
5020517
$16.49
25
WASHER(10)
7558301
$1.49
26
NUT-LOCK(10)
7542122
$1.49
27
RIVET, BLIND(50)
7621467
$1.49
28
TAPE,FOIL,PAN#6 Substituted by 5811723
5810496
Unavailable
29
TAPE, FOIL(11X12)
5810465
$12.30
30
RIVET(50)
7621332
$1.49
31
COVER,TOOL BOX
5430719
$28.32
32
FOAM - TOOL BOX
5810266
Unavailable
33
BOX-TOOL
5430716
$11.99
34
PIN,RETAINING,(10)
7080216
$9.70
35
GUARD,CLUTCH Substituted by 5240965
5230118
Unavailable
36
DECAL,ENG/CLUTCH [No Longer Available]
7072871
Unavailable
37
RIVET(50)
7621429
$1.49
38
CLIP,BELT RETAINER
5222769
$8.79
39
CLIP, WIRING,(10) Substituted by 7080665
4020035
Unavailable
40
RIVET(50)
7621435
$1.49
41
RIVET, POP(50)
7621330
$1.49
42
HINGE
5210728
Unavailable
43
BRACKET, HINGE Substituted by 5241437
5220406
Unavailable
44
POP RIVET(50)
7621418
$1.49
45
WASHER,13/64X1/2X18GA,FL-Y
7558212
$1.49
46
TAPE,FOIL,PAN#4
5810494
Unavailable
47
TAPE,FOIL,PAN#5
5810495
$5.65
48
TAPE,FOIL,PAN#3
5810493
Unavailable
49
TAPE, FOIL,(5X12)
5810466
Unavailable
50
NOSECONE,SAPPHIRE BLK.
5430931-1031
Unavailable
51
SCREW(10)
7512279
$1.49
52
BUMPER, FRONT Substituted by 5224517-067
5224333-067
$154.99
53
SCREW(10)
7512102
$3.19
54
CAP, BUMPER, BLK.
5430930-070
Unavailable
55
EMBLEM'POLARIS'SILVER
5430979-092
Unavailable
56
SCREW(10)
7511863
$1.99
57
NOSEPAN,BLK,BLOW-MOLDED Substituted by 5410728-067
5410681-070
Unavailable
58
BLIND RIVET(50)
7621403
$1.49
