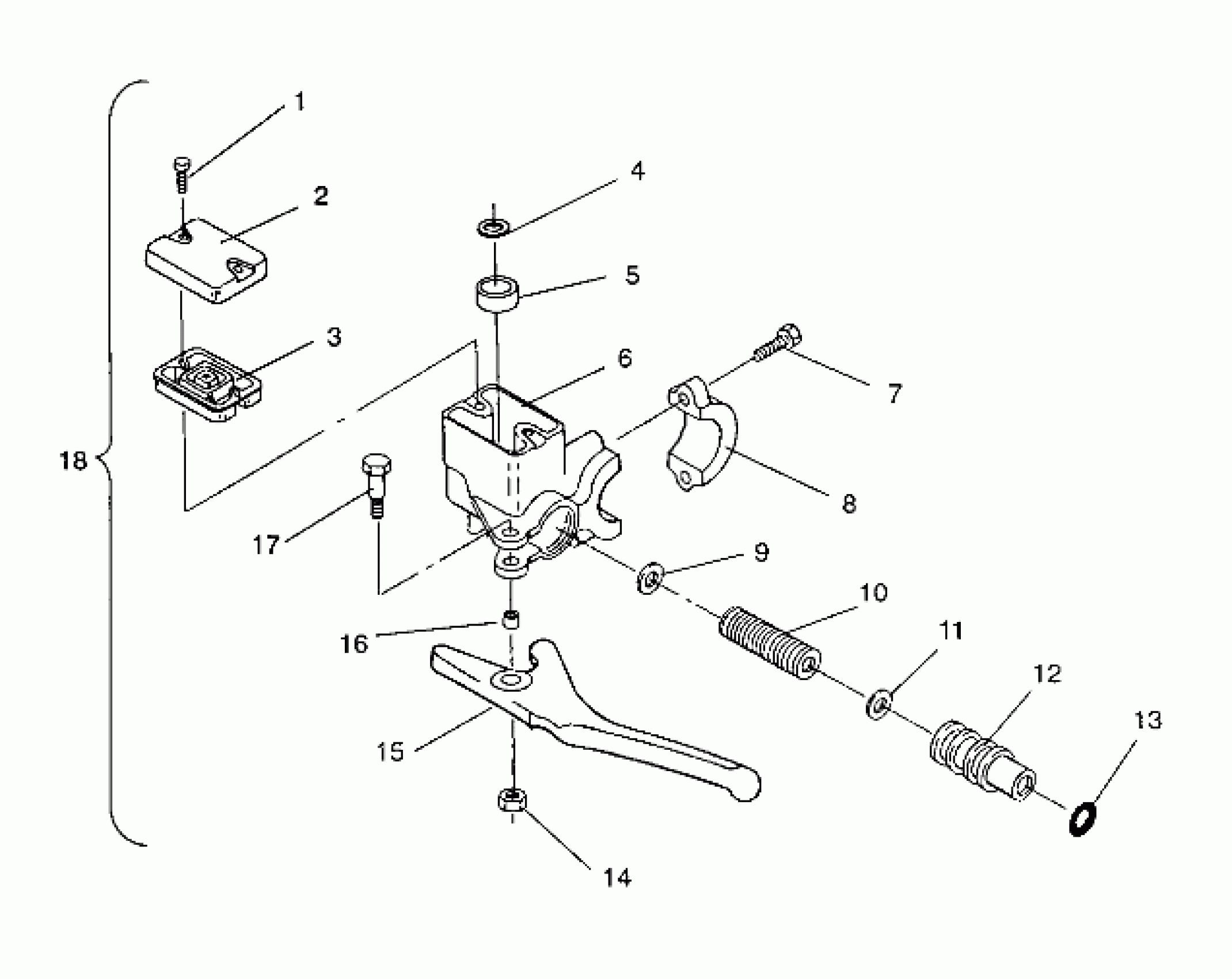

Polaris 500 EFI - 0930674 MASTER CYLINDER ASSEMBLY 500 EFI/0930674 and 500 EFI SKS/0930574 (4922962296010A) Diagram

#

Description
Price

1

SCREW,W/WASHER(10)

7512050

$3.99

2

COVER,MASTER CYL.

5630338

Unavailable

3

GASKET,MASTER CYL.

5410527

$8.99

4

WASHER, BAFFLE(10)

1930662

Unavailable

5

BAFFLE,MASTER CYL.

1930673

Unavailable

6

HSG.,MASTER CYL. Substituted by 2050056

5130912

Unavailable

7

BOLT,SOCKET HEAD(10)

7512290

$4.79

8

CLAMP, MASTER CYL.

5630342

Unavailable

9

WASHER(10)

7555708

$3.99

10

SPRING,COMPRESSION,(10)

7041203

$33.87

11

U PACKING SEAL

5410164

Unavailable

12

PISTON, MASTER CYL.

5020520

Unavailable

13

O RING

5410163

$1.60

14

NUT(10)

7542124

Unavailable

15

LEVER, BRAKE

5630409

Unavailable

16

BUSHING,BRAKE LEVER

5332931

Unavailable

17

BOLT,BRAKE LEVER(10)

7512287

Unavailable

18

MASTER CYL.ASM,(SNOW) (Incl. 1 - 17)

2050056

Unavailable
