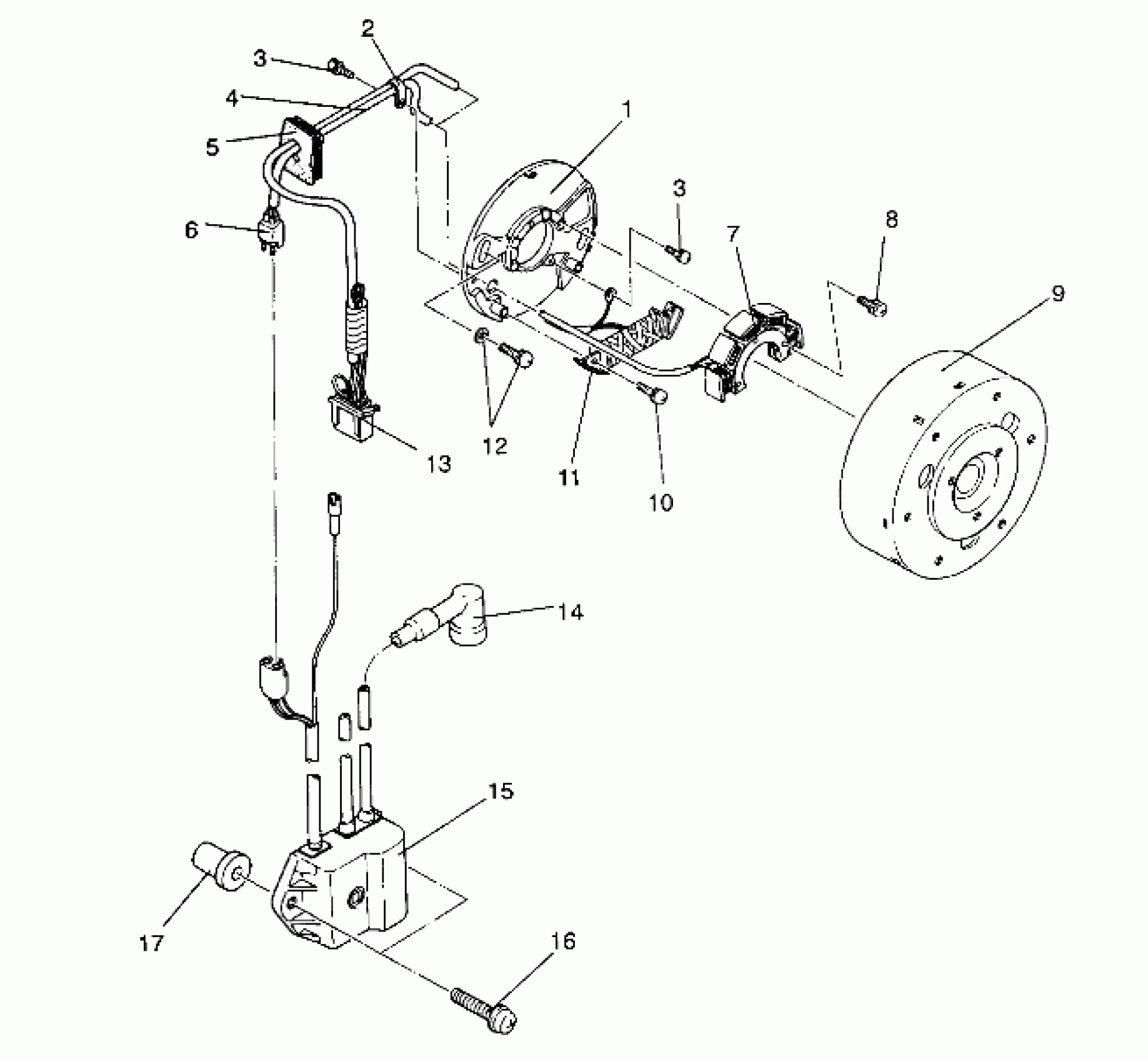

Polaris 500 EFI - 0930674 MAGNETO ASSEMBLY 500 EFI/0930674 and 500 EFI SKS/0930574 (4922962296036A) Diagram

#

Description
Price

1

Plate, Coil

3083987

$364.99

1

PLATE ASM. (Incl. 1-8, 10, 11 & 13)

3084361

Unavailable

2

Clamp

3081296

Unavailable

3

SCREW&WASHER,(10)

3081260

$3.19

3

SCREW&WASHER,(10)

3081260

$3.19

4

HARNESS, WIRE (Incl. 5)

3084362

Unavailable

5

Grommet

3082969

Unavailable

6

COUPLER

3083909

$23.99

7

STATOR

3084349

Unavailable

8

SCREW(10)

3082365

$3.19

9

FLYWHEEL

3084358

Unavailable

10

SCREW & WASHER

3083423

$3.19

11

Coil, Exciter

3083984

$89.03

12

SCREW&WASHER,(10)

3082175

Unavailable

13

COUPLER,MALE

3081513

$19.99

14

CAP SPARK PLUG,(10)

4020129

$9.70

15

COIL, IGNITION

3084288

Unavailable

16

SCREW&WASHER,(10)

3083784

$2.39

17

NUT-RUBBER

3083240

Unavailable
