ENGINE MOUNTING 500 EFI / 0930674 and 500 EFI SKS / 0930574 (4922962296025A)

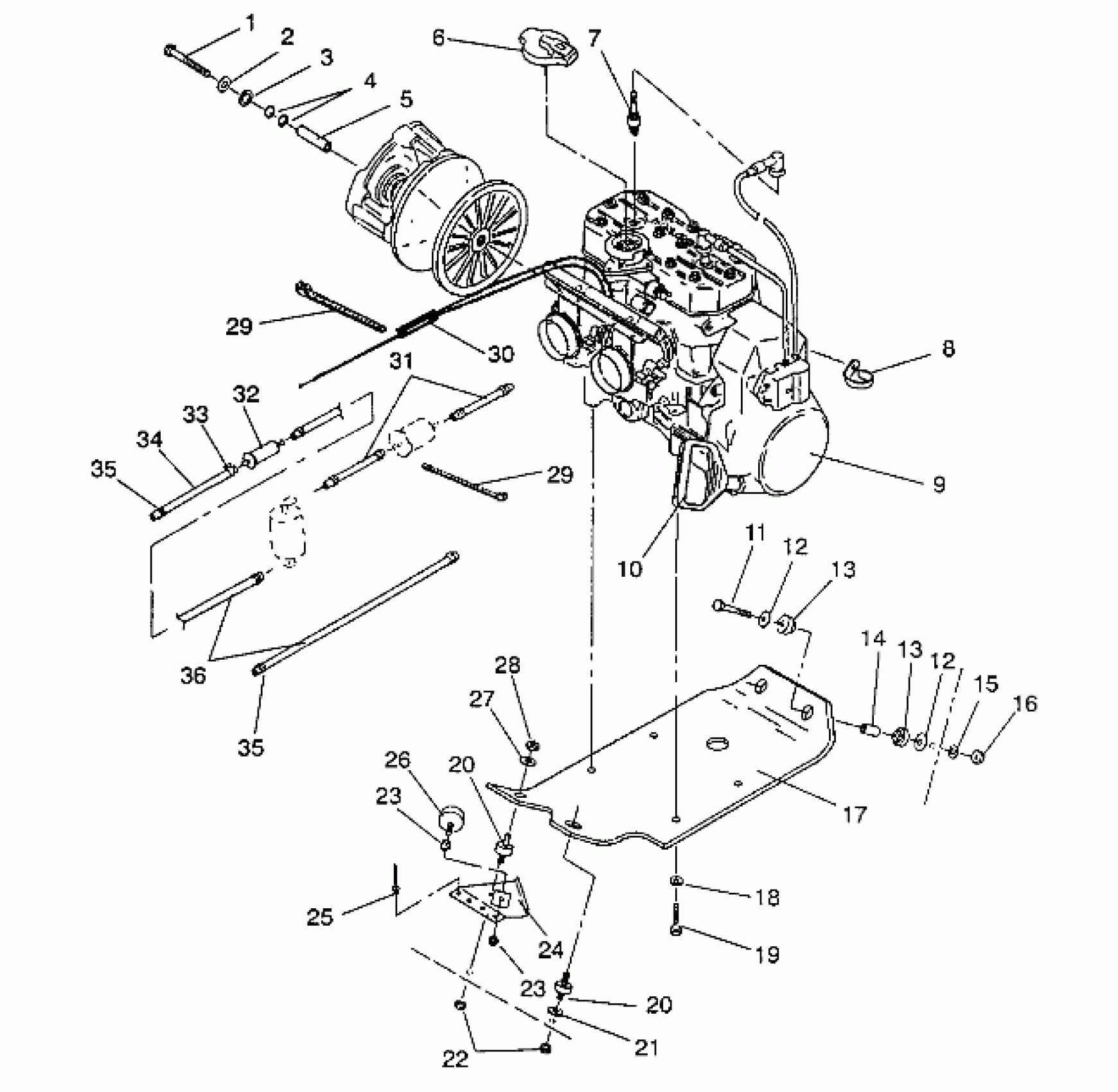

Polaris 500 EFI - 0930674 ENGINE MOUNTING 500 EFI / 0930674 and 500 EFI SKS / 0930574 (4922962296025A) Diagram
#
1
BOLT(10)
7512565
$19.99
2
WASHER-7/16-INT LK-(1222)-Z
7575202
$4.79
3
WASHER,CLUTCH RETAIN.
5010287
$12.99
4
O RING,(10)
5410507
$1.49
5
SPACER,CLUTCH BOLT
5020513
$44.99
6
CAP, PRESSURE
2511155
Unavailable
7
SPARKPLUG, RN3C(8)
3070166
$3.99
8
ENG.EC50PL-07 [No Longer Available]
1211524
Unavailable
9
CLAMP(10) Substituted by 7080573
7080347
Unavailable
10
HANDLE-RECOIL
5430520
Unavailable
11
SCREW(10)
7512530
$5.59
12
WASHER(10)
7555740
$1.59
12
WASHER(10)
7555740
$1.59
13
MOUNT, ENGINE
5410390
Unavailable
13
MOUNT, ENGINE
5410390
Unavailable
14
SPACER, (MTR.MT.)
5332778
Unavailable
15
WASHER(10)
7555817
Unavailable
16
NUT, LOCK,(10)
7542503
$10.39
17
PLATE,ENG.MT.
5222169
Unavailable
18
WASHER LOCK(10)
7553101
$3.99
19
BOLT(10)
7512539
$3.99
20
MOUNT
3110022
Unavailable
20
MOUNT
3110022
Unavailable
21
WASHER(10)
7555721
$1.49
22
NUT LOCK(10)
7542411
$3.19
23
NUT, JAM(10)
7542432
$3.99
23
NUT, JAM(10)
7542432
$3.99
24
BRACKET,TORQUE LIMITER Substituted by 1012048-067
1011741-067
$38.71
25
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
26
STOP
3110023
Unavailable
27
WASHER(10) Substituted by 7555806
7555720
$0.79
28
NUT-LOCK(10)
7542439
$1.49
29
CABLE-TIE,DIA12-50MM,WTHR-RES.
7080138
$2.41
29
CABLE-TIE,DIA12-50MM,WTHR-RES.
7080138
$2.41
30
CABLE,THROTTLE Substituted by 7080555
7080403
Unavailable
31
FUEL LINE,(HI-PRESS.) Substituted by 8450044-153
8450044
Unavailable
32
FILTER FUEL,(10)
2530008
$4.84
33
HOSE CLAMP, RED
7080003
$1.49
34
GOODYEAR,1/4"SAE#30R7 Substituted by 5521132
8450040
Unavailable
35
CLAMP,HOSE(SCREW TYPE)
7080417
$9.59
35
CLAMP,HOSE(SCREW TYPE)
7080417
$9.59
36
FUEL LINE Substituted by 8450045-153
8450045
Unavailable
