CYLINDER ASSEMBLY 500 EFI / 0930674 and 500 EFI SKS / 0930574 (4922962296030A)

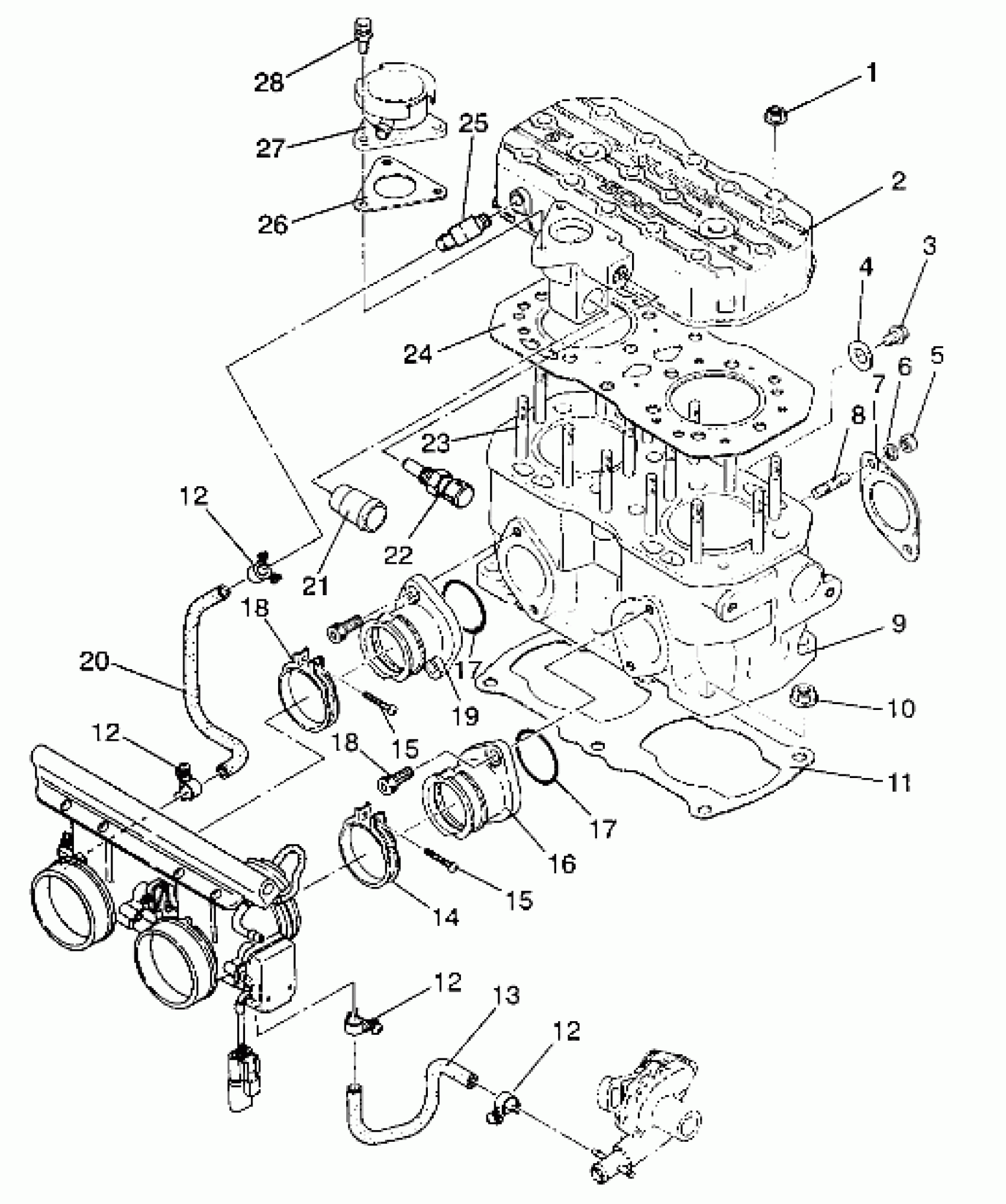

Polaris 500 EFI - 0930674 CYLINDER ASSEMBLY 500 EFI / 0930674 and 500 EFI SKS / 0930574 (4922962296030A) Diagram
#
Description
Price
1
NUT-FLANGE(10)
3082910
$2.39
2
HEAD, CYL.,CPL. (Incl. 21)
3084331
$329.99
3
PLUG Substituted by 3084491
3083044
Unavailable
4
GASKET-ALUM Substituted by 3084492
3082719
Unavailable
5
NUT(10)
3080285
Unavailable
6
WASHER LOCK ,(10)
3080530
$3.19
7
GASKET, EXHAUST
3083770
Unavailable
8
STUD (10)
3080016
$5.75
9
CYLINDER, CPL. (Incl. 8, 23)
3084330
$629.99
10
NUT-FLANGE(10)
3082911
$1.99
11
GASKET, BASE Substituted by 3084768
3083959
$64.99
12
CLAMP
3084051
Unavailable
12
CLAMP
3084051
Unavailable
12
CLAMP
3084051
Unavailable
12
CLAMP
3084051
Unavailable
13
HOSE 2, WATER
3084338
Unavailable
14
BAND ASM. (Incl. 15)
3084045
Unavailable
15
SCREW,(10)
3081497
$2.39
15
SCREW,(10)
3081497
$2.39
16
ADAPTER,CPL. RH
3084335
Unavailable
17
O-RING Substituted by 3085619
3084272
Unavailable
17
O-RING Substituted by 3085619
3084272
Unavailable
18
Bolt, Allen
3081330
$3.99
18
Bolt, Allen
3081330
$3.99
19
ADAPTER,CPL, LH
3084334
Unavailable
20
HOSE 1,WATER
3084337
Unavailable
21
Pipe, Water
3083452
Unavailable
22
SENSOR,WATER TEMP. Substituted by 3086138
3084333
Unavailable
23
STUD
3083360
Unavailable
24
GASKET, HEAD
3084332
Unavailable
25
PIPE, HEAD
3084390
Unavailable
26
GASKET, FILLER NECK
3083340
Unavailable
27
NECK, FILLER
3083398
Unavailable
28
BOLT&WASHER ASM.
3083361
Unavailable
