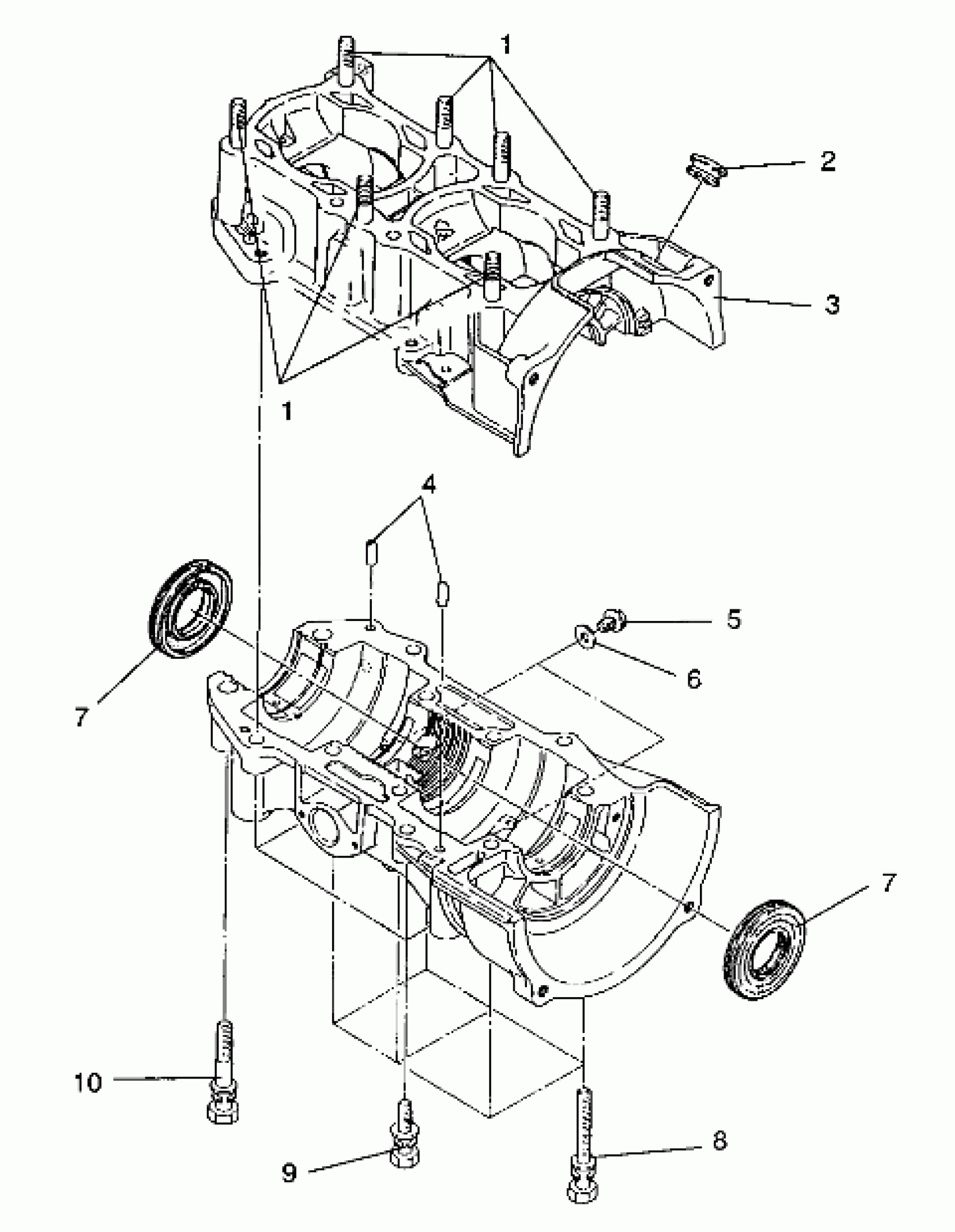

Polaris 500 EFI - 0930674 CRANKCASE ASSEMBLY 500 EFI/0930674 and 500 EFI SKS/0930574 (4922962296029A) Diagram

STUD Substituted by 3084119

3080745

Unavailable

STUD Substituted by 3084119

3080745

Unavailable

GROMMET

3082875

$7.99

CRANKCASE ASM. Substituted by 3084609 (Incl. 1-4, 8-10)

3083793

Unavailable

PIN,DOWEL(10) Substituted by 3080103

3083054

Unavailable

BOLT, FLANGE(10) Substituted by 3087035

3083568

$3.85

GASKET, ALUM,(10) Substituted by 7555998

3082758

$1.19

SEAL, OIL(10)

3083045

$36.41

SEAL, OIL(10)

3083045

$36.41

BOLT W/WASHER

3080739

$6.39

BOLT&WASHER

3083078

Unavailable

BOLT&WASHER ASM.

3084220

$8.79
