TUNNEL ASSEMBLY 500 CARB 0952764 (4929192919A006)

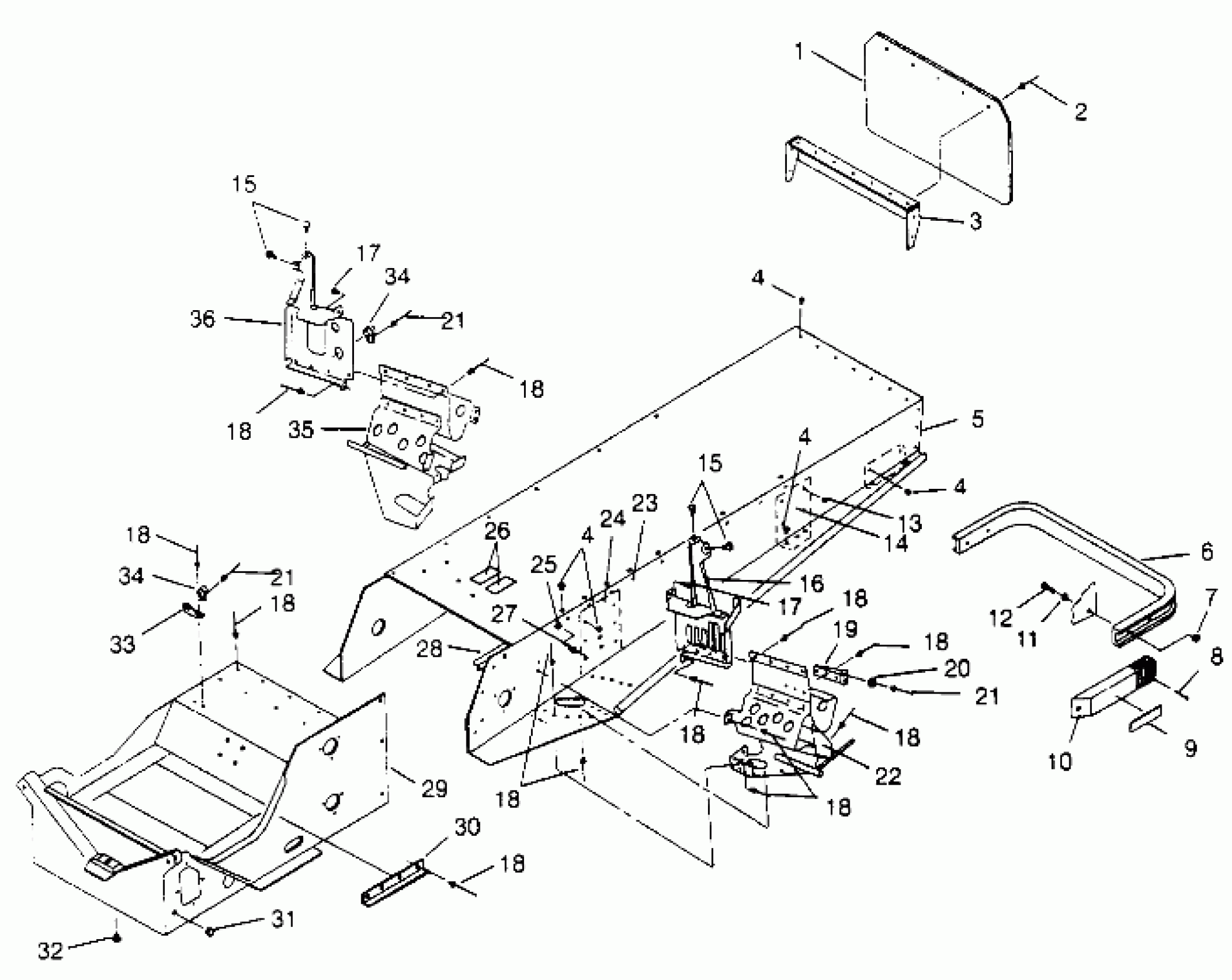

Polaris 500 CARB - 0952764 TUNNEL ASSEMBLY 500 CARB 0952764 (4929192919A006) Diagram
#
1
FLAP, SNOW,SILVER Substituted by 5410394-1106
5410394
$121.02
2
POP RIVET(50)
7621418
$1.49
3
PANEL,TUNNEL-BACK,BLK.
5240599-067
Unavailable
4
RIVET,SEMI-TUBE,(50)
7661841
$1.49
4
RIVET,SEMI-TUBE,(50)
7661841
$1.49
4
RIVET,SEMI-TUBE,(50)
7661841
$1.49
4
RIVET,SEMI-TUBE,(50)
7661841
$1.49
5
TUNNEL ASM,BLK,'LIQ'
1012085
$366.65
6
BUMPER,REAR,BLK.
5224334-067
Unavailable
7
NUT-LOCK(10)
7542122
$1.49
8
SCREW(10)
7511863
$1.99
9
REFLECTOR RED
2670070
$9.91
10
CAP, BUMPER, BLK.
5430930-070
Unavailable
11
WASHER(10)
7558301
$1.49
12
BOLT(10)
7512240
$3.99
13
RIVET,SEMI-TUBE,(50)
7661840
Unavailable
14
BRKT,RH,R.SUSP.
1011858-067
Unavailable
14
BRKT,LH,R.SUSP
1011857-067
Unavailable
15
BUMPER,HOOD
5410768
$2.95
15
BUMPER,HOOD
5410768
$2.95
16
MT,CONSOLE,LH
1011951-067
$35.51
17
SCREW(10)
7512057
$2.38
17
SCREW(10)
7512057
$2.38
18
RIVET,INTERLOCK,B(50)
7661638
$1.49
18
RIVET,INTERLOCK,B(50)
7661638
$1.49
18
RIVET,INTERLOCK,B(50)
7661638
$1.49
18
RIVET,INTERLOCK,B(50)
7661638
$1.49
18
RIVET,INTERLOCK,B(50)
7661638
$1.49
18
RIVET,INTERLOCK,B(50)
7661638
$1.49
18
RIVET,INTERLOCK,B(50)
7661638
$1.49
18
RIVET,INTERLOCK,B(50)
7661638
$1.49
18
RIVET,INTERLOCK,B(50)
7661638
$1.49
18
RIVET,INTERLOCK,B(50)
7661638
$1.49
18
RIVET,INTERLOCK,B(50)
7661638
$1.49
19
SUPPORT,BUMPERSIDE,BLK.
5240294-067
Unavailable
20
STOP, BUMPER
5410826
Unavailable
21
RIVET,3/16X.402(50)
7621432
$1.49
21
RIVET,3/16X.402(50)
7621432
$1.49
21
RIVET,3/16X.402(50)
7621432
$1.49
22
FOOTREST ASM,LH,BLK. Substituted by 1012544
1011934
Unavailable
23
NUT,SERT(10)
7541938
Unavailable
24
BRKT,F.SUSP.,BLK.
5211323-067
$29.99
25
SNAP-MALE(10)
7080227
Unavailable
26
DECAL,TOP,TUNNEL STRIP
7073978
Unavailable
27
RIVET-POP 1/8(.063-.125)-ST-Z
7621222
$1.49
28
BRACE,REINF.TUNNEL
5240242
Unavailable
29
BULKHEAD,BLK.
1012257-067
$396.83
30
GUARD,ADAPTER GUIDE
5222857
$12.94
31
PLUG, HOLE(10)
7080416
$5.65
32
PLUG-HOLE
7080398
$4.84
33
BRKT,ROPE GUIDE,BLK.
5222687-067
$59.99
34
GUIDE, RECOIL
5431385
$10.51
34
GUIDE, RECOIL
5431385
$10.51
35
FOOTREST ASM,RH,BLK. Substituted by 1012545
1011935
Unavailable
36
MT,CONSOLE,RH
1011952-067
$339.99
