SUSPENSION ASSEMBLY 500 CARB 0952764 (4929192919B009)

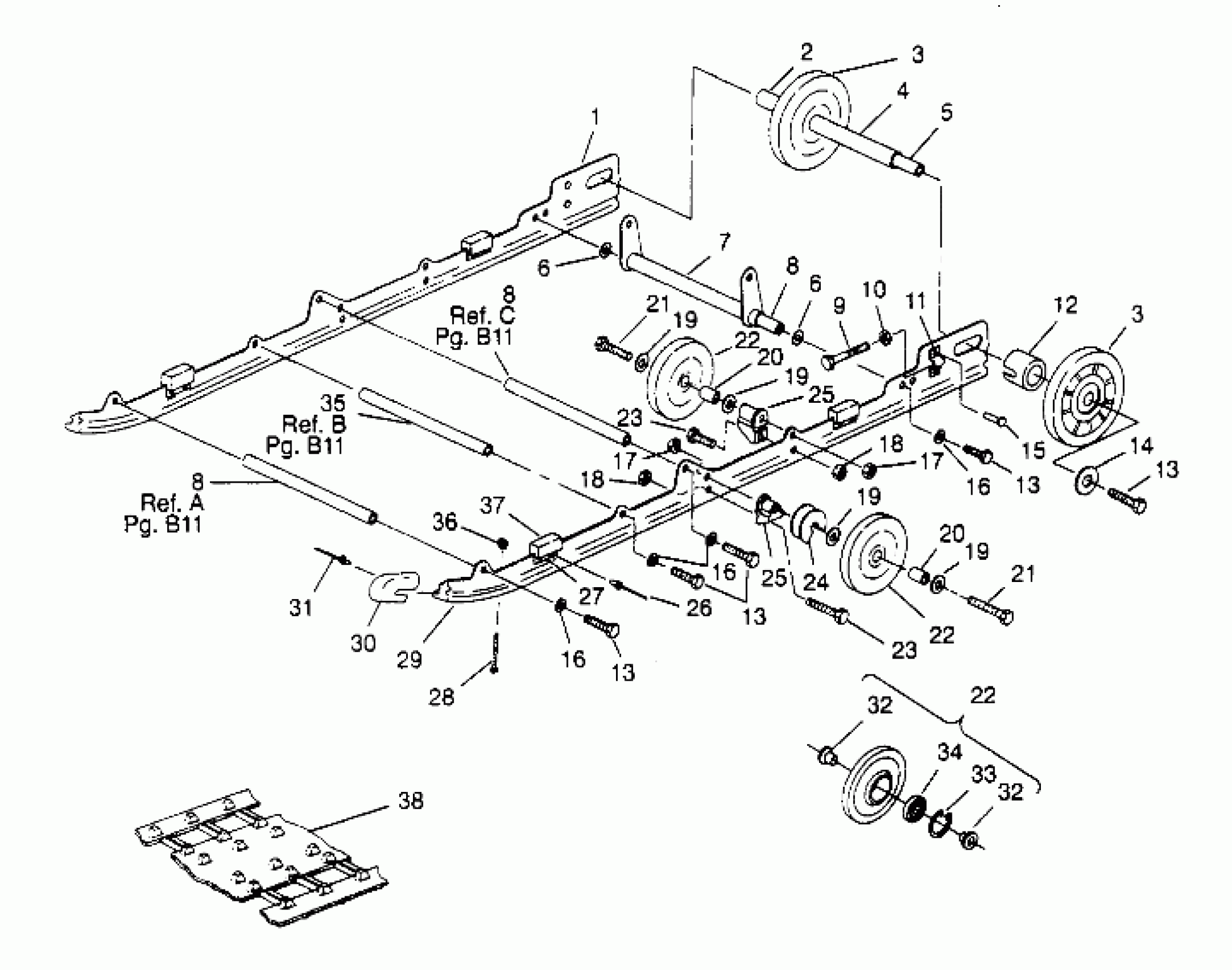

Polaris 500 CARB - 0952764 SUSPENSION ASSEMBLY 500 CARB 0952764 (4929192919B009) Diagram
#
1
RAIL ASM, RH. (Incl. 11, 27, 30, 37)
1540796
$263.99
1
RAIL ASM, LH. (Incl. 11, 27, 30, 37)
1540795
Unavailable
2
SPACER INNER IDLER
5010169
Unavailable
3
WHEEL, IDLER Substituted by 1594079-070
1594021
Unavailable
3
WHEEL, IDLER Substituted by 1594079-070
1594021
Unavailable
4
SPACER,IDLER,R.INNER
5333086
Unavailable
5
SHAFT,IDLER
5020722
Unavailable
6
MACHINERY BUSHING(10)
7556301
$3.19
6
MACHINERY BUSHING(10)
7556301
$3.19
7
ARM, REAR PIVOT
1540677-067
Unavailable
8
SHAFT,PIVOT ARM (Ref. A, C) (See Pg. A24)
5020723
$29.99
8
SHAFT,PIVOT ARM (Ref. A, C) (See Pg. A24)
5020723
$29.99
8
SHAFT,PIVOT ARM (Ref. A, C) (See Pg. A24)
5020723
$29.99
9
BOLT, ADJUSTER(10)
7515455
$29.99
10
NUT(10)
7542440
Unavailable
11
BLOCK-IDLER BOLT ADJ.
5130530
$32.37
12
SPACER-IDLER-OUTER
5332641
Unavailable
13
BOLT(10)
7515526
$1.19
13
BOLT(10)
7515526
$1.19
13
BOLT(10)
7515526
$1.19
13
BOLT(10)
7515526
$1.19
14
WASHER(10) Substituted by 7556130
7571629
Unavailable
15
RIVET,(50)
7621501
$2.39
16
WASHER(10)
7552603
$1.49
16
WASHER(10)
7552603
$1.49
16
WASHER(10)
7552603
$1.49
17
NUT, NYLOCK(10)
7542525
$4.79
17
NUT, NYLOCK(10)
7542525
$4.79
18
NUT LOCK(10)
7542403
$3.99
18
NUT LOCK(10)
7542403
$3.99
19
WASHER, FLAT(10)
7555852
$2.39
19
WASHER, FLAT(10)
7555852
$2.39
19
WASHER, FLAT(10)
7555852
$2.39
19
WASHER, FLAT(10)
7555852
$2.39
20
SPACER, WHEEL
5333116
$7.99
20
SPACER, WHEEL
5333116
$7.99
21
BOLT(10)
7512538
$6.39
21
BOLT(10)
7512538
$6.39
22
WHEEL, IDLER (Incl. 32-34)
1543018
$56.65
22
WHEEL, IDLER (Incl. 32-34)
1543018
$56.65
22
WHEEL, IDLER (Incl. 32-34)
1543018
$56.65
23
BOLT(10)
7512404
$3.99
23
BOLT(10)
7512404
$3.99
24
ROLLER, SPRING
5431366
$10.51
25
SPACER
5630399
$11.99
25
SPACER
5630399
$11.99
26
RIVET-3/16 (.626-.750) Q-AL-ST
7621476
$1.49
27
REINF., BUMPER
5222629
$13.75
28
SCREW(10)
7512227
$3.19
29
SLIDER,BLACK(2)
5521320
Unavailable
30
COVER-RAIL TIP
5430627
$32.37
31
RIVET(50)
7621435
$1.49
32
INSERT, WHEEL,(10) (2 Per Wheel)
5431531
$9.70
32
INSERT, WHEEL,(10) (2 Per Wheel)
5431531
$9.70
33
RET.RING-TRUARC (1 per)
7718407
$4.79
34
BEARING,CHAINCASE (1 Per)
3514305
$19.99
35
SHAFT,PIVOT ARM (Ref. C) (See Pg. A24)
5020724
$29.99
36
NUT-LOCK(10)
7542122
$1.49
37
BUMPER, RAIL
5810554
$7.27
38
TRACK Substituted by 5410747
5410746
$749.99
