SEAT and GAS TANK ASSEMBLY 500 CARB 0952764 (4929192919A007)

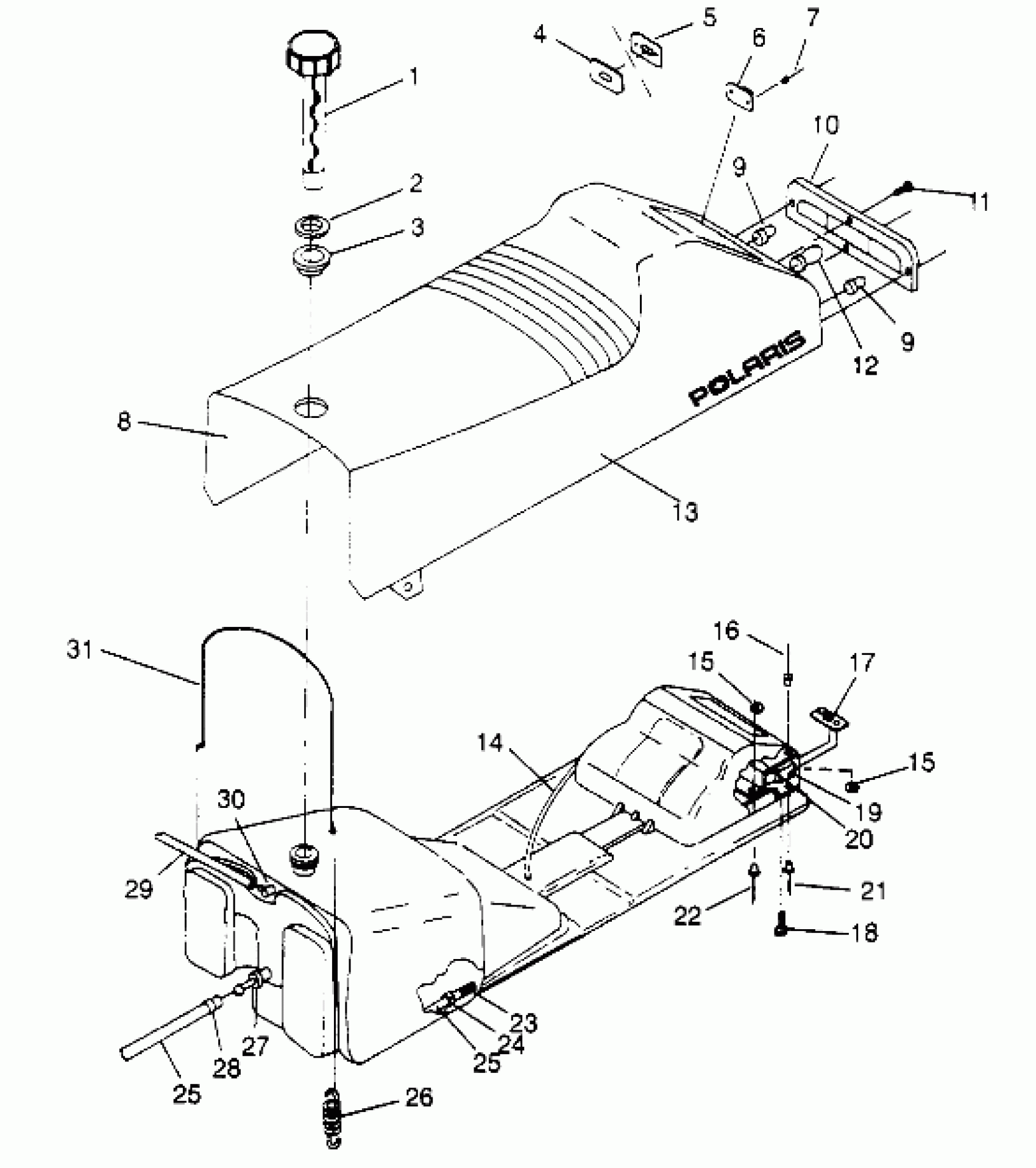

Polaris 500 CARB - 0952764 SEAT and GAS TANK ASSEMBLY 500 CARB 0952764 (4929192919A007) Diagram
#
Description
Price
1
CAP,GAS,W/GAUGE
2511248
$44.51
2
GASKET, GAS CAP
5810513
$8.89
3
GROMMET,FUELTANK
5410815
Unavailable
4
GROMMET,RELATCH,1",BOTT.(10)
7080550
Unavailable
5
GROMMET,RELATCH,1",TOP(10)
7080549
Unavailable
6
TWISTLOCK,RELATCH,1",W/HOLE(10)
7080548
Unavailable
7
RIVET(50)
7621339
$1.49
8
SEAT ASM, STD. (Incl. 9-14, 18, 19, 23-25, 27, 30, 31)
2681801
Unavailable
9
BULB,TAILLIGHT(10)
4030024
$4.84
9
BULB,TAILLIGHT(10)
4030024
$4.84
10
LENS,TAILLIGHT
5430423
Unavailable
11
SCREW(10)
7511840
Unavailable
12
Bulb, Brakelight
4030045
Unavailable
13
COVER,SEAT,STD.
2681802
Unavailable
14
HARNESS,TAILLIGHT
2460398
Unavailable
15
WSHR-.194X.475X.049 ZTB
7555746
Unavailable
15
WSHR-.194X.475X.049 ZTB
7555746
Unavailable
16
RIVET, BLIND(50)
7621467
$1.49
17
NUT,RETAINER-WELD.(10)
7542147
$17.59
18
SCREW(10)
7512242
$2.39
19
HOUSING,TAILLIGHT Substituted by 5433341
5431545
Unavailable
20
COVER,T/L PROTECTOR
5431436
$21.43
21
RIVET(50)
7621301
$3.99
22
RIVET(50)
7621464
$3.99
23
FUELPICKUP,W/STRAINER
7052037
$12.94
24
RING, COMPRESSION(10)
7080402
$1.60
25
FUEL LINE,1/4 ID(1525 CM.)
8450003-1525
Unavailable
25
FUEL LINE,1/4 ID(1525 CM.)
8450003-1525
Unavailable
26
SPRING-EXHAUST(10)
7042029
$4.84
27
FITTING - OUTLET(10)
7052023
$24.99
28
CLAMP-HOSE, (LARGE GREEN) (Large Green)
7080307
$1.49
29
FUEL LINE,1/8 ID,600 CM.
8360009-600
Unavailable
30
FITTING,90 DEG,1/8,(10)
7052095
$4.79
31
CABLE,TANK RETENTION
7080473
Unavailable
