NOSEPAN ASSEMBLY 500 CARB 0952764 (4929192919A008)

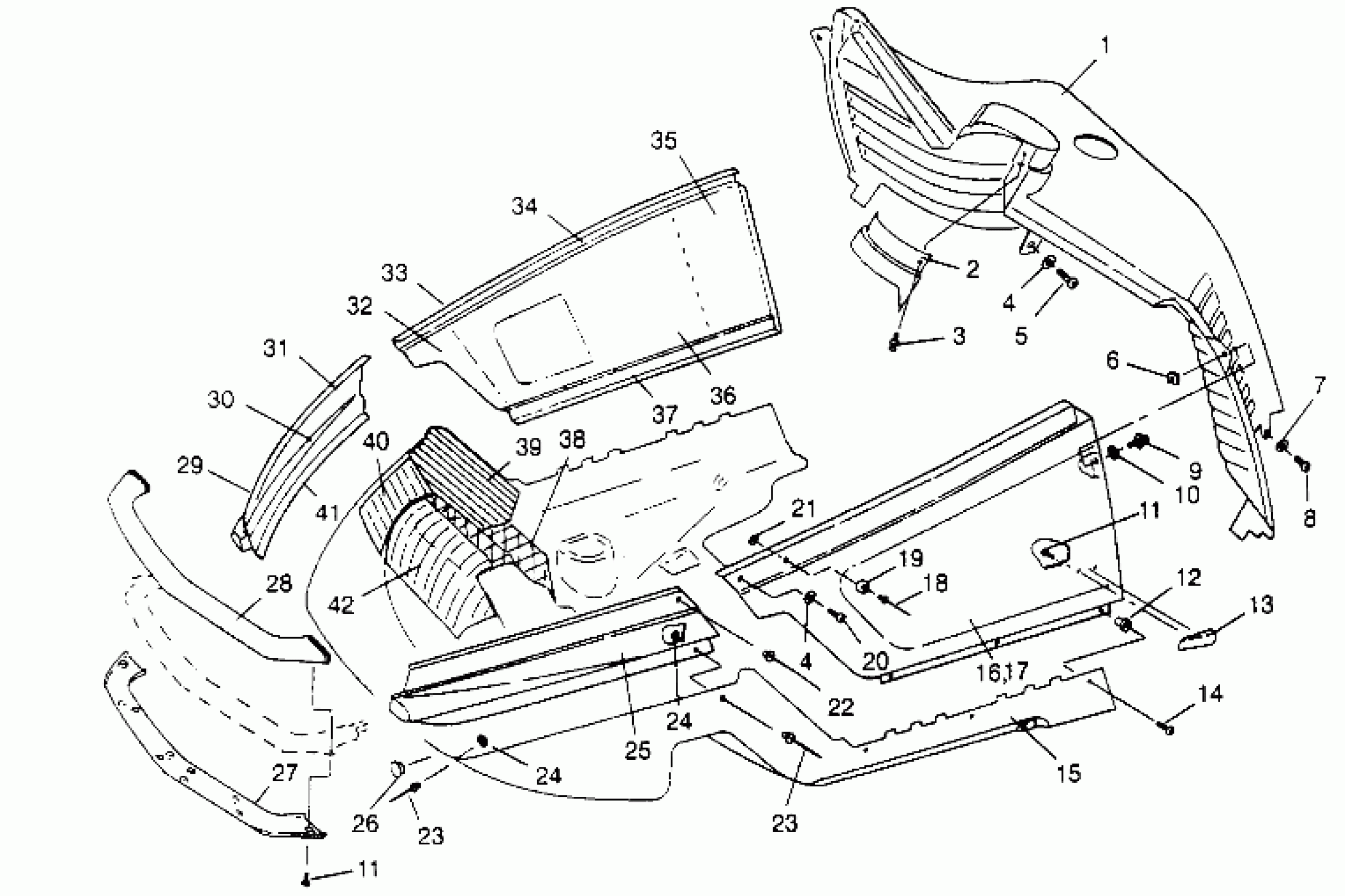

Polaris 500 CARB - 0952764 NOSEPAN ASSEMBLY 500 CARB 0952764 (4929192919A008) Diagram
#
1
CONSOLE,BASIC
5431467
Unavailable
2
COVER,CONSOLE
5431535
$54.35
3
RIVET,PLASTI-LOC.(50)
7621509
$1.49
4
WASHER(10) Substituted by 7558301
7555776
Unavailable
4
WASHER(10) Substituted by 7558301
7555776
Unavailable
5
SCREW(10)
7512252
Unavailable
6
NUT,RETAINER(10)
7542138
Unavailable
7
WASHER(10)
7555792
$4.79
8
SCREW(10)
7512069
Unavailable
9
RETAINER,HOODLATCH
5431502
$12.94
10
WASHER,RUBBER(10)
7555884
$5.70
11
SCREW(10)
7512068
$2.39
11
SCREW(10)
7512068
$2.39
12
NUT-WELL(10)
7541923
$5.59
13
BUMPER,SIDE PANEL Substituted by 5432456
5431662
Unavailable
14
SCREW(10)
7512279
$1.49
15
NOSEPAN, BLK.
5431899-070
$253.97
16
PANEL,LH,SIDE,BLK.MET.
5431742-177
Unavailable
17
FOAM,LH,SIDEPANEL
5811076
Unavailable
18
RIVET(50)
7621315
$3.99
19
BUMPER,RUBBER STOP Substituted by 5411440
5410843
Unavailable
20
SCREW(10)
7515148
$4.79
21
RIVET BURR(50)
7555756
$2.99
22
RIVET(50)
7621472
$1.49
23
RIVET, BLIND(50)
7621467
$1.49
23
RIVET, BLIND(50)
7621467
$1.49
24
BURR,RIVET(50)
7555904
$1.49
24
BURR,RIVET(50)
7555904
$1.49
25
BUMPERSIDE,LH,BLK.
5431492-177
Unavailable
26
PLUG,NOSEPAN HOLE
5410820
$15.99
27
COVER,F.BUMP.BOTTOM
5431481
Unavailable
28
COVER,F.BUMP.TOP,BLK.
5431480-177
Unavailable
29
BUMPER,RH.SIDE/FOIL,BLK.MT. Substituted by 2610010-177
2610006-177
Unavailable
30
FOIL,SIDE BUMP,MIDDLE
5811086
Unavailable
31
FOIL,SIDE BUMP,UPPER
5811084
Unavailable
32
FOIL,FR.SIDEPANEL
5811072
Unavailable
33
FOIL,TOP,OUT.SIDEPANEL
5811075
Unavailable
33
FOIL,TOP,INNER,SIDEPANEL
5811074
Unavailable
34
FOIL,UP.SIDEPANEL
5811073
Unavailable
35
PANEL,RH,SIDE,FOIL,BLK. (Incl. 32-37)
2610008-177
Unavailable
36
FOAM-FOIL,RH,SIDEPANEL
5811070
Unavailable
37
FOIL,LOW.SIDEPANEL
5811071
Unavailable
38
FOIL,R.SHOCK TOWER
5810938
Unavailable
39
FOIL,RH,PAN
5810908
Unavailable
40
FOIL,SIDE.SHOCKTOWER
5810939
Unavailable
41
FOIL,SIDE BUMP,LOWER
5811085
Unavailable
42
FOIL,F.SHOCK TOWER
5810937
Unavailable
