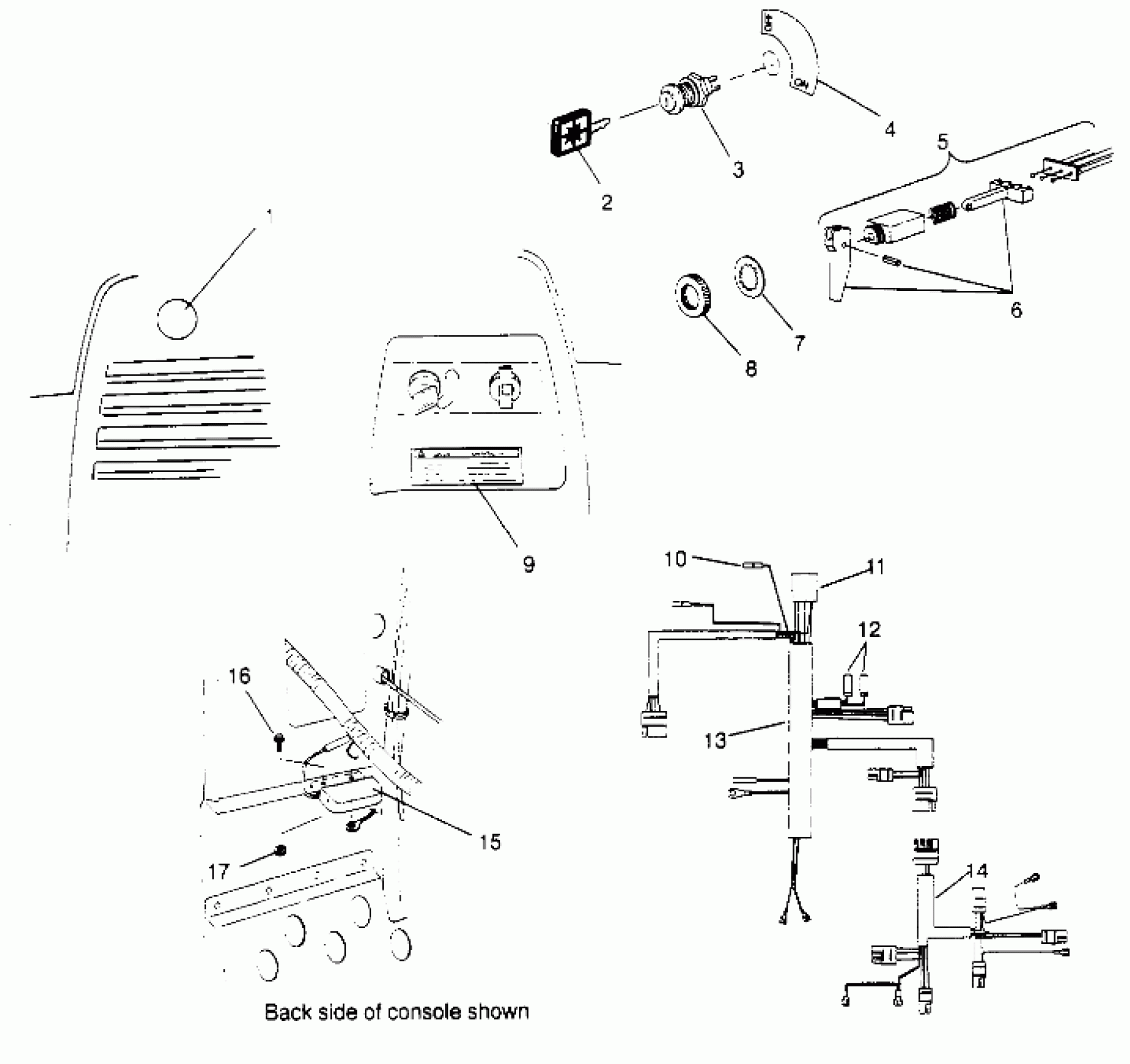

Polaris 500 CARB - 0952764 IGNITION and WIRE HARNESS 500 CARB 0952764 (4929192919B003) Diagram

LOGO,"40 YEARS"

7074695

Unavailable

KEY,IGNITION,W/CAP [Cannot Purchase as Assembly]

5410611

Unavailable

KIT,IGN. SWITCH

2200357

Unavailable

DECAL,IGNITION(10)

7074202

Unavailable

Cable, Choke Control (Incl. 6)

7080290

$105.22

KIT-CHOKE CONTROL

2200188

$24.27

WASHER-LOCK(10)

7571610

$3.99

Nut

7080229

$19.99

DECAL'NO PASS'GR'WARN.

7073406

Unavailable

HOUSING

4020133

Unavailable

Housing w/Receptacle

4020057

$3.51

Housing

4020153

$1.49

HARNESS,MAIN WIRE

2460394

Unavailable

HARNESS,HANDLEBAR

2460506

Unavailable

REGULATOR,14 VAC.LR-9

4060122

Unavailable

SCREW,W/WASHER(10)

7512050

$3.99

NUT(10) NOTE: When ordering ignition key PN 5410611 be sure to specify if for an A, B, C, D, or E switch. Letter code will be labelled on underside of switch body behind console. Key dot code found

7541925

$1.49
