FRONT TORQUE ARM ASSEMBLY 500 CARB 0952764 (4929192919B011)

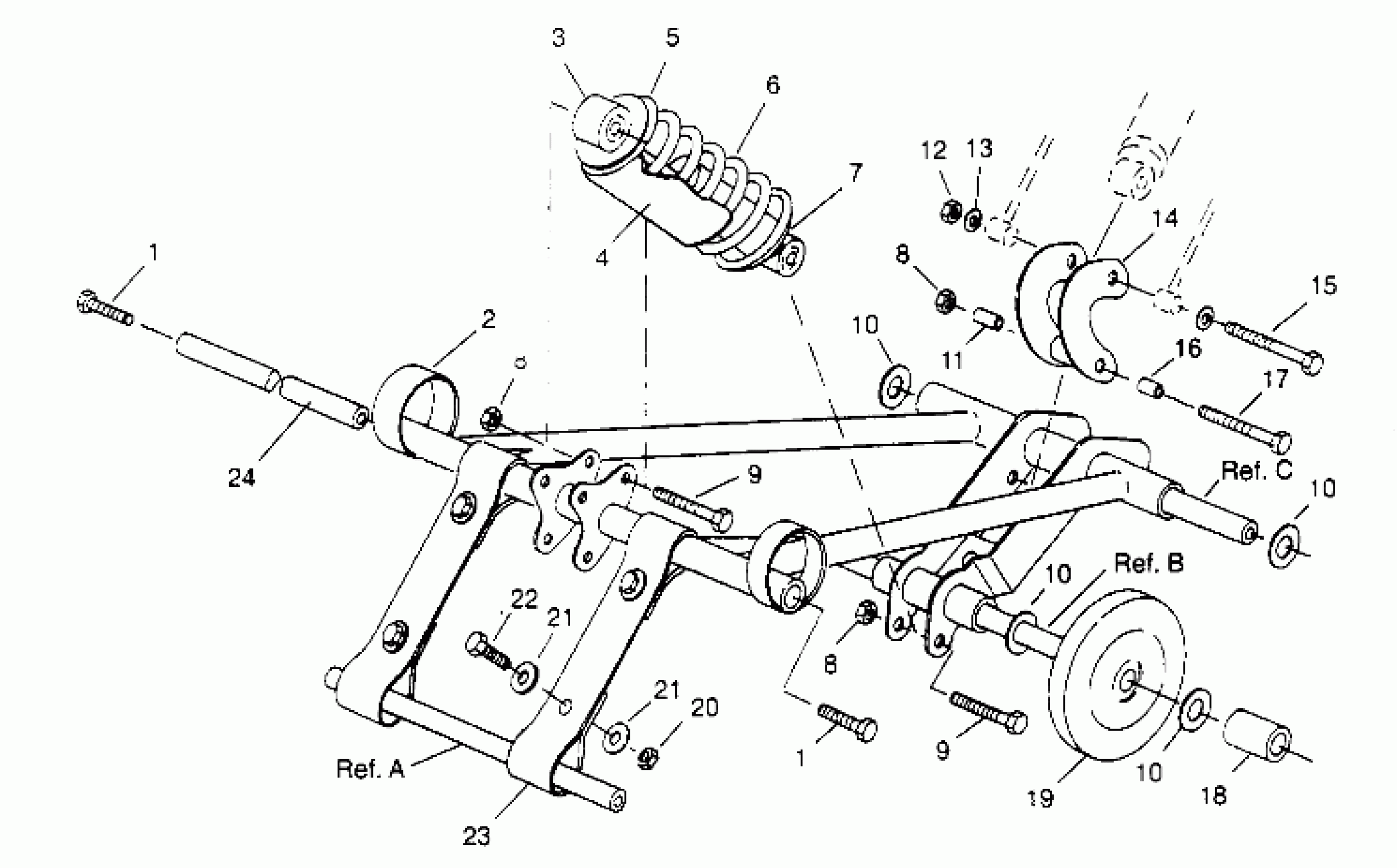

Polaris 500 CARB - 0952764 FRONT TORQUE ARM ASSEMBLY 500 CARB 0952764 (4929192919B011) Diagram
#
Description
Price
1
BOLT,NYLOC,BLACK(10) Substituted by 7515432
7515493
Unavailable
1
BOLT,NYLOC,BLACK(10) Substituted by 7515432
7515493
Unavailable
2
ARM,FR.TORQUE,BLK.
1540794-067
Unavailable
3
SHOCK,CTR.SUSP.
7041281
Unavailable
4
SHIELD-SPRING
5430671
$24.27
5
RETAINER-TOP
5220225
$10.39
6
SPRING-SHOCK SUSP
7041140
Unavailable
7
SPACER,SHOCK RETAINER(10)
5210953
$6.39
8
NUT-LOCK(10)
7542439
$1.49
8
NUT-LOCK(10)
7542439
$1.49
8
NUT-LOCK(10)
7542439
$1.49
9
BOLT(10)
7515415
$1.49
9
BOLT(10)
7515415
$1.49
10
MACHINERY BUSHING(10)
7556301
$3.19
10
MACHINERY BUSHING(10)
7556301
$3.19
10
MACHINERY BUSHING(10)
7556301
$3.19
10
MACHINERY BUSHING(10)
7556301
$3.19
11
BUSHING,PIVOT TUBE
5020561
$1.59
12
NUT FLEX LOC,(10)
7542402
$6.39
13
WASHER(10) Substituted by 7555806
7555720
$0.79
14
SHOCK ARM WELD,BLK.
1540791-067
$55.56
15
BOLT(10)
7515525
Unavailable
16
Spacer
5333028
$1.59
17
BOLT(10)
7515438
$4.79
18
SPACER, OUTER
5332784
Unavailable
19
Asm., Bogie Wheel (See Pg. A23, Ref. 22)
-------
Unavailable
20
NUT-5/16-18 NYLOK-Y
7542324
$1.49
21
WASHER(10)
7555716
$1.59
21
WASHER(10)
7555716
$1.59
22
BOLT(10)
7515307
$3.99
23
STRAP, LIMITER
5410397
Unavailable
24
SHAFT,MOUNTING
5010149
Unavailable
