FRONT SUSPENSION and SKI 500 CARB 0952764 (4929192919A013)

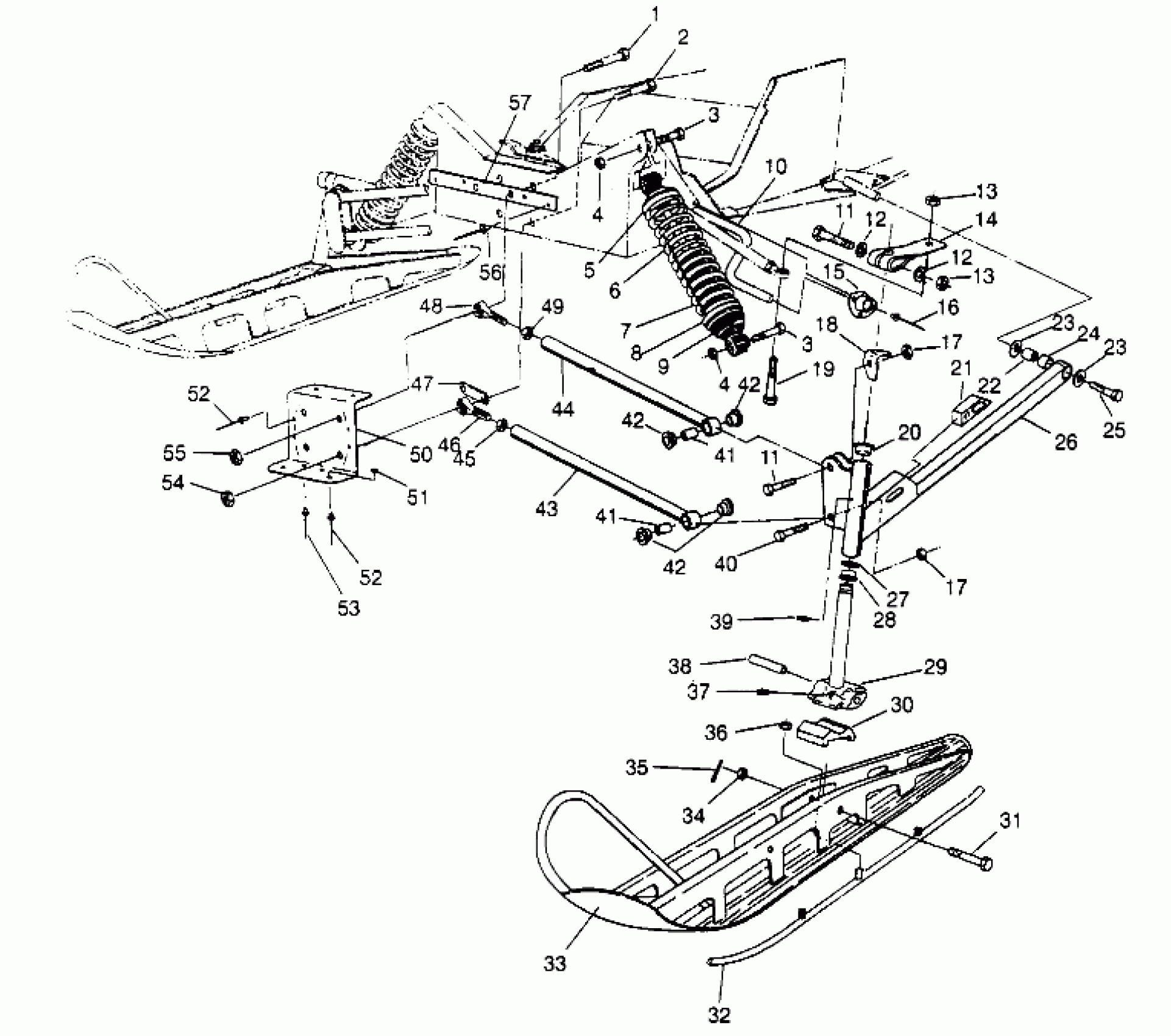

Polaris 500 CARB - 0952764 FRONT SUSPENSION and SKI 500 CARB 0952764 (4929192919A013) Diagram
#
1
BOLT(10)
7512582
$8.79
2
BOLT(10)
7512678
$19.99
3
BOLT(10) Substituted by 7515415
7515515
Unavailable
3
BOLT(10) Substituted by 7515415
7515515
Unavailable
4
NUT, NYLOC(10)
7542453
Unavailable
4
NUT, NYLOC(10)
7542453
Unavailable
5
RETAINER-TOP
5220225
$10.39
6
SPRING,COMP.,BLK.
7041261-067
$164.99
7
SLEEVE,SPRING PROTECTOR
5431032
$31.99
8
CAM,ADJUSTING SPRING
5630334
$32.37
9
SHOCK,GAS/CAM,IFS
7041288
Unavailable
10
BAR,SWAY,9/16,BLK.
5224476-067
Unavailable
11
BOLT(10) Substituted by 7517583
7515491
Unavailable
11
BOLT(10) Substituted by 7517583
7515491
Unavailable
12
WASHER(10) Substituted by 7555832
7555851
Unavailable
12
WASHER(10) Substituted by 7555832
7555851
Unavailable
13
NUT, FLEXLOC B(10) Substituted by 7542403
7542456
$3.97
13
NUT, FLEXLOC B(10) Substituted by 7542403
7542456
$3.97
14
ARM,STEERING,BLK. Substituted by 1012423-067
5222873-067
Unavailable
15
BUSHING-SWAYBAR
5410383
Unavailable
16
RIVET(50)
7621433
$1.49
17
NUT, FLEXLOC(10) Substituted by 7542411
7542452
Unavailable
17
NUT, FLEXLOC(10) Substituted by 7542411
7542452
Unavailable
18
STOP,STRG,RH,BLK.
5222875-067
Unavailable
18
STOP,STRG,LH,BLK.
5222874-067
Unavailable
19
BOLT(10) Substituted by 7515528
7515529
Unavailable
20
BUSHING-FLANGE
3573909
$2.39
21
SLIDE-SWAYBAR
5410384
Unavailable
22
TUBE,TRAILING ARM
5010187
Unavailable
23
WASHER(10)
7555721
$1.49
23
WASHER(10)
7555721
$1.49
24
PIVOT-TRAILING ARM
5410382
Unavailable
25
BOLT(10)
7512557
$7.60
26
ARM,TRAIL,LH. (Incl. 22, 24)
1822187
Unavailable
26
ARM,TRAIL,RH. (Incl. 22, 24)
1822188
Unavailable
27
WASHER SPECIAL(10)
7556509
$1.59
28
BUSHING,SPINDLE HSG,(10)
3574208
$3.19
29
SPINDLE, BLK.
6230073-067
Unavailable
30
STOP, RUBBER
5521276
Unavailable
31
BOLT(10)
7515462
$8.79
32
SKAG,PR.,CARBIDE (Pair)
2870693
$69.99
33
SKI WELD, BLK
1820332-067
Unavailable
34
NUT, CASTLE(10) Substituted by 7542438
7542457
Unavailable
35
PIN, COTTER(10) Substituted by 7661205
7661209
Unavailable
36
NUT-5/16-18 NYLOK-Y
7542324
$1.49
37
FITTING,LUBE.W/BALL CK.(10)
7080306
$3.19
38
BUSHING,PIVOT,(10)
5010158
$19.99
39
ZERK,FITTING,THREADED(10)
7080433
$1.49
40
BOLT(10) Substituted by 7515540
7515492
$4.62
41
BUSHING-RADIUS ROD,(10)
5010127
$7.99
41
BUSHING-RADIUS ROD,(10)
5010127
$7.99
42
BUSH,RAD.ROD PIVOT,OUT.
5431486
$3.19
42
BUSH,RAD.ROD PIVOT,OUT.
5431486
$3.19
42
BUSH,RAD.ROD PIVOT,OUT.
5431486
$3.19
43
ROD,RAD.LOW,WIDE,BLK.
1822216-067
Unavailable
44
ROD,RAD.UPPER,BLK.
1822215-067
Unavailable
45
NUT-JAM(10)
7542711
$2.39
46
ROD END Substituted by 7061027
7060162
$48.56
47
STRAP,SPACER,BOTT.
5211427
Unavailable
48
ROD END
7060163
Unavailable
49
NUT JAM(10)
7542520
$2.39
50
BRKT,PANSUPPORT,BLK.
5222866-067
Unavailable
51
WASHER,13/64X1/2X18GA,FL-Y
7558212
$1.49
52
RIVET, BLIND(50)
7621467
$1.49
52
RIVET, BLIND(50)
7621467
$1.49
53
RIVET,3/16X.402(50)
7621432
$1.49
54
NUT FLEX,(10)
7542703
Unavailable
55
NUT, LOCK,(10)
7542503
$10.39
56
RIVET-3/16-.090-.290
7661637
$1.49
57
BRACE,BULKHEAD
5240349-067
$6.63
