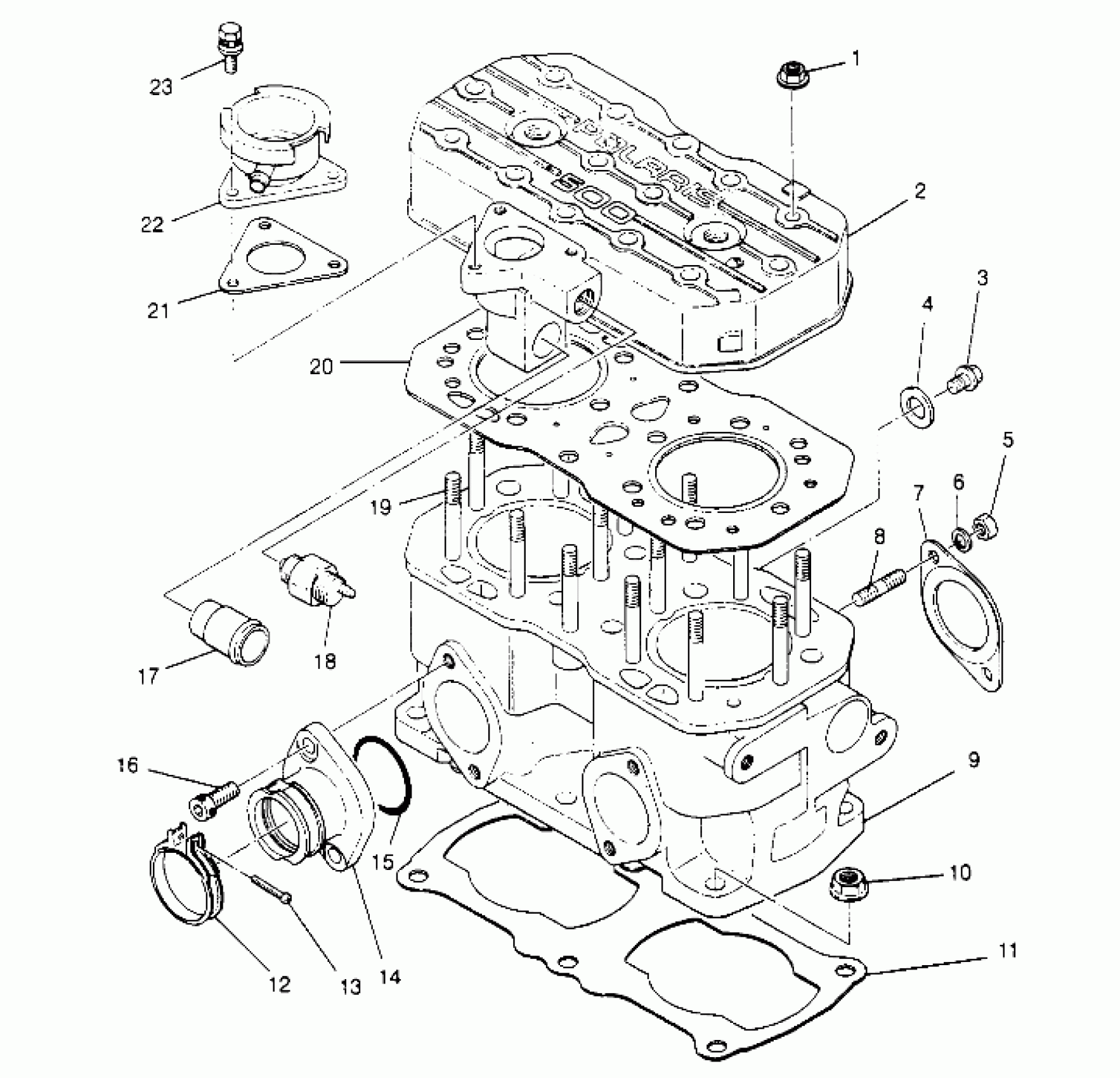

Polaris 500 CARB - 0952764 CYLINDER ASSEMBLY 500 CARB 0952764 (4929192919C006) Diagram

#

Description
Price

1

NUT-FLANGE(10)

3082910

$2.39

2

HEAD, CYLINDER (Incl. 17)

3083960

$354.99

3

Plug

3084491

Unavailable

4

Gasket, Aluminum

3084492

$4.03

5

NUT(10)

3080285

Unavailable

6

WASHER LOCK ,(10)

3080530

$3.19

7

GASKET,EXHAUST,NA(10) Substituted by 3086757

3084439

Unavailable

8

STUD (10)

3080016

$5.75

9

CYLINDER (Incl. 8, 19)

3083958

$609.99

10

NUT-FLANGE(10)

3082911

$1.99

11

GASKET, CYL.,NA. Substituted by 3084768 (Cylinder) Non-Asbestos

3084029

Unavailable

12

BAND ASM. (Incl. 13)

3083166

$19.84

13

SCREW,(10)

3081497

$2.39

14

ADAPTER (Incl. 15)

3084325

Unavailable

15

O-RING Substituted by 3085619

3084272

Unavailable

16

Bolt, Allen

3081330

$3.99

17

PIPE, WATER Substituted by 3083452

3085016

Unavailable

18

SWITCH,THERMAL(93 DEG.C.)

3083055

Unavailable

19

STUD

3083360

Unavailable

20

GASKET, HEAD

3084332

Unavailable

21

GASKET, FILLER NECK

3083340

Unavailable

22

NECK, FILLER

3083398

Unavailable

23

BOLT&WASHER ASM.

3083361

Unavailable
