CARBURETOR ASSEMBLY 500 CARB 0952764 (4929192919C009)

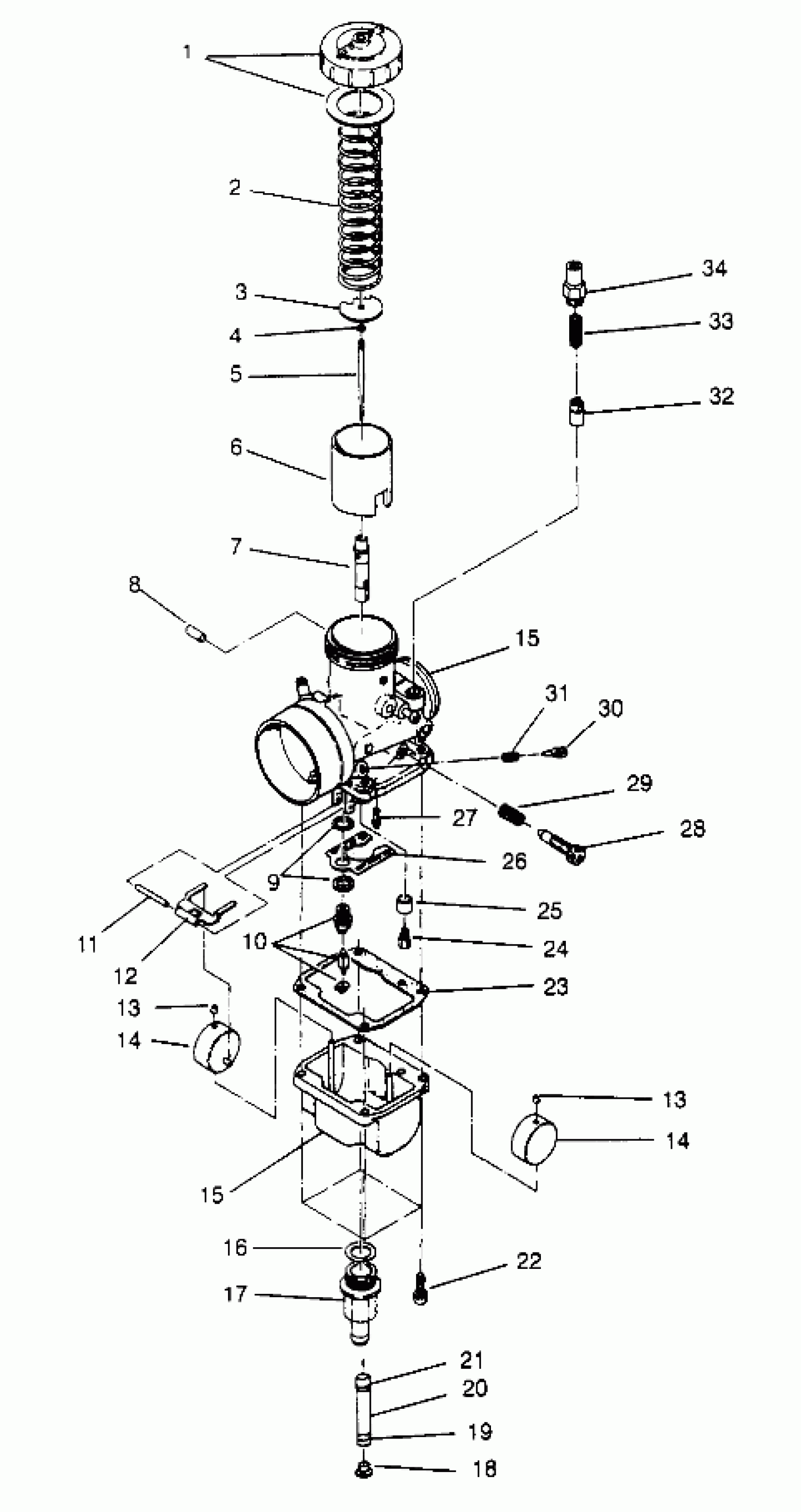

Polaris 500 CARB - 0952764 CARBURETOR ASSEMBLY 500 CARB 0952764 (4929192919C009) Diagram
#
Description
Price
1
TOP ASM (Incl. Gasket)
3130184
$32.37
2
SPRING,THROTTLE
3130444
Unavailable
3
PLATE, THROTTLE
3130054
$6.46
4
E RING(10) Substituted by 3130508
3130003
Unavailable
5
NEEDLE,JET,(6F9-3) (6F9-3)
3130378
Unavailable
6
VALVE, THROTTLE,2.5 (2.5)
3130454
Unavailable
7
JET,NEEDLE,P-8 (P-8) (247)
3130382
Unavailable
8
CAP
3130479
$14.56
9
WASHER(10)
3130047
$4.84
10
VALVE ASM,NEEDLE Substituted by 3130643 (1.5)
3130046
$56.65
11
PIN, FLOAT
3130361
$8.89
12
ARM,FLOAT
3130048
Unavailable
13
CAP,(10)
3130237
$4.03
13
CAP,(10)
3130237
$4.03
14
FLOAT ASM
3130021
$40.46
14
FLOAT ASM
3130021
$40.46
15
CARBURETOR Substituted by 3130456 (Incl. 1-16, 22-34)
3130553
Unavailable
15
CARBURETOR Substituted by 3130456 (Incl. 1-16, 22-34)
3130553
Unavailable
16
O RING
3130239
Unavailable
17
FITTING,SEDIMENT Substituted by 3130573
5020476
$10.63
18
PLUG,TRAP
5431893
$12.94
19
CLAMP,HOSE(10)
7080544
Unavailable
20
DESC NOT_AVAILABLE
8450045-600
Unavailable
21
CLAMP,SPRING,(10)
7080534
$1.59
22
SCREW
3130056
$3.19
23
GASKET,FLOAT CHAMBER
3130236
$12.13
24
JET,MAIN,#300 Substituted by 3130133 (#300)
3130482
$7.27
25
RING,CARB
3130232
Unavailable
26
PLATE
3130243
Unavailable
27
JET,PILOT,#40(10) (#40)
3130067
$10.99
28
SCREW,THROTTLE STOP
3130009
$19.99
29
SPRING,THROTTLE ADJ.
3130010
$8.89
30
SCREW,AIR
3130011
$19.99
31
SPRING,AIR ADJUST
3130012
$8.89
32
PLUNGER ASM, STARTER
3130328
$32.37
33
SPRING,PLUNGER
3130006
$8.89
34
HOLDER,GUIDE
3130199
$28.32
