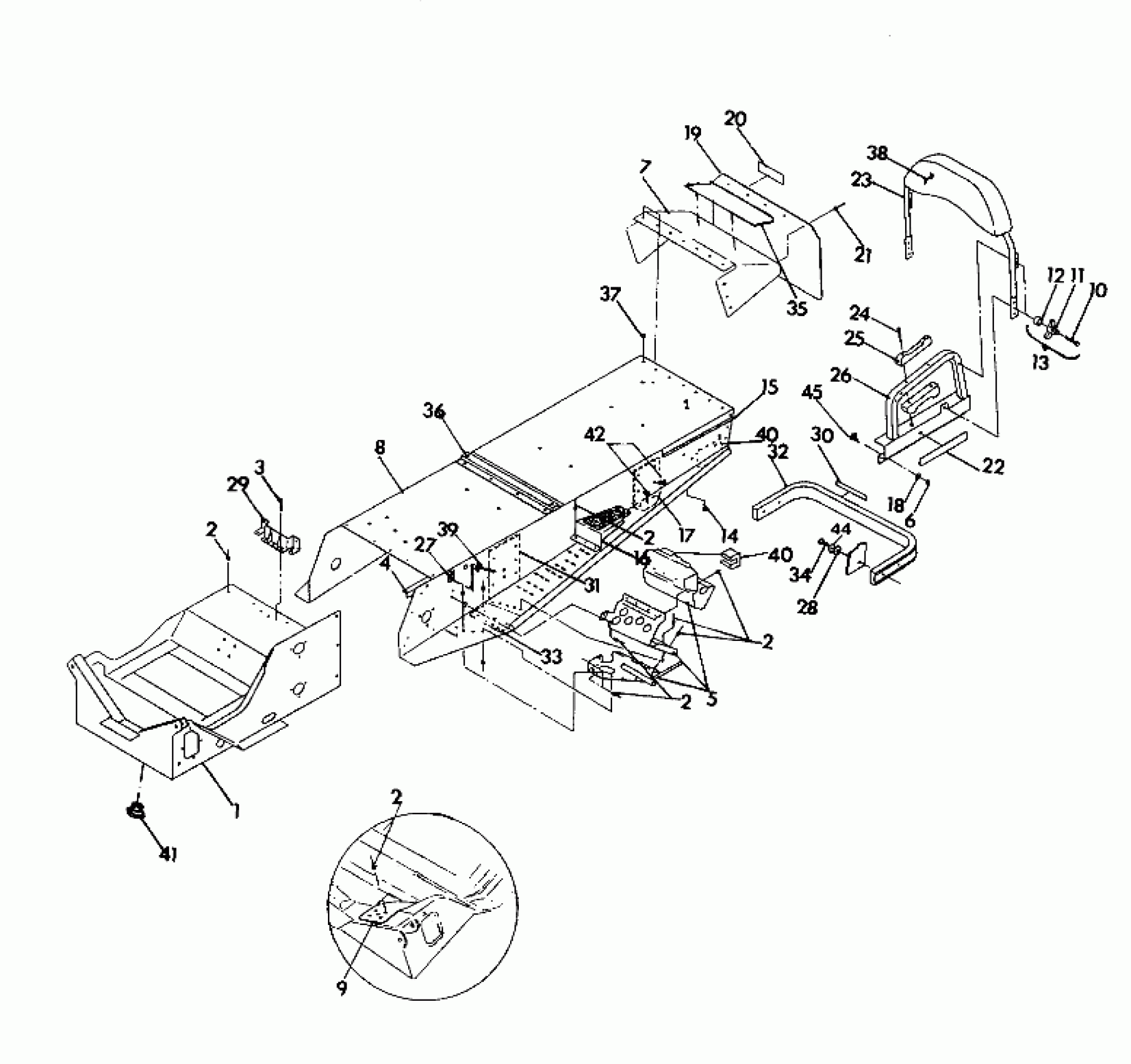

Polaris 500 - 0920764 TUNNEL ASSEMBLY 500 Classic (4921252125003A) Diagram
#
1
BULKHEAD,(500),BLK.
1011743-067
Unavailable
2
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
2
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
2
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
2
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
2
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
3
RIVET(50)
7621301
$3.99
4
BRACE,TUNNEL REINF.
5222412
Unavailable
5
FOOTREST,LH,(650)
2200303
Unavailable
5
KIT,FOOTREST,RH(BLK)
2200349
Unavailable
6
NUT-5/16-18 NYLOK-Y
7542324
$1.49
7
PANEL,CLOSE-OFF,REAR Substituted by 1011694-067
1011694
Unavailable
8
DESC NOT_AVAILABLE
1011842
Unavailable
9
BRACE,LH BLKHD,BLK.
5222582-067
Unavailable
9
BRACE,RH BLKHD,BLK.
5222583-067
Unavailable
10
SCREW(10)
7515352
Unavailable
11
Knob, Backrest
5630386-067
$20.22
12
SPACER
5431285
Unavailable
13
KNOB ASM,BACKREST
2670130
Unavailable
14
SCREW(10)
7512116
Unavailable
15
DECAL,RH TUNNELSTRIPE [No Longer Available]
7073356
Unavailable
15
DECAL,LH TUNNELSTRIPE [No Longer Available]
7073355
Unavailable
16
PAD,LH FOOT SAFETY
5830007
$7.89
16
PAD,RH FOOT SAFETY
5830008
$4.92
17
BRKT,LH.R.SUSP,BLK.
1011749-067
Unavailable
17
BRKT,RH.R.SUSP,BLK.
1011750-067
Unavailable
18
WSHR-FL-.312X.734X.065-Y (Classic)
7555843
$1.59
19
FLAP, SNOW,SILVER Substituted by 5410394-1106
5410394
$121.02
20
DECAL,TRACK/SEAT,SILVER [No Longer Available]
7073123
Unavailable
21
POP RIVET(50)
7621418
$1.49
22
REFLECTOR RED
2670070
$9.91
23
BACKREST ASM.
2681575
$115.08
24
SCREW(10)
7510504
$6.76
25
GRIP, HAND Substituted by 5433383
5431015
$19.68
26
BAR,GRAB,LH,BLK.
1011729-067
Unavailable
26
BAR,GRAB,RH,BLK.
1011730-067
Unavailable
27
SNAP-MALE(10)
7080227
Unavailable
28
WASHER(10)
7558301
$1.49
29
BRKT,GASTANK,WELD.
1011733-067
$19.73
30
DECAL,(44'')SIDE'CLASSIC' [No Longer Available]
7073354
Unavailable
31
BRKT,FR.SUSP,BLK.
5220542-067
Unavailable
32
BUMPER, REAR Substituted by 2670122
5224420
Unavailable
33
PLATE,TUNNEL,LH
5220634
Unavailable
33
PLATE,TUNNEL,RH
5220635
Unavailable
34
BOLT(10)
7512240
$3.99
35
DECAL,R.CLOSEOFF(CLASSIC) [No Longer Available]
7073375
Unavailable
36
BRKT,R.FUEL TANK,BLK.
5222375-067
$17.43
37
RIVET Substituted by 7661829
7661828
Unavailable
38
COVER,BACKREST(CLASSIC)
2681574
Unavailable
39
RIVET-POP 1/8(.063-.125)-ST-Z
7621222
$1.49
40
EXTRUSION,CLUTCHGUARD
5521238
$6.46
40
EXTRUSION,CLUTCHGUARD
5521238
$6.46
41
PLUG, HOLE(10)
7080416
$5.65
42
BOLT, BLACK
7515494
$3.03
44
LOCK WASHER(10)
7552801
$1.59
45
BOLT(10)
7512325
$2.39
45
FOOTREST,LH REAR
5220893
Unavailable
45
FOOTREST,RH REAR
5220894
$32.15
45
RIVET-3/16-.090-.290
7661637
$1.49
