SUSPENSION 500 and 500 Classic (4921252125031A)

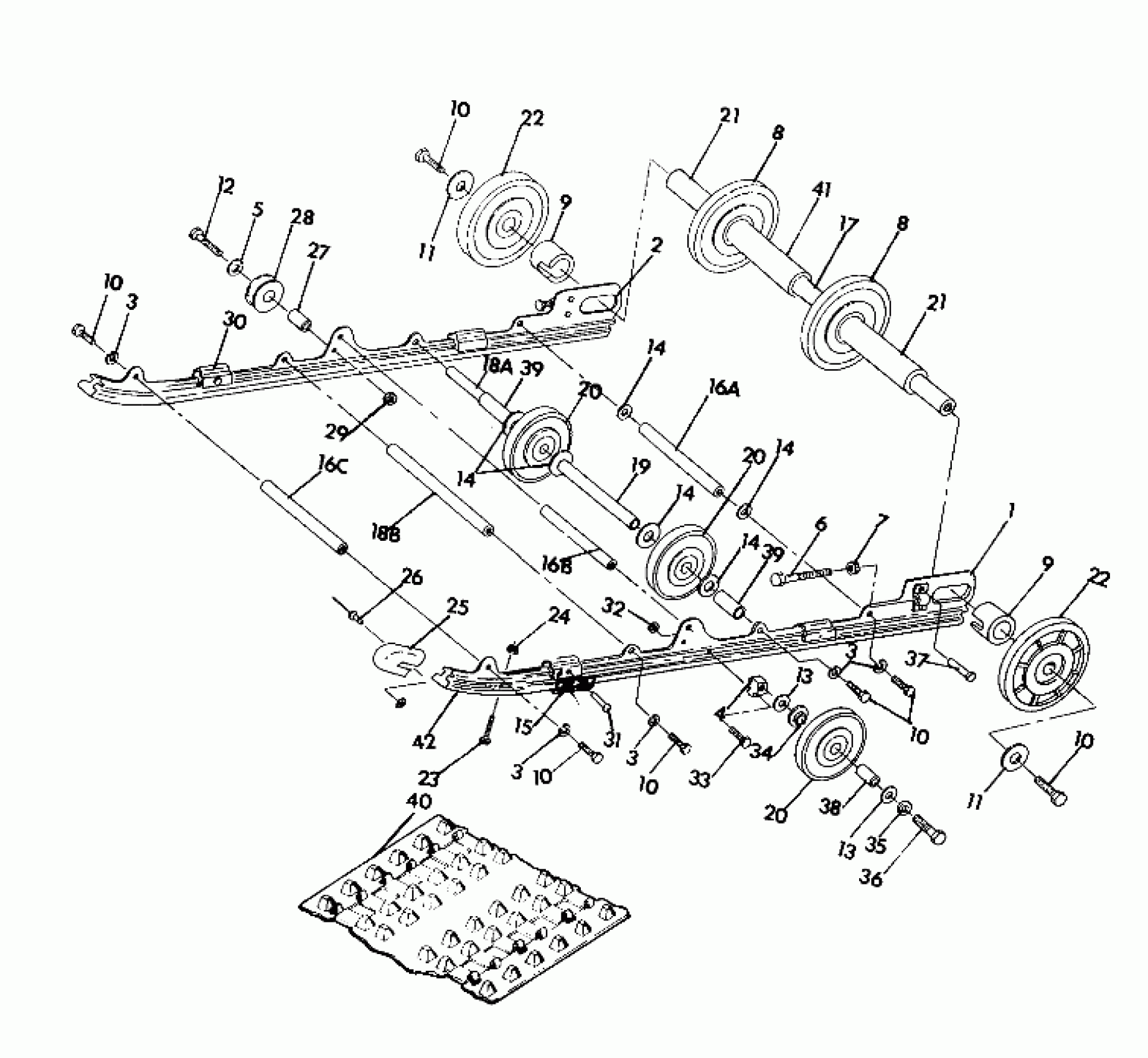

Polaris 500 - 0920764 SUSPENSION 500 and 500 Classic (4921252125031A) Diagram
#
1
RAIL ASM., LH (Classic)
1540615
$271.99
1
RAIL ASM, LH,SILVER (500)
1540553
Unavailable
2
RAIL ASM,RH, SILVER (500)
1540554
Unavailable
2
RAIL ASM,RH (Classic)
1540616
$271.99
3
WASHER(10)
7552603
$1.49
3
WASHER(10)
7552603
$1.49
3
WASHER(10)
7552603
$1.49
3
WASHER(10)
7552603
$1.49
5
WASHER(10)
7555743
Unavailable
6
BOLT, ADJUSTER(10)
7515455
$29.99
7
NUT(10)
7542440
Unavailable
8
WHEEL, IDLER Substituted by 1594079-070
1594021
Unavailable
8
WHEEL, IDLER Substituted by 1594079-070
1594021
Unavailable
9
SPACER-IDLER-OUTER
5332641
Unavailable
9
SPACER-IDLER-OUTER
5332641
Unavailable
10
BOLT(10) Substituted by 7512492
7515458
Unavailable
10
BOLT(10) Substituted by 7512492
7515458
Unavailable
10
BOLT(10) Substituted by 7512492
7515458
Unavailable
10
BOLT(10) Substituted by 7512492
7515458
Unavailable
10
BOLT(10) Substituted by 7512492
7515458
Unavailable
10
BOLT(10) Substituted by 7512492
7515458
Unavailable
11
WASHER FLAT(10)
7555732
Unavailable
11
WASHER FLAT(10)
7555732
Unavailable
12
BOLT Substituted by 7515491
7515433
$1.59
13
WASHER(10)
7555804
$3.99
13
WASHER(10)
7555804
$3.99
14
MACHINERY BUSHING(10)
7556301
$3.19
14
MACHINERY BUSHING(10)
7556301
$3.19
14
MACHINERY BUSHING(10)
7556301
$3.19
14
MACHINERY BUSHING(10)
7556301
$3.19
14
MACHINERY BUSHING(10)
7556301
$3.19
15
REINF., BUMPER
5222629
$13.75
16
SHAFT-PIVOT ARM Substituted by 5020723
5020392
$29.99
16
SHAFT-PIVOT ARM Substituted by 5020723
5020392
$29.99
16
SHAFT-PIVOT ARM Substituted by 5020723
5020392
$29.99
17
SHAFT,REAR IDLER Substituted by 5020722
5020395
Unavailable
18
SHAFT-PIVOT ARM Substituted by 5020724
5020415
$29.99
18
SHAFT-PIVOT ARM Substituted by 5020724
5020415
$29.99
19
TUBE, SUSPENSION
5332783
Unavailable
20
WHEEL, IDLER
1543018
$56.65
20
WHEEL, IDLER
1543018
$56.65
20
WHEEL, IDLER
1543018
$56.65
21
SPACER INNER IDLER
5010169
Unavailable
21
SPACER INNER IDLER
5010169
Unavailable
22
WHEEL, IDLER Substituted by 1594079-070 (Classic)
1594021
Unavailable
22
WHEEL,IDLER,BLUE (500)
1594038
Unavailable
22
WHEEL, IDLER Substituted by 1594079-070 (Classic)
1594021
Unavailable
22
WHEEL,IDLER,BLUE (500)
1594038
Unavailable
23
SCREW(10)
7512227
$3.19
24
NUT-LOCK(10)
7542122
$1.49
25
COVER-RAIL TIP
5430627
$32.37
26
RIVET(50)
7621435
$1.49
27
Spacer
5332787
Unavailable
28
ROLLER-SPRING
5430540
Unavailable
29
NUT-LOCK(10)
7542439
$1.49
30
BUMPER, RAIL
5810554
$7.27
31
RIVET-3/16 (.626-.750) Q-AL-ST
7621476
$1.49
33
BOLT(10)
7512404
$3.99
34
INSERT-WHEEL Substituted by 5431531
5430789
$9.70
35
LOCK WASHER(10)
7553201
$3.99
36
BOLT(10)
7512659
$7.99
37
RIVET,(50)
7621501
$2.39
38
SPACER
5332786
$7.99
39
SPACER, OUTER
5332784
Unavailable
39
SPACER, OUTER
5332784
Unavailable
40
TRACK, (650) (500)
5410498
Unavailable
40
TRACK Substituted by 5410823 (Classic)
5410594
Unavailable
41
SPACER CTR IDLER
5010168
Unavailable
42
SLIDE,BLACK,(HIFAX) Substituted by 5521320 (Black)
5521086
Unavailable
42
SLIDER,RH Substituted by 5521320 (500)
5521163
Unavailable
42
SLIDER,LH Substituted by 5521320 (500)
5521164
Unavailable
42
SLIDE,LH Substituted by 5521320 (Classic)
5521165
Unavailable
42
SLIDE,RH Substituted by 5521320 (Classic)
5521166
Unavailable
