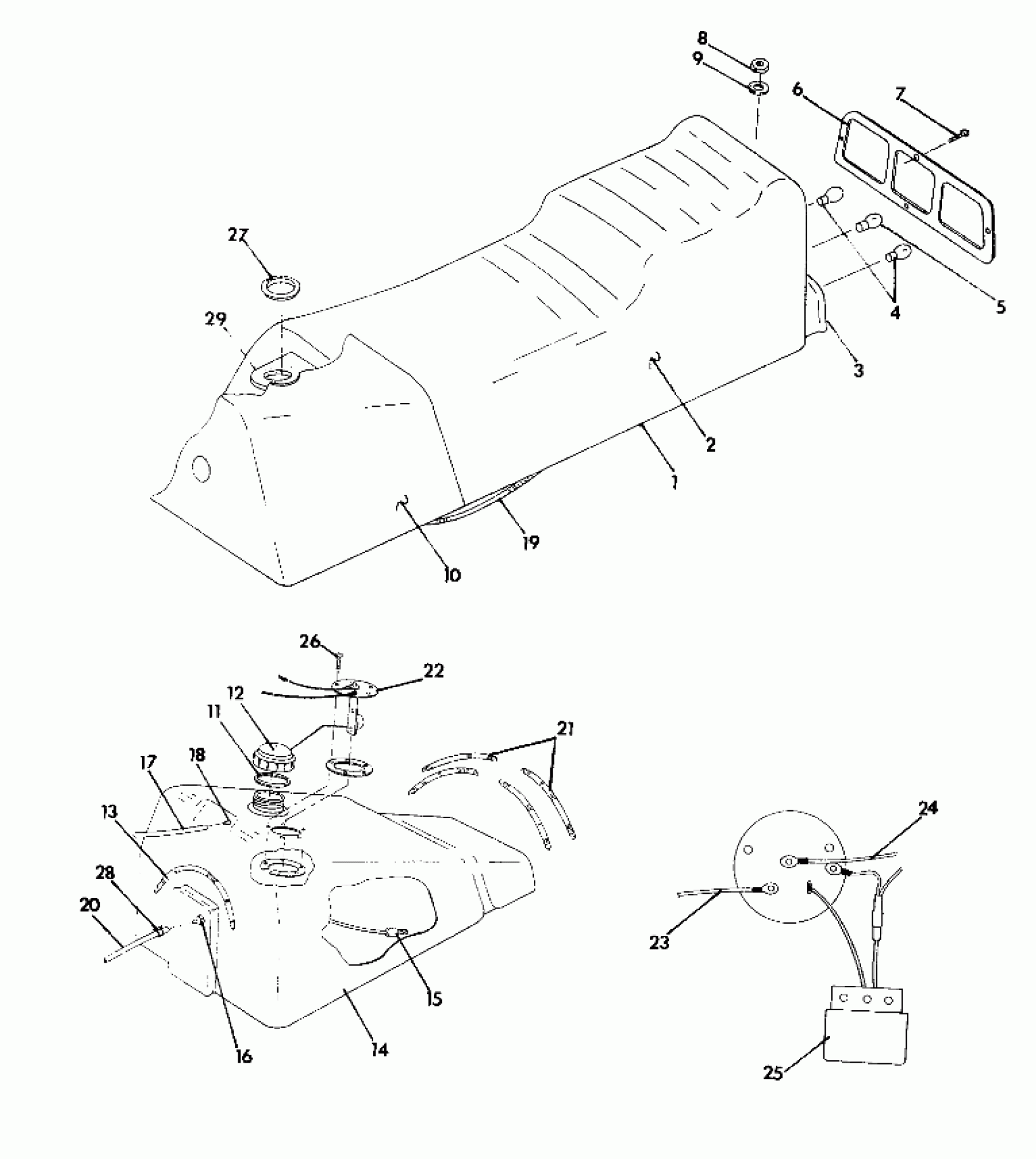

Polaris 500 - 0920764 SEAT/GAS TANK ASSEMBLY 500 Classic (4921252125007A) Diagram

#

Description
Price

1

SEAT ASM Substituted by 2200746 (Incl. 2-7, 21)

2681562

Unavailable

2

COVER,SEAT(CLASSIC'92-3) Substituted by 2200743

2681563

Unavailable

3

HOUSING,TAILLIGHT

5430425

Unavailable

4

BULB,TAILLIGHT(10)

4030024

$4.84

5

BULB, BRAKELIGHT

4030019

Unavailable

6

LENS,TAILLIGHT

5430423

Unavailable

7

SCREW(10)

7511840

Unavailable

8

NUT-LOCK(10)

7542122

$1.49

9

WASHER(10)

7558221

$2.39

10

COVER,TANK(CLASSIC'92-3) Substituted by 2200743

2681564

Unavailable

11

GASKET-GAS CAP

5810144

$5.59

12

CAP,GAS,VENTLESS,W/GASKET Substituted by 2511226

2511178

Unavailable

13

SPRING,TANK,(10)

7042020

$13.75

14

TANK ASM,FUEL

2511199

Unavailable

15

FUELPICKUP,W/STRAINER

7052037

$12.94

16

FITTING - OUTLET(10)

7052023

$24.99

17

VENT LINE,1/8,BULK Substituted by 8360009-600

8360009

Unavailable

18

VENT FITTING,TANK Substituted by 5430579

5430669

Unavailable

19

HARNESS-TAILLIGHT Substituted by 2460399

2460226

Unavailable

20

FUEL LINE-50FT.PKG. Substituted by 8450003-1525

2870563

Unavailable

21

SPRING, TANK

7042033

Unavailable

22

SENDING UNIT

2410011

Unavailable

23

CABLE, INDICATOR

4010077

Unavailable

24

CABLE,GND.(SEND.UNIT)

4010079

Unavailable

25

RECTIFIER, FUEL

4060094

$17.46

26

HDWE.PKG,SEND.UNIT

2410012

Unavailable

27

GROMMET

5410644

Unavailable

28

RING, COMPRESSION(10)

7080402

$1.60

29

FOAM, FILLER

5810201

Unavailable
