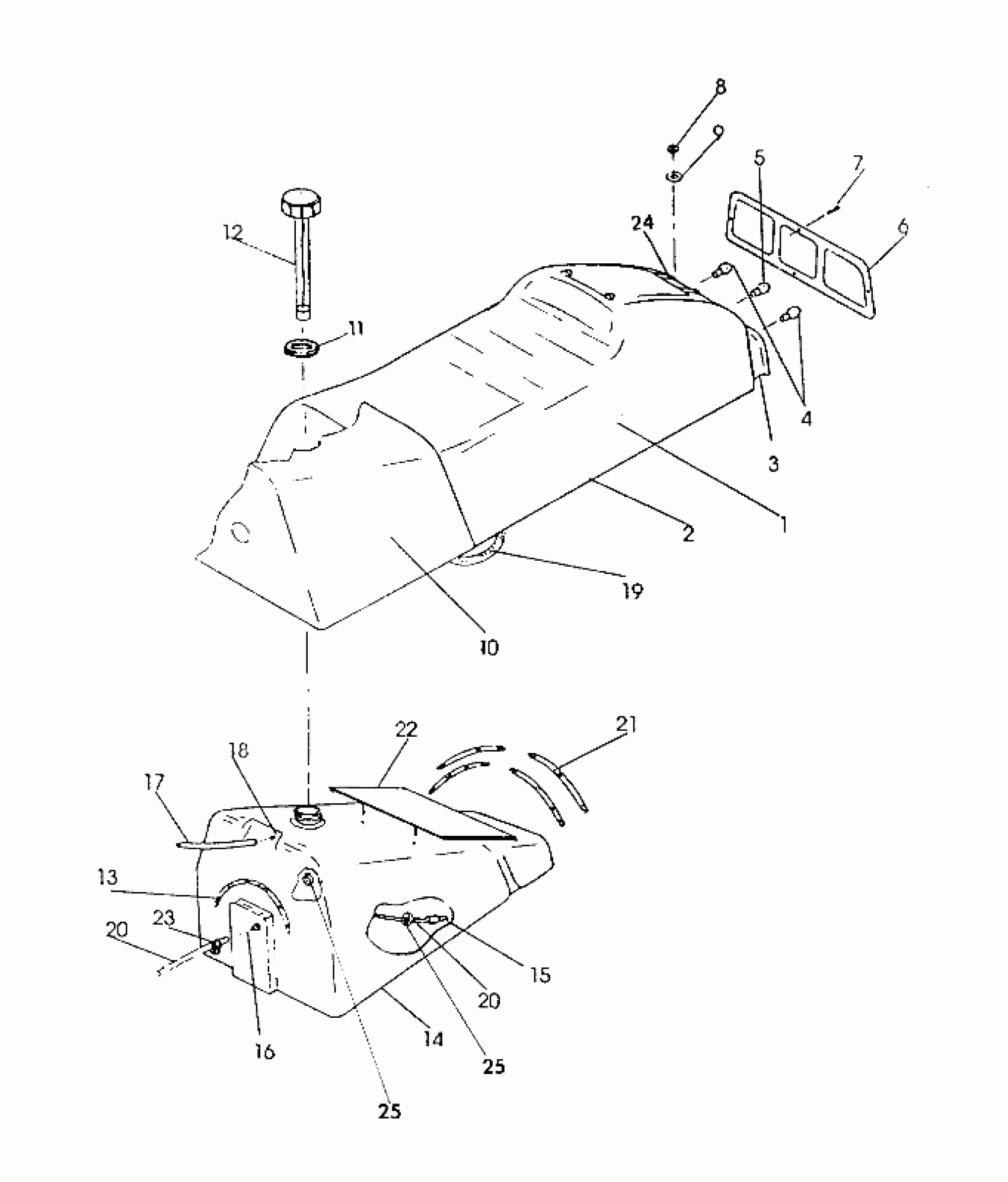

Polaris 500 - 0920764 SEAT/GAS TANK ASSEMBLY 500 (4921252125005A) Diagram
#
Description
Price
1
SEAT ASM,('92 500) Substituted by 2200751 (Incl. 2-7,21,22)
2681529
Unavailable
2
COVER,SEAT('92-500) Substituted by 2200741
2681530
Unavailable
3
HOUSING,TAILLIGHT
5430425
Unavailable
4
BULB,TAILLIGHT(10)
4030024
$4.84
5
BULB, BRAKELIGHT
4030019
Unavailable
6
LENS,TAILLIGHT
5430423
Unavailable
7
SCREW(10)
7511840
Unavailable
8
NUT-LOCK(10)
7542122
$1.49
9
WASHER(10)
7558221
$2.39
10
COVER,TANK(92-500) Substituted by 2200741
2681531
Unavailable
11
GASKET, GAS CAP
5810513
$8.89
12
GAUGE, GAS
2511198
Unavailable
13
SPRING,TANK,(10)
7042020
$13.75
14
TANK ASM,FUEL
2511199
Unavailable
15
FUELPICKUP,W/STRAINER
7052037
$12.94
16
FITTING - OUTLET(10)
7052023
$24.99
17
KIT-TANK VENT
2200190
Unavailable
18
VENT FITTING,TANK Substituted by 5430579
5430669
Unavailable
19
HARNESS-TAILLIGHT Substituted by 2460399
2460226
Unavailable
20
FUEL LINE-50FT.PKG. Substituted by 8450003-1525
2870563
Unavailable
20
FUEL LINE-50FT.PKG. Substituted by 8450003-1525
2870563
Unavailable
21
SPRING, TANK
7042033
Unavailable
22
INSERT,TANKCOVER
5850098
Unavailable
23
CLAMP-HOSE, (LARGE GREEN)
7080307
$1.49
24
BUCKLE&STRAP
2681291
Unavailable
25
RING, COMPRESSION(10)
7080402
$1.60
25
RING, COMPRESSION(10)
7080402
$1.60
