OIL TANK/AIR BOX ASSEMBLY 500 and 500 Classic (4921252125039A)

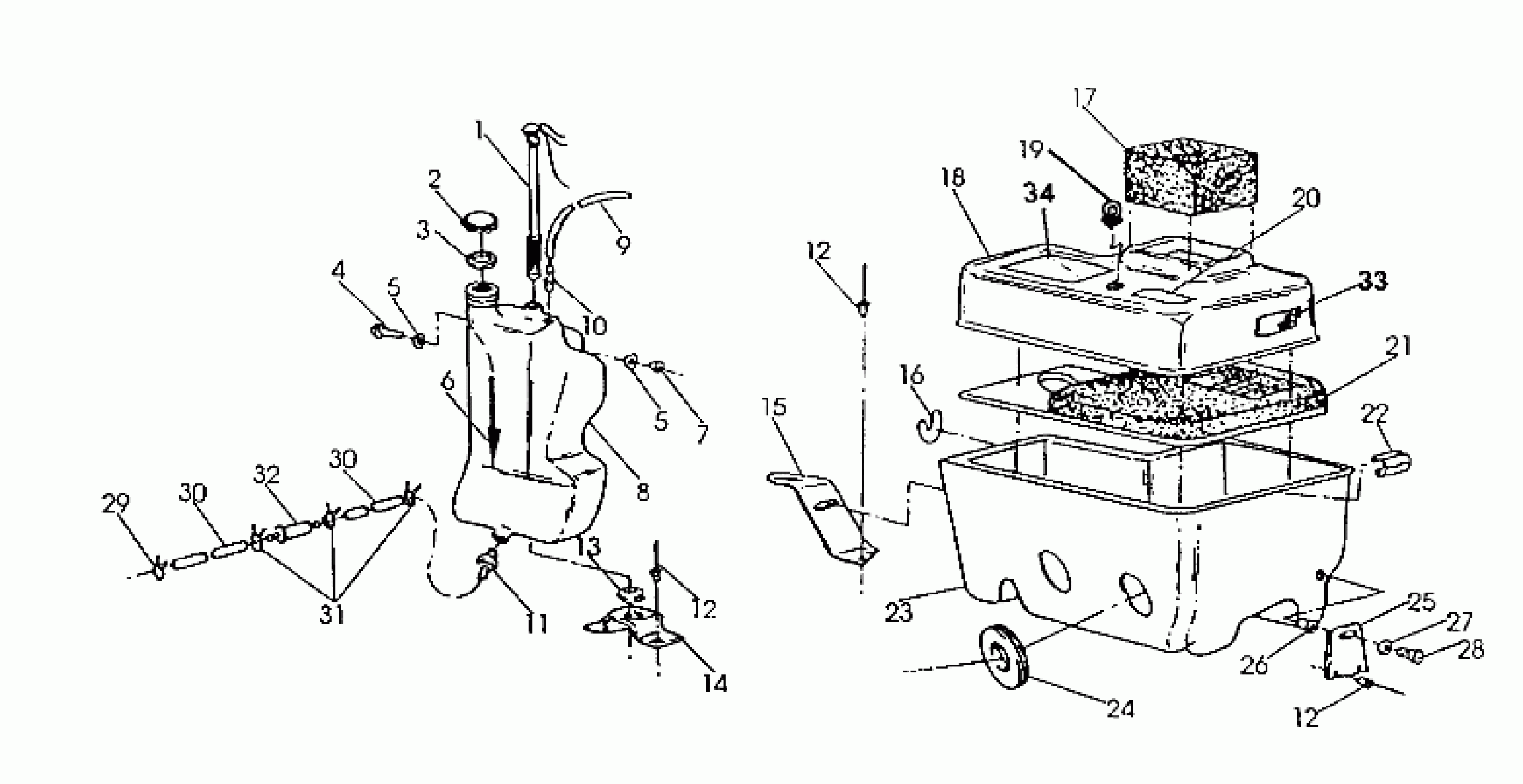

Polaris 500 - 0920764 OIL TANK/AIR BOX ASSEMBLY 500 and 500 Classic (4921252125039A) Diagram
#
Description
Price
1
SENSOR,OIL LEVEL,W/CONN. Substituted by 4040040
4040016
$72.84
2
CAP,OIL TANK
5430779
$14.56
3
GASKET-OIL CAP
5810141
$2.39
4
BOLT(10)
7512240
$3.99
5
WASHER,WROUGHT(10)
7558302
$1.59
5
WASHER,WROUGHT(10)
7558302
$1.59
6
DECAL, OIL LEVEL [No Longer Available]
7072160
Unavailable
7
NUT-LOCK(10)
7542122
$1.49
8
TANK, OIL
5430997
Unavailable
9
VENT LINE,1/8,BULK Substituted by 8360009-600
8360009
Unavailable
10
VENT-TANK
5430579
Unavailable
11
FITTING, OUTLET
7052042
$8.99
12
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
12
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
12
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
13
GROMMET RUBBER
5410021
Unavailable
14
BRACKET
5223985
Unavailable
15
BRKT,AIR SILENCER,BLK.
5223973-067
Unavailable
16
DECAL,SHUT-OFF VALVE [No Longer Available]
7072151
Unavailable
17
INTAKE ASM, FOAM
1253107
$36.41
18
COVER, SILENCER
5430920
$61.99
19
CLAMP,WIRE ROUTING(10)
7080409
$2.39
20
DECAL,CAUTION(AIR BOX) [No Longer Available]
7072891
Unavailable
21
BAFFLE ASM.
1253102
$64.75
22
CLIP, AIR BOX,(10)
7670055
$7.99
23
SILENCER,INTAKE(DRILLED) Substituted by 5430955
5431112
Unavailable
24
Boot
5410271
Unavailable
25
BRACKET, SILENCER
5211274
$9.70
26
NUT-WELL(10) (500)
7541923
$5.59
27
WASHER-1/4X1/2X.025 EXT TTH-Y (500)
7552604
$1.59
28
SCREW(10) (500)
7512279
$1.49
29
CLAMP-HOSE(10)
7080134
Unavailable
30
VENT LINE,1/8,BULK Substituted by 8360009-600
8360009
Unavailable
30
VENT LINE,1/8,BULK Substituted by 8360009-600
8360009
Unavailable
31
CLAMP-HOSE, (LARGE GREEN)
7080307
$1.49
32
FILTER,SMALL,IN-LINE,(10)
2530009
$5.65
33
DECAL, GREASING [No Longer Available]
7073426
$7.27
34
DECAL,COOLING SYSTEM [No Longer Available]
7072131
Unavailable
