HOOD ASSEMBLY 500 and 500 Classic (4921252125011A)

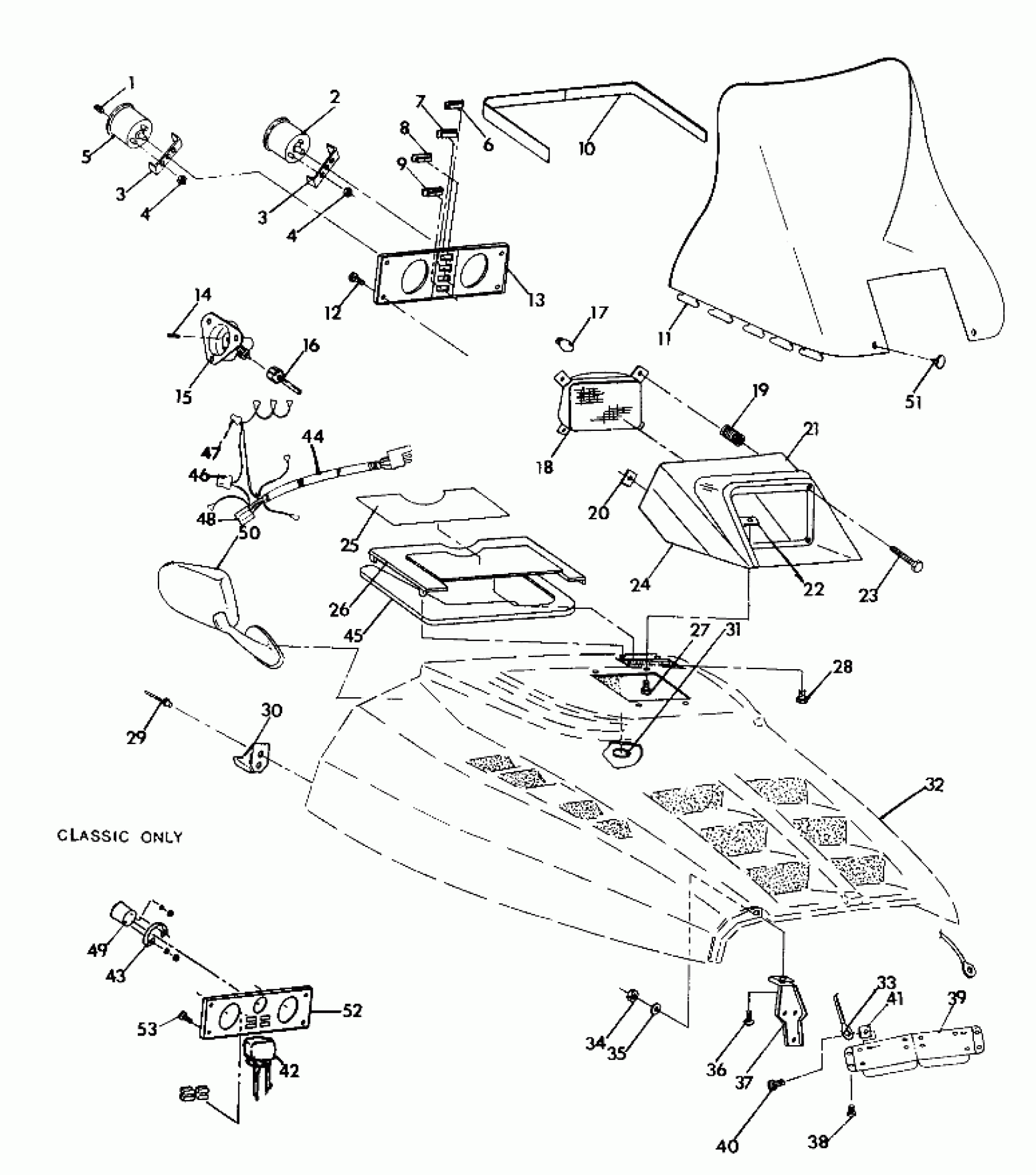

Polaris 500 - 0920764 HOOD ASSEMBLY 500 and 500 Classic (4921252125011A) Diagram
#
1
KNOB,TRIP ODOMETER
3280103
$3.83
2
TACHOMETER (Incl. 3,4)
3280093
Unavailable
3
BRACKET
3280098
Unavailable
3
BRACKET
3280098
Unavailable
4
NUT
3280063
Unavailable
4
NUT
3280063
Unavailable
5
SPEEDOMETER (Incl. 3,4)
3280092
$111.99
6
INDICATOR'TEMP'WARN.
4040011
$32.37
7
INDICATOR'LOW-OIL'WARN.
4040012
Unavailable
8
INDICATOR'HI-BEAM'WARN.
4040013
Unavailable
9
INDICATOR,'ACC'WARN.
4040014
Unavailable
10
PAD,W/S,LH,BLACK
5810437
Unavailable
10
PAD,W/S,RH,BLACK
5810438
$1.67
11
WINDSHIELD,SMOKE,STD(LIQ)
5431144
$134.99
12
SCREW,SCKT.HD.CAP(10)
7512008
Unavailable
13
BEZEL, INST. (500)
5430924
Unavailable
14
SQ. KEY SPEEDOMETER,(10)
3280017
$13.75
15
ADAPTER,DRIVE,W/ZERK
3280116
$101.17
16
CABLE,SPEEDO.
3280094
$60.70
17
BULB,QUARTZ.H/L,INDY
2870448
$24.99
18
HEADLIGHT ASM.
4032040
Unavailable
19
SPRING-ADJ
4032002
Unavailable
20
NUT, SPEED(10)
7670056
Unavailable
21
HSG,INST,TOP,BLK
5430923-070
Unavailable
22
NUT, SPEED(10)
7670057
$1.49
23
SCREW, ADJ.(10)
4032003
Unavailable
24
HSG,INST.BOTT.BLK.
5430922-070
Unavailable
25
DECAL,DASH WARNING [No Longer Available]
7072870
Unavailable
26
PANEL,INTAKE,BLK Substituted by 2620078-070 (500)
5431195-070
Unavailable
26
PANEL,INTAKE,BLUE Substituted by 2620078-145 (Classic)
5431195-145
Unavailable
27
SCREW, SEMS(10)
7512283
$3.99
28
SCREW(10)
7511840
Unavailable
29
RIVET(50)
7621334
$1.49
30
CUP, HOOD LATCH,(10)
5430733
$4.84
31
O RING,(HEAVY),(10) Substituted by 5410970
5410387
$1.19
32
HOOD,BLACK,INDY Substituted by 2631574-070 (500)
5431194-070
Unavailable
32
HOOD,CLASSIC&RXL Substituted by 2631574-145 (Classic)
5431194-145
Unavailable
33
CABLE,HD.RETAINER
7080360
$24.27
34
NUT-LOCK(10)
7542122
$1.49
35
WASHER,WROUGHT(10)
7558302
$1.59
36
BOLT-CARRIAGE(10)
7512263
$3.99
37
HINGE ASM,HD,BLK
2635005-067
$16.67
38
SCREW(10)
7511861
Unavailable
39
PLATE,RE-INF.,(HD.)
5222105
$49.51
40
SCREW(10)
7511989
Unavailable
41
NUT, SPEED(10) (#10-24V)
7670056
Unavailable
42
RECTIFIER, FUEL
4060094
$17.46
43
HDWE.PKG,FUEL INDIC.
3280119
$24.79
44
HARNESS, HEADLIGHT
2460320
Unavailable
45
SEAL, INTAKE
5810597
Unavailable
46
Housing
4020115
$1.59
47
HOUSING
4020114
Unavailable
48
HOUSING
4020052
Unavailable
49
INDICATOR,FUEL LEVEL
3280118
$53.59
50
PR,MIRRORS,R.VIEW
2870938
Unavailable
51
RIVET,(PLASTIC LOK)(50) Substituted by 7621509
7621505
$1.19
52
BEZEL, INSTRUMENT (Classic)
5431308
Unavailable
