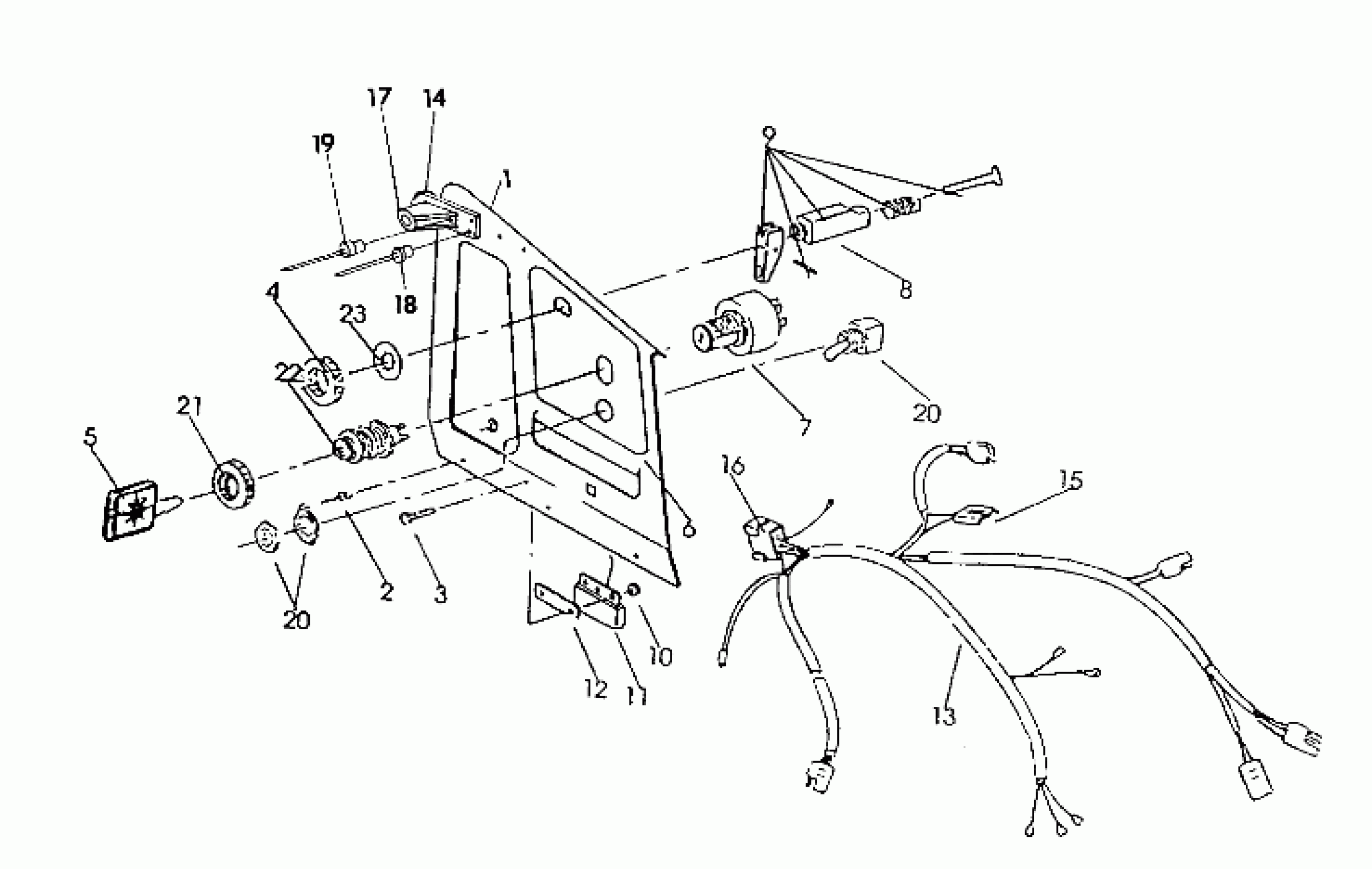

Polaris 500 - 0920764 CONSOLE 500 and 500 Classic (4921252125019A) Diagram
#
Description
Price
1
CONSOLE
5222756-067
Unavailable
2
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
3
SCREW(10)
7512007
$3.99
4
Nut
7080229
$19.99
5
KEY,IGNITION,W/CAP [Cannot Purchase as Assembly]
5410611
Unavailable
6
DECAL, CONSOLE [No Longer Available] (500)
7072973
Unavailable
6
DECAL,CONSOLE(500CL) [No Longer Available] (Classic)
7073074
Unavailable
7
SWITCH,IGN.(E/S) Substituted by 2200358 (Classic)
4110110
$76.89
8
Cable, Choke Control
7080290
$105.22
9
KIT-CHOKE CONTROL
2200188
$24.27
10
NUT(10)
7541925
$1.49
11
REGULATOR, VOLTAGE
4060092
Unavailable
12
HEAT SINK
5210650
Unavailable
13
HARNESS,MAIN WIRE (500)
2460312
Unavailable
13
HARNESS, WIRE(CLASSIC) Substituted by 2460385 (Classic)
2460348
Unavailable
14
BRKT, ROPE GUIDE Substituted by 5222682-067
5222682
Unavailable
15
CONNECTOR, BRAKE SWITCH
4020112
Unavailable
15
TERMINAL
4020113
Unavailable
16
HOUSING,W/RECEPTACLES
2200039
Unavailable
17
GUIDE, RECOIL
5431385
$10.51
18
RIVET Substituted by 7661638
7661625
$1.19
19
RIVET,(50)
7621477
$1.19
20
SW,GRIP,HEATER-HI/LO (Classic)
4110113
$70.39
20
SW,GRIP,HEATER-HI/LO (Classic)
4110113
$70.39
21
NUT-IGNITION SWITCH (500)
7542807
Unavailable
21
NUT, IGN.SWITCH(10) (Classic)
7543101
Unavailable
22
SWITCH, IGN. Substituted by 2200357 (500)
4110111
Unavailable
23
WASHER-LOCK(10)
7571610
$3.99
23
KIT,IGN.SWITCH (Classic(Incl.6-9))
2200358
$76.89
23
KIT,IGN. SWITCH (500)(Incl.6-9) Note:When ordering ignition key PN 5410611 be sure to specify if for an A,B,C,D, or E switch Letter code will be labeled on underside of switch body behind console.
2200357
Unavailable
