CARBURETOR 500 and 500 Classic (4921252125047A)

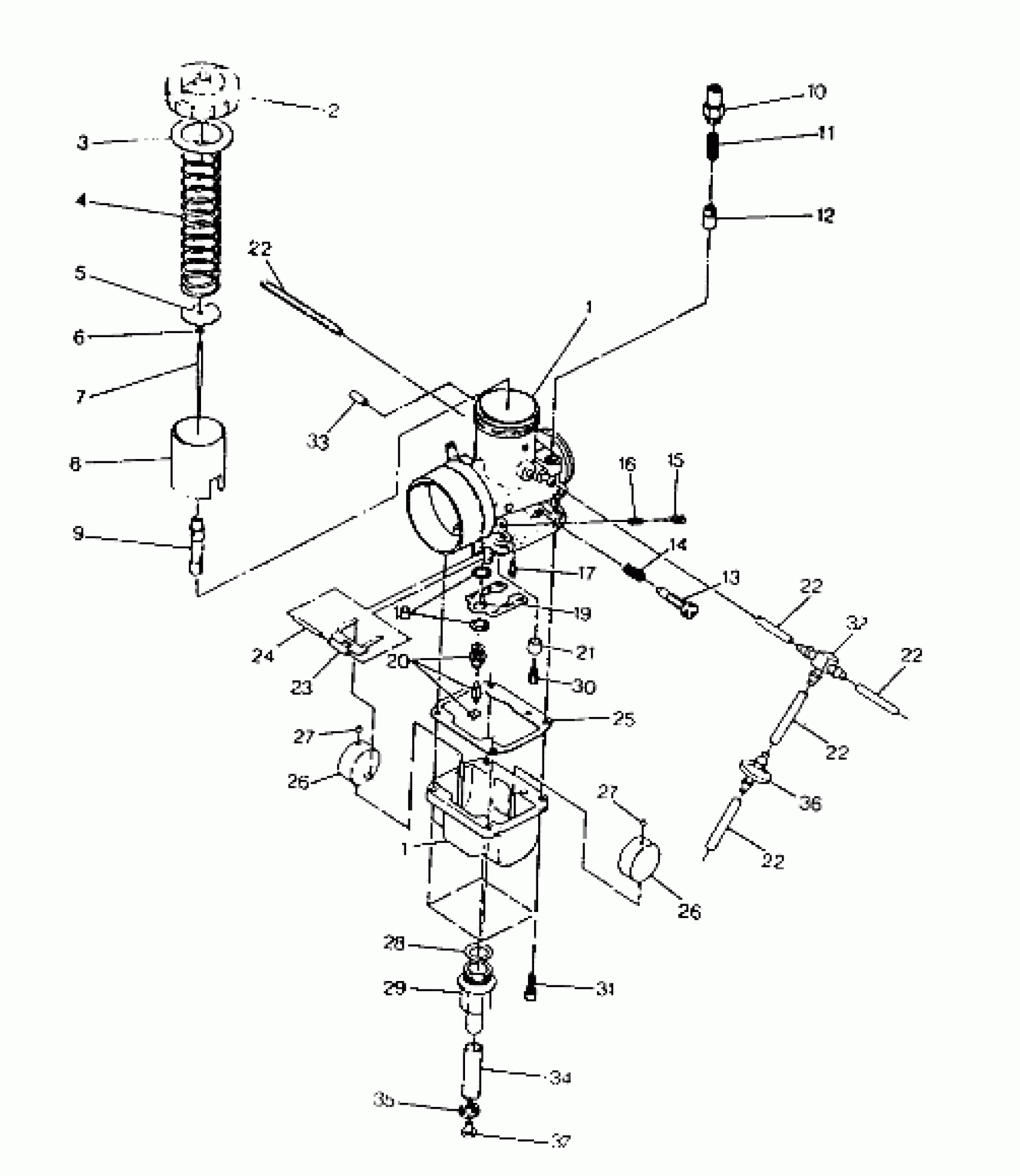

Polaris 500 - 0920764 CARBURETOR 500 and 500 Classic (4921252125047A) Diagram
#
1
CARBURETOR (Incl. 2-37)
3130456
Unavailable
1
CARBURETOR (Incl. 2-37)
3130456
Unavailable
2
TOP (Incl. 3)
3130061
Unavailable
3
GASKET
-------
Unavailable
4
SPRING,THROTTLE
3130444
Unavailable
5
PLATE, THROTTLE
3130054
$6.46
6
E RING(10) Substituted by 3130508
3130003
Unavailable
7
NEEDLE,JET,(6F9-3) (6F9-3)
3130378
Unavailable
8
VALVE, THROTTLE,2.5
3130454
Unavailable
9
JET,NEEDLE,P-8 (P-8)
3130382
Unavailable
10
HOLDER,GUIDE
3130199
$28.32
11
SPRING,PLUNGER
3130006
$8.89
12
PLUNGER ASM, STARTER
3130328
$32.37
13
SCREW,THROTTLE STOP
3130009
$19.99
14
SPRING,THROTTLE ADJ.
3130010
$8.89
15
SCREW,AIR
3130011
$19.99
16
SPRING,AIR ADJUST
3130012
$8.89
17
JET, IDLER H30 Substituted by 3130065
3130331
Unavailable
18
WASHER(10)
3130047
$4.84
19
PLATE
3130243
Unavailable
20
VALVE ASM,NEEDLE Substituted by 3130643
3130046
$56.65
21
RING,CARB
3130232
Unavailable
22
HOSE [No Longer Available]
3130241
Unavailable
22
HOSE [No Longer Available]
3130241
Unavailable
22
HOSE [No Longer Available]
3130241
Unavailable
22
HOSE [No Longer Available]
3130241
Unavailable
22
HOSE [No Longer Available]
3130241
Unavailable
23
ARM,FLOAT
3130048
Unavailable
24
PIN, FLOAT Substituted by 3130235
3130240
$8.89
25
GASKET,FLOAT CHAMBER
3130236
$12.13
26
FLOAT ASM
3130021
$40.46
26
FLOAT ASM
3130021
$40.46
27
CAP,(10)
3130237
$4.03
27
CAP,(10)
3130237
$4.03
28
O RING
3130239
Unavailable
29
FITTING,SEDIMENT Substituted by 3130573
5020476
$10.63
30
JET,MAIN,HX.HD#270(10)
3130130
$7.27
31
SCREW
3130056
$3.19
32
FITTING, TEE,(10)
7052048
$3.99
33
CAP,VACUUM FIT
3130379
$6.63
34
FUEL LINE-50FT.PKG. Substituted by 8450003-1525 (Cut to Fit)
2870563
Unavailable
35
CLAMP-HOSE,(10)
7080236
$1.59
36
CHECKVALVE,VENT Substituted by 7051011
7052047
Unavailable
37
PLUG, TRAP Substituted by 5431893
5431001
Unavailable
