BRAKE and CHAINCASE 500 and 500 Classic (4921252125027A)

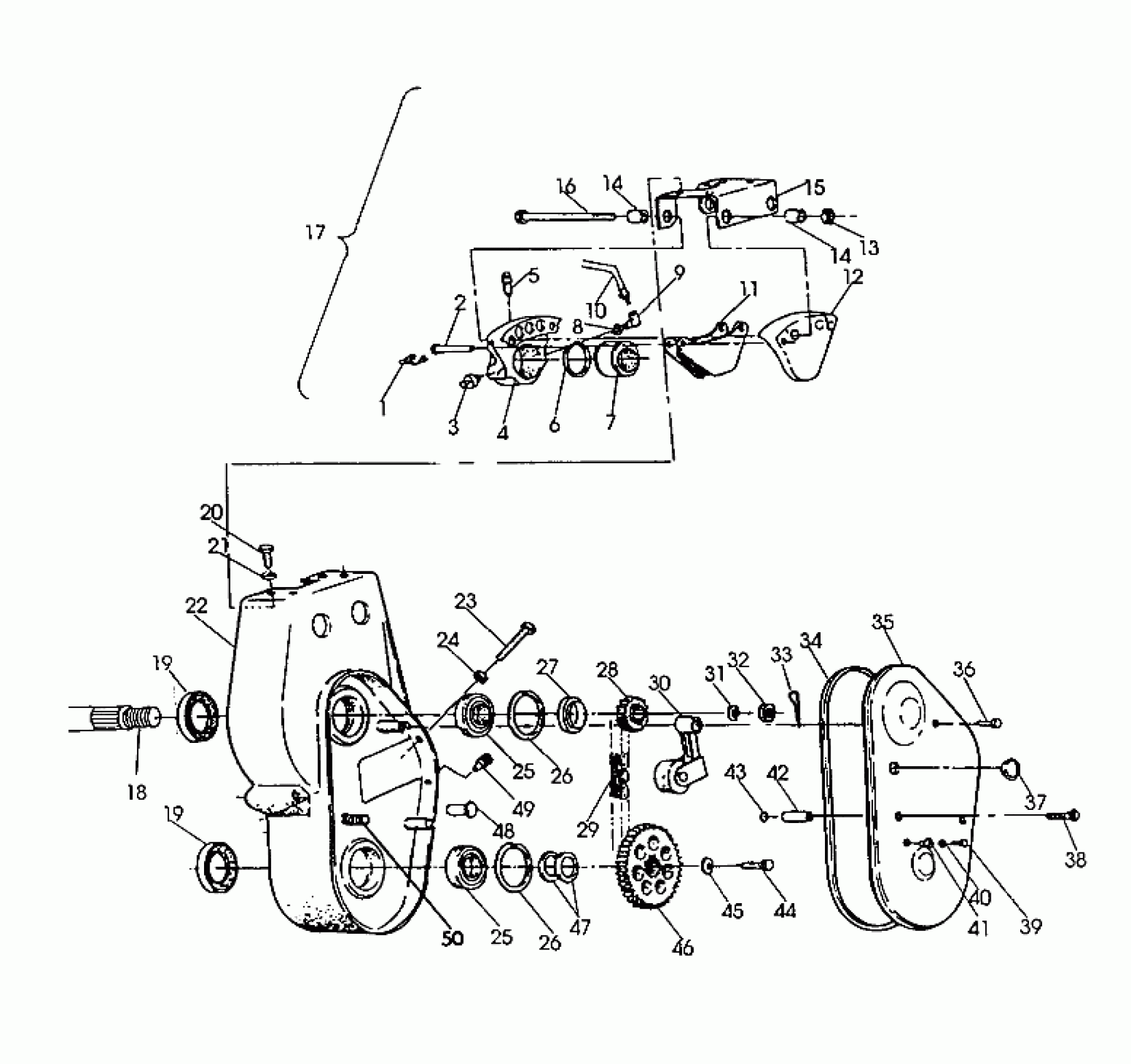

Polaris 500 - 0920764 BRAKE and CHAINCASE 500 and 500 Classic (4921252125027A) Diagram
#
1
CLIP-SPRING
1930562
Unavailable
2
PIN,PAD RETAINING
1930563
Unavailable
3
SWITCH-STOPLIGHT
4110046
Unavailable
4
CALIPER ASM, BRAKE Substituted by 1930556
1930566
Unavailable
5
SCREW-BLEEDER
1930564
Unavailable
6
SEAL-PISTON
1930567
Unavailable
7
PISTON
1930568
Unavailable
9
ELBOW
7052058
Unavailable
10
LINE,BRAKE
1930692
Unavailable
11
PAD, BRAKE
1930569
Unavailable
12
CASTING-CARRIER
1930570
Unavailable
13
NUT
1930558
Unavailable
14
BUSHING
1930559
Unavailable
14
BUSHING
1930559
Unavailable
15
BRACKET
1930560
Unavailable
16
BOLT-BRIDGE
1930561
Unavailable
17
CALIPER ASM, BRAKE (Incl. 1-16)
1930556
Unavailable
18
JACKSHAFT ASM.
1332135-067
Unavailable
19
SEAL-OIL
3610030
$20.22
19
SEAL-OIL
3610030
$20.22
20
BOLT(10)
7512240
$3.99
21
WASHER, SPLIT LOCK(10)
7552804
$3.19
22
CHAINCASE
5130795
Unavailable
23
SCREW(10)
7515511
$3.99
24
NUT(10)
7542404
$1.59
25
BEARING,CHAINCASE *
3514306
Unavailable
25
BEARING,CHAINCASE *
3514306
Unavailable
26
RET.RING-TRUARC(N5000-206)-P
7718406
$6.39
26
RET.RING-TRUARC(N5000-206)-P
7718406
$6.39
27
SPACER, SPROCKET
5010270
Unavailable
28
SPROCKET 21 T (500)
3221035
Unavailable
28
SPKT, 20T (Classic)
3221053
Unavailable
29
CHAIN 66 PITCH
3224024
Unavailable
30
TIGHTENER ASM. Substituted by 1332213
1332078
$159.99
31
WASHER, SLOTTED(10)
7571620
$7.19
32
NUT, SLOTTED(10)
7542810
$3.19
33
COTTER PIN(10)
7661401
$1.49
34
GASKET-CHAINCASE
5410277
$24.99
35
COVER,CHAINCASE
5222579
Unavailable
36
BOLT(10)
7512246
Unavailable
37
PLUG,RUBBER-HOLE,.5DIA(10) Substituted by 5411426
5410012
Unavailable
38
BOLT, S.S.(10)
7512293
Unavailable
39
SCREW(10)
7511909
$3.99
40
WASHER, FLAT(10)
7558201
$5.79
41
NUT-WELL(10)
7541918
Unavailable
42
STAND-OFF,C/C COVER
5333033
Unavailable
43
O RING
5410565
Unavailable
44
SCREW(10)
7515350
$3.97
45
WASHER(10)
7571618
$6.39
46
SPROCKET 39 T
3222034
Unavailable
47
WASHER SPECIAL(10)
7556509
$1.59
48
CAP, STUD COVER
5020569
Unavailable
49
PLUG, MAGNETIC
7051518
$12.35
50
BOLT(10) *Red seal of bearing to be positioned opposite the cover side of the case.
7515477
$34.99
