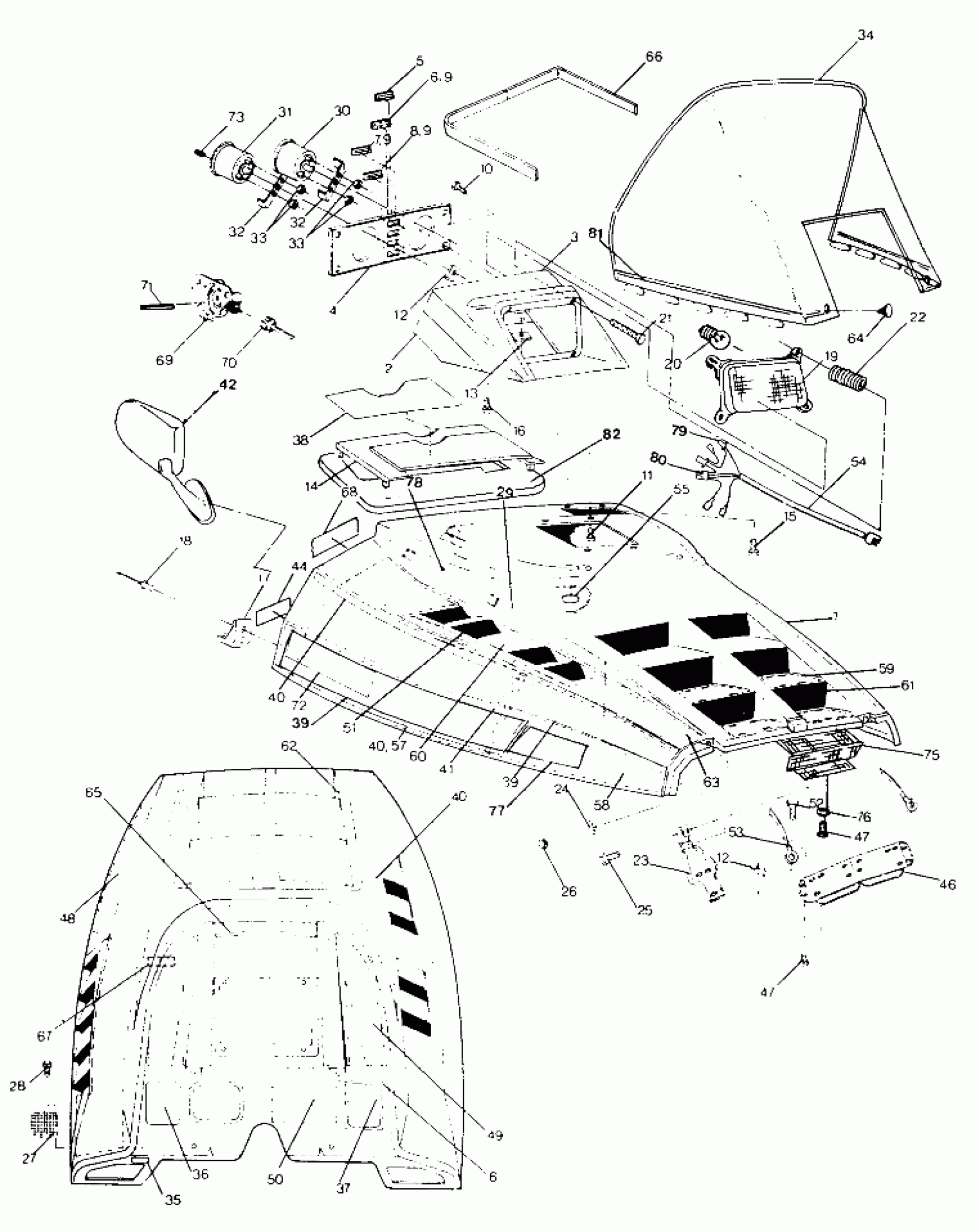

Polaris 500 - 0910764 HOOD 500 and 500 Classic (4919251925003A) Diagram
#
1
HOOD,CLASSIC/RXL Substituted by 5431194-145
5431079-145
Unavailable
1
HOOD,BLACK(INDY) Substituted by 5431194-070
5431079-070
Unavailable
2
HSG,INST.BOTT.BLK.
5430922-070
Unavailable
2
HSG,INST,BOTTOM Substituted by 5430922-070
5431051
Unavailable
3
HSG,INST,TOP,BLK
5430923-070
Unavailable
3
HSG,INST, TOP Substituted by 5430923-070
5431052
Unavailable
4
BEZEL, INST.
5430924
Unavailable
5
INDICATOR'TEMP'WARN.
4040011
$32.37
6
INDICATOR'LOW-OIL'WARN.
4040012
Unavailable
6
INDICATOR'LOW-OIL'WARN.
4040012
Unavailable
7
INDICATOR'HI-BEAM'WARN.
4040013
Unavailable
8
INDICATOR,'ACC'WARN.
4040014
Unavailable
9
PLUG,INDIC.HOLE
5430967
$5.65
9
PLUG,INDIC.HOLE
5430967
$5.65
9
PLUG,INDIC.HOLE
5430967
$5.65
10
SCREW,SCKT.HD.CAP(10)
7512008
Unavailable
11
SCREW, SEMS(10)
7512283
$3.99
12
NUT, SPEED(10)
7670056
Unavailable
12
NUT, SPEED(10)
7670056
Unavailable
13
NUT, SPEED(10)
7670057
$1.49
14
PANEL, AIR INTAKE Substituted by 5431195-070
5431078-070
Unavailable
14
PANEL, AIR INTAKE Substituted by 5431195-145
5431078-145
Unavailable
15
SCREW(10)
7511840
Unavailable
16
SCREW(10)
7512009
Unavailable
18
RIVET(50)
7621334
$1.49
19
HEADLIGHT ASM. (Incl. 20-22)
4032040
Unavailable
20
BULB,QUARTZ.H/L,INDY
2870448
$24.99
20
BULB, H/L
4030028
$29.99
20
HOLDER-CAP
4032004
Unavailable
21
SCREW, ADJ.(10)
4032003
Unavailable
22
SPRING-ADJ
4032002
Unavailable
23
HINGE ASM,HD. Substituted by 2635005-067
2635005
Unavailable
24
WASHER,WROUGHT(10)
7558302
$1.59
25
BOLT-CARRIAGE(10)
7512263
$3.99
26
NUT-LOCK(10)
7542122
$1.49
27
SCREEN, HOOD Substituted by 5211117-067
5211117
Unavailable
28
SCREW(10)
7511858
$3.99
29
DECAL,LH,HD.SIDE TL.(91SP) [No Longer Available] (500 SP)
7072967
Unavailable
29
DECAL,RH,HD.SIDE,TL.(91SP) [No Longer Available] (500 SP)
7072968
Unavailable
29
DECAL,LH,HD.TL.(91-500) [No Longer Available]
7072984
Unavailable
29
DECAL,RH,HD.TL.(91-500) [No Longer Available]
7072985
Unavailable
30
SPEEDOMETER (Incl. 32-33)
3280092
$111.99
31
TACHOMETER (Incl. 32-33
3280093
Unavailable
32
BRACKET
3280098
Unavailable
32
BRACKET
3280098
Unavailable
33
NUT
3280063
Unavailable
33
NUT
3280063
Unavailable
34
WINDSHIELD Substituted by 5431037
5431069
Unavailable
35
LABEL, 'U.S.A.'
7073024
Unavailable
36
DECAL,OPER.CAUT,SILVER [No Longer Available]
7072875
Unavailable
36
DECAL,OPER.CAUT.ENG. [No Longer Available]
7072492
Unavailable
37
DECAL,OPER.CAUT(FR)SILVER [No Longer Available]
7072877
Unavailable
37
DECAL,OPER.CAUT.(FR.) [No Longer Available]
7072493
Unavailable
38
DECAL,DASH WARNING [No Longer Available]
7072870
Unavailable
39
DECAL,RH HOOD TOP [No Longer Available] (500 SP)
7073027
Unavailable
39
DECAL,RH,HD.TOP(91CLASSIC) [No Longer Available]
7073041
Unavailable
39
DECAL,LH,HD.TOP(91CLASSIC) [No Longer Available]
7073040
Unavailable
39
DECAL,LH HOOD TOP [No Longer Available] (500 SP)
7073026
Unavailable
39
DECAL,RH,HD.TOP(91-500) [No Longer Available]
7072975
Unavailable
39
DECAL,LH,HD.TOP(91-500) [No Longer Available]
7072974
Unavailable
39
DECAL,RH HOOD TOP [No Longer Available] (500 SP)
7073027
Unavailable
39
DECAL,RH,HD.TOP(91CLASSIC) [No Longer Available]
7073041
Unavailable
39
DECAL,LH,HD.TOP(91CLASSIC) [No Longer Available]
7073040
Unavailable
39
DECAL,LH HOOD TOP [No Longer Available] (500 SP)
7073026
Unavailable
39
DECAL,RH,HD.TOP(91-500) [No Longer Available]
7072975
Unavailable
39
DECAL,LH,HD.TOP(91-500) [No Longer Available]
7072974
Unavailable
40
DECAL,LH,HOODSIDE(500SP) [No Longer Available] (500 SP)
7073028
Unavailable
40
DECAL,RH,HOODSIDE(500SP) [No Longer Available] (500 SP)
7073029
Unavailable
40
DECAL,RH,HD.SIDE(91-500) [No Longer Available]
7072979
Unavailable
40
DECAL,LH,HD.SIDE(91-500) [No Longer Available]
7072978
Unavailable
40
DECAL,LH,HOODSIDE(500SP) [No Longer Available] (500 SP)
7073028
Unavailable
40
DECAL,RH,HOODSIDE(500SP) [No Longer Available] (500 SP)
7073029
Unavailable
40
DECAL,RH,HD.SIDE(91-500) [No Longer Available]
7072979
Unavailable
40
DECAL,LH,HD.SIDE(91-500) [No Longer Available]
7072978
Unavailable
40
DECAL,LH,HOODSIDE(500SP) [No Longer Available] (500 SP)
7073028
Unavailable
40
DECAL,RH,HOODSIDE(500SP) [No Longer Available] (500 SP)
7073029
Unavailable
40
DECAL,RH,HD.SIDE(91-500) [No Longer Available]
7072979
Unavailable
40
DECAL,LH,HD.SIDE(91-500) [No Longer Available]
7072978
Unavailable
41
TAPE,FOIL,FOAM
5810405
Unavailable
42
PR,MIRRORS,R.VIEW Substituted by 2870938
2870626
Unavailable
44
LOGO, INDY SPECIAL (500 Special On
5431108
Unavailable
46
PLATE,RE-INF.,(HD.)
5222105
$49.51
47
SCREW(10)
7511861
Unavailable
47
SCREW(10)
7511861
Unavailable
48
FOAM, HOOD, RH
5810375
Unavailable
48
FOAM, HOOD, LH
5810374
Unavailable
49
FOAM, HOOD, CTR
5810376
Unavailable
50
FOAM, HOOD
5810389
Unavailable
51
TAPE,FOIL
5810395
Unavailable
52
SCREW(10)
7511989
Unavailable
53
CABLE,HD.RETAINER
7080360
$24.27
54
HARNESS, HEADLIGHT
2460320
Unavailable
54
HARNESS,HEADLIGHT Substituted by 2460349
2460315
Unavailable
55
O RING,(HEAVY),(10) Substituted by 5410970
5410387
$1.19
57
KIT,DECAL(500,'91) (Incl. 35-40, 43, 45)
2200365
Unavailable
57
KIT,DECAL,(500SP'91) [No Longer Available] (Incl. 35-40, 43, 45, 78) (500 SP)
2200367
Unavailable
57
KIT,DECAL(CLASSIC'91) [No Longer Available] (Incl. 35-40, 42, 43, 45, 68, 72) (500 Classic Only)
2200370
Unavailable
58
TAPE,FOIL,FOAM
5810407
Unavailable
59
TAPE,FOIL,LH
5810393
Unavailable
59
TAPE,FOIL,RH
5810394
Unavailable
60
TAPE,FOIL
5810396
Unavailable
61
TAPE,FOIL
5810397
Unavailable
62
TAPE,FOIL,LOUVER,PIPE SIDE
5810404
Unavailable
63
TAPE,FOIL,FOAM
5810406
Unavailable
64
CLIP-PLASTIC(10) Substituted by 7621505
7670041
Unavailable
65
DECAL,HOOD-H/L POD [No Longer Available]
7072676
Unavailable
66
PAD,W/S,LH,BLACK
5810437
Unavailable
66
PAD,W/S,RH,BLACK
5810438
$1.67
67
CLIP, WIRING,(10) Substituted by 7080665
4020035
Unavailable
68
LOGO,E/S,SILVER
5431073
Unavailable
69
ADAPTER,DRIVE Substituted by 3280116
3280095
Unavailable
70
CABLE,SPEEDO.
3280094
$60.70
71
SQ. KEY SPEEDOMETER,(10)
3280017
$13.75
72
LOGO, CLASSIC [No Longer Available]
5431254
Unavailable
73
KNOB,TRIP ODOMETER
3280103
$3.83
75
SCREEN,LH FR.LOUVER [No Longer Available]
5222428
Unavailable
75
SCREEN,RH FR.LOUVER [No Longer Available]
5222429
Unavailable
76
WASHER(10)
7555708
$3.99
77
DECAL,500,(91) [No Longer Available]
7072986
Unavailable
77
DECAL,FIVE HUNDRED [No Longer Available]
7073060
Unavailable
78
DECAL,L/C TWIN [No Longer Available]
7072943
Unavailable
79
CONNECTOR, TACH.
2200094
Unavailable
80
KIT HOUSING 2 CIRCUIT
2200095
Unavailable
81
DECAL,2FT,BLUE PINSTRIPE (500)
8330167
Unavailable
82
SEAL, INTAKE Substituted by 5810597
5810503
Unavailable
82
DECAL,LH,HOODSIDE(500SP) [No Longer Available]
7073028
Unavailable
82
DECAL,RH,HOODSIDE(500SP) [No Longer Available]
7073029
Unavailable
82
DECAL,W/S,500CLASSIC [No Longer Available]
8330168
Unavailable
