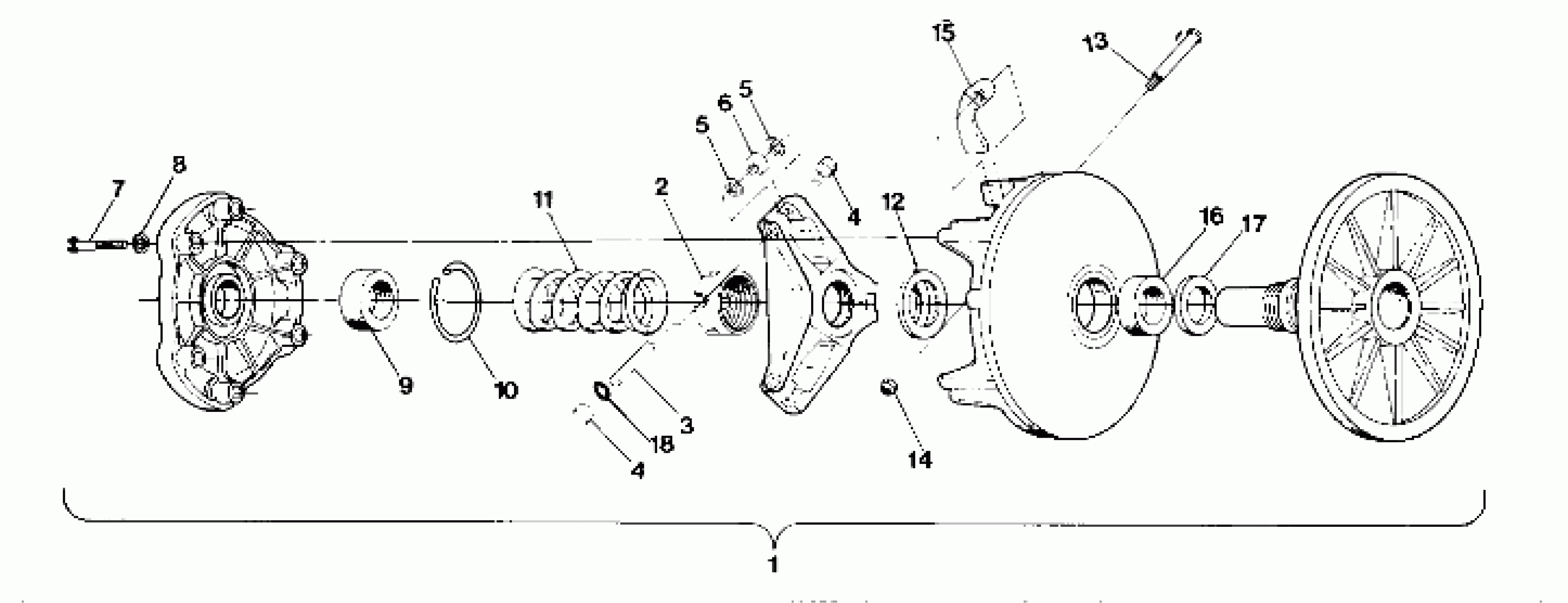

Polaris 500 - 0910764 DRIVE CLUTCH From Serial No. 1841612 (4919251925015B) Diagram

#

Description
Price

1

CLUTCH,DRIVE,#23 Substituted by 1321609 (Less 11, 15) (500 Classic Only)

1321493

Unavailable

1

CLUTCH,BASIC Substituted by 1321576 (Less 11, 15)

1321515

Unavailable

2

NUT-JAM

5020425

$23.99

3

PIN-ROLLER

5020422

$2.39

4

BUTTON, GUIDE,(10)

5430445

$6.39

4

BUTTON, GUIDE,(10)

5430445

$6.39

5

WASHER,MULTILUBE

5430945

$1.59

5

WASHER,MULTILUBE

5430945

$1.59

6

ASM-ROLLER AND BUSHING

1321457

$40.46

7

BOLT,(10)

7512265

$3.99

8

LOCK WASHER(10)

7552801

$1.59

9

BEARING, COVER,(10)

3576510

$9.59

10

RING-RETAINING,COVER

7710417

$1.49

11

SPRING-(SILVER) (Silver)

7041062

Unavailable

12

SPACER(10) (.050)

5210754

$3.19

12

SPACER(10) (.020)

5210752

$1.59

13

PIN-WEIGHT,HARDENED,1/4X2.00

7515105

$13.75

14

NUT FLEX LOC(10)

7541906

$3.19

15

WT/BUSH.ASM,10M(3) (1OM)

1321528

$40.46

16

SLEEVE, BEARING

3576502

$23.99

17

INSERT-MOVEABLE

5010188

$7.99

18

Kit - Shim, Drive Clutch

2200387

$24.27
