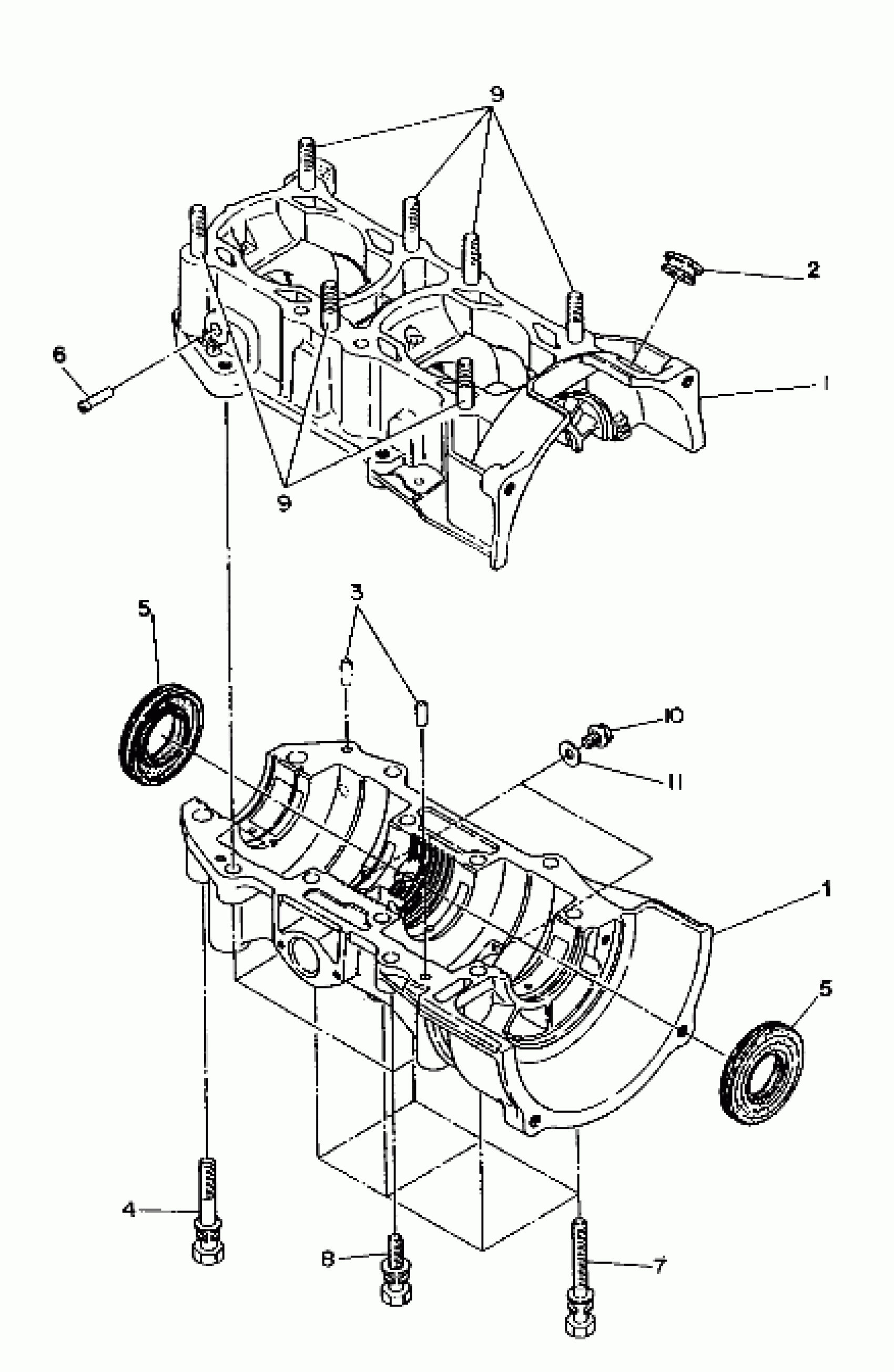

Polaris 500 - 0910764 CRANKCASE 500 and 500 Classic (4919251925023A) Diagram

#

Description

Price

1

CRANKCASE ASM. Substituted by 3084609 (Incl. 3-9)

3083793

Unavailable

1

CRANKCASE ASM. Substituted by 3084609 (Incl. 3-9)

3083793

Unavailable

2

GROMMET Substituted by 3082875

3082862

Unavailable

3

PIN,DOWEL(10) Substituted by 3080103

3083054

Unavailable

4

BOLT&WASHER ASM.

3084220

$8.79

5

OIL SEAL Substituted by 3083045

3082709

$36.41

5

OIL SEAL Substituted by 3083045

3082709

$36.41

6

PIPE, (PULSE) Substituted by 3083798 (Pulse)

3083567

Unavailable

7

BOLT W/WASHER

3080739

$6.39

8

BOLT&WASHER

3083078

Unavailable

9

STUD Substituted by 3084119

3080745

Unavailable

9

STUD Substituted by 3084119

3080745

Unavailable

10

BOLT, FLANGE(10) Substituted by 3087035

3083568

$3.85

11

GASKET, ALUM,(10) Substituted by 7555998

3082758

$1.19
