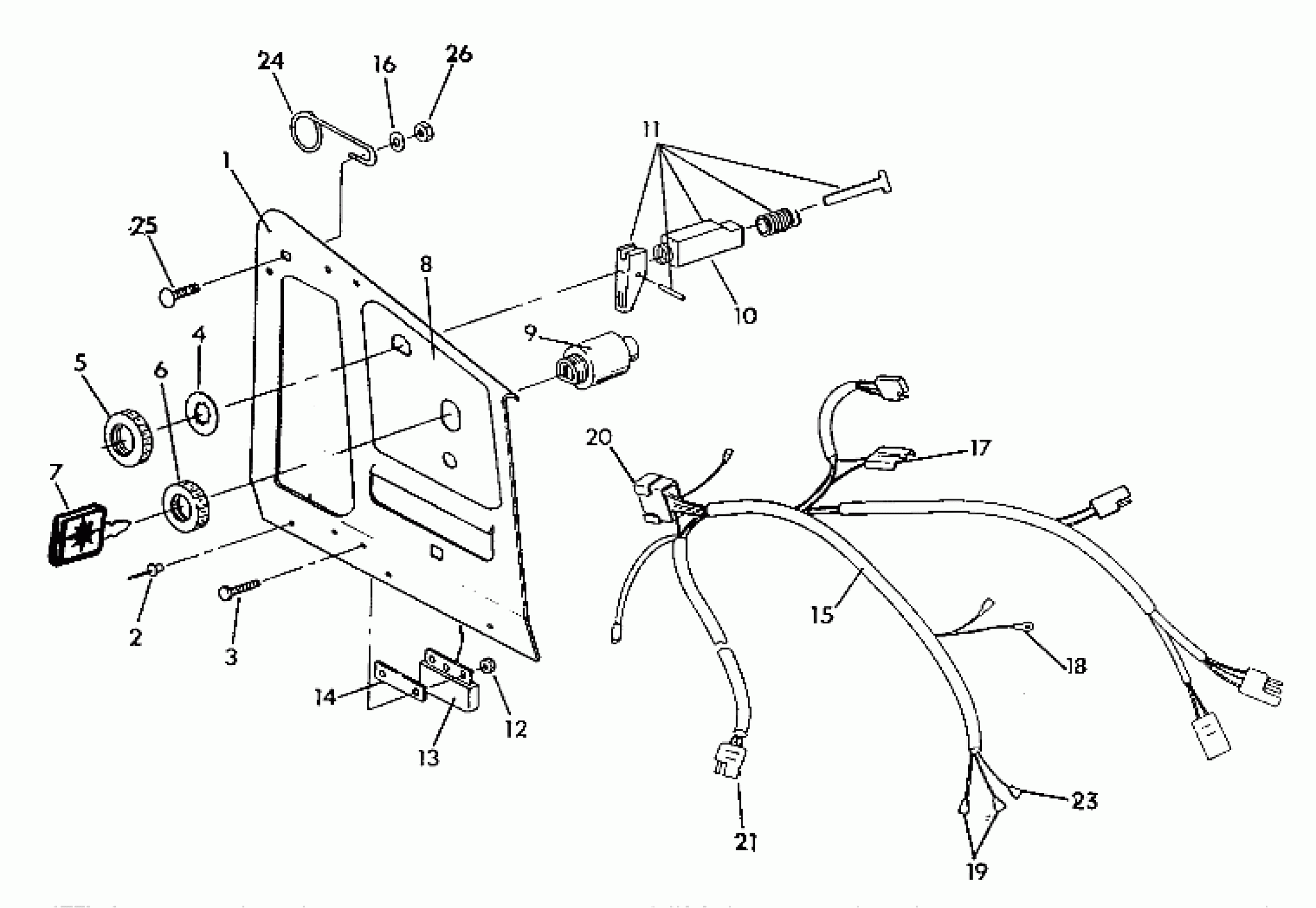

Polaris 500 - 0910764 CONSOLE 500 and 500 Classic (4919251925006A) Diagram
#
Description
Price
1
CONSOLE,BLK,'CLASSIC' Substituted by 5222495-067
5222495
Unavailable
2
POP RIVET(50)
7621425
$1.49
3
SCREW(10)
7512007
$3.99
4
WASHER-LOCK(10)
7571610
$3.99
5
Nut
7080229
$19.99
6
NUT-IGNITION SWITCH
7542807
Unavailable
6
NUT, IGN.SWITCH(10)
7543101
Unavailable
7
KEY,IGNITION,W/CAP [Cannot Purchase as Assembly]
5410611
Unavailable
8
DECAL, CONSOLE [No Longer Available]
7072973
Unavailable
8
DECAL,CONSOLE(500CL) [No Longer Available]
7073074
Unavailable
9
KIT,IGN. SWITCH
2200357
Unavailable
9
SWITCH,IGN.(E/S) Substituted by 2200358
4110110
$76.89
10
Cable, Choke Control (Incl. 5)
7080290
$105.22
11
KIT-CHOKE CONTROL
2200188
$24.27
12
NUT(10)
7541925
$1.49
13
REGULATOR - MINKS
4060071
Unavailable
14
HEAT SINK
5210650
Unavailable
15
HARNESS,MAIN WIRE
2460312
Unavailable
15
HARNESS,WIRE,(500CL)
2460317
Unavailable
16
WASHER,WROUGHT(10)
7558302
$1.59
17
CONNECTOR, BRAKE SWITCH
4020112
Unavailable
17
TERMINAL
4020113
Unavailable
18
TERMINAL, RING Substituted by 4020092
2200029
Unavailable
19
HOUSING 2 CIRCUIT W/REC [No Longer Available]
2200020
Unavailable
20
HOUSING,W/RECEPTACLES
2200039
Unavailable
21
HOUSING 3 CIRCUIT W/REC
2200022
Unavailable
23
SW,GRIP,HEATER-HI/LO
4110113
$70.39
24
MOUNT, RING RECOIL
5224441
Unavailable
25
BOLT-CARRIAGE(10)
7512263
$3.99
26
NUT-LOCK(10)
7542122
$1.49
26
KIT,IGN.SWITCH (Incl. 6, 7, 9)
2200358
$76.89
26
KIT,IGN. SWITCH (Incl. 6, 7, 9) NOTE: If only key is needed,order PIN 4110112 and specify if for an A, B, C, D or E switch. Letter code will be labeled on the switch body behind console.
2200357
Unavailable
