CHASSIS AND SEAT 500 and 500 Classic (4919251925001A)

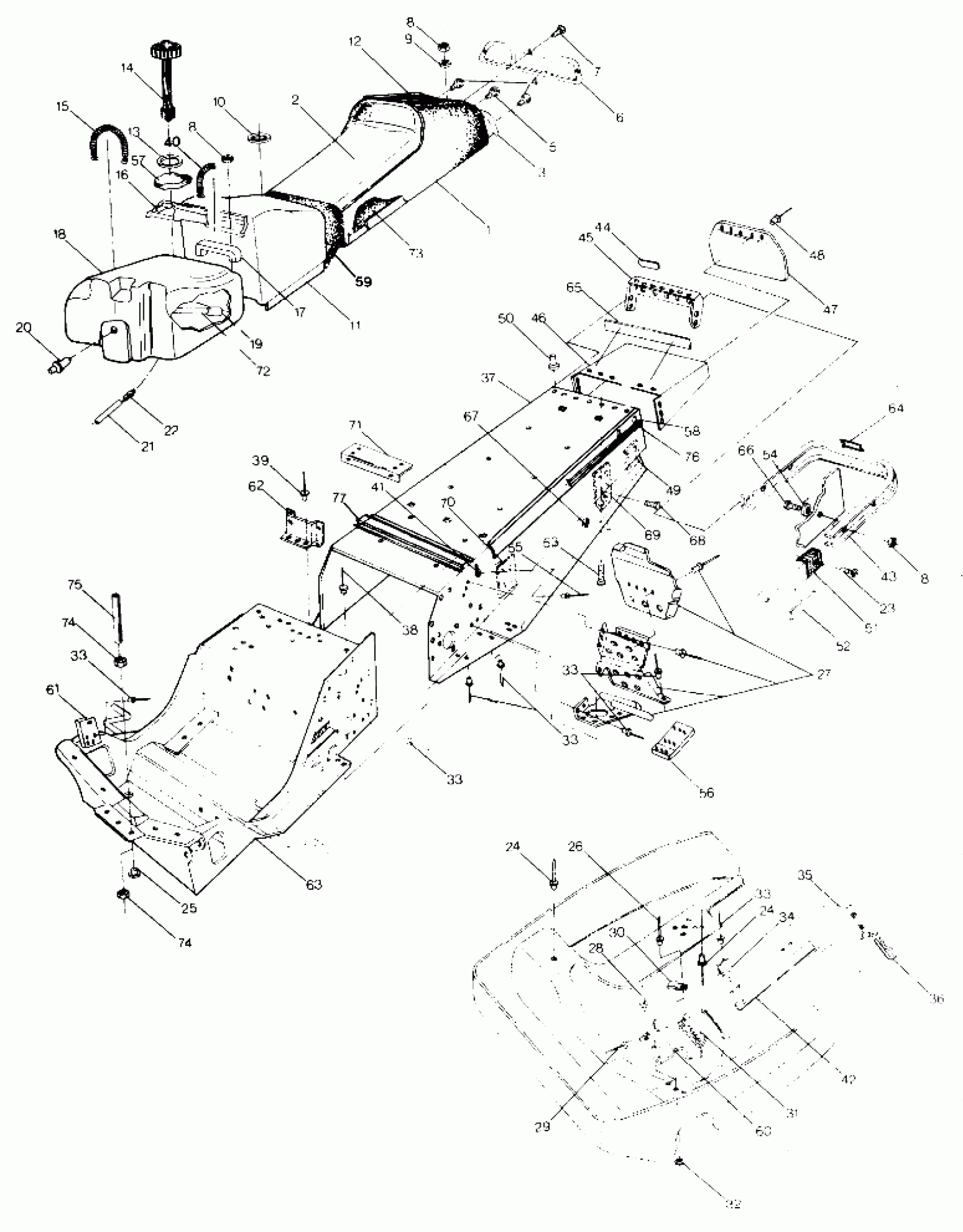

Polaris 500 - 0910764 CHASSIS AND SEAT 500 and 500 Classic (4919251925001A) Diagram
#
1
SEAT ASM. Substituted by 2200751 (Incl. 2-7, 12, 73) - CL
2681490
Unavailable
1
SEAT ASM,(500) Substituted by 2200751 (Incl. 2-7, 12, 73) - 500
2681484
Unavailable
2
COVER,SEAT,(SP) Substituted by 2200741
2681494
Unavailable
2
COVER,SEAT, (500) Substituted by 2200741
2681485
Unavailable
2
COVER,SEAT(CLASSIC) Substituted by 2200741
2681491
Unavailable
3
HOUSING,TAILLIGHT
5430425
Unavailable
4
BULB TAILLIGHT(10)
4030015
$4.03
5
BULB, BRAKELIGHT
4030019
Unavailable
6
LENS,TAILLIGHT
5430423
Unavailable
7
SCREW(10)
7511840
Unavailable
8
NUT-LOCK(10)
7542122
$1.49
8
NUT-LOCK(10)
7542122
$1.49
8
NUT-LOCK(10)
7542122
$1.49
9
WASHER(10)
7558221
$2.39
10
GROMMET,GAS TANK [No Longer Available]
5431190
Unavailable
11
COVER,TANK,(SP) Substituted by 2200741
2681495
Unavailable
11
COVER, TANK, (500) Substituted by 2200741
2681486
Unavailable
11
COVER,TANK,(CLASSIC) Substituted by 2200741
2681492
Unavailable
12
BUCKLE&STRAP
2681290
$4.78
12
RETAINER,LUGGAGE(10) [No Longer Available]
7080269
Unavailable
13
GASKET-GAS CAP Substituted by 5810513
5810142
Unavailable
14
CAP,GAS(HI.CAP.)
2511184
Unavailable
14
INSERT,FUEL TANK Substituted by 5850098
5850093
Unavailable
15
SPRING,TANK,(10)
7042020
$13.75
16
BRACE,TUNNEL REINF.
5222412
Unavailable
17
CUSHION,TANK H.D.
5420126
Unavailable
18
TANK, GAS Substituted by 2511199
5431130
Unavailable
19
FUELPICKUP,W/STRAINER
7052037
$12.94
20
FITTING - OUTLET(10)
7052023
$24.99
21
KIT-TANK VENT
2200190
Unavailable
22
VENT-TANK
5430579
Unavailable
23
SCREW(10)
7511863
$1.99
24
RIVET(50)
7621457
$1.49
24
RIVET(50)
7621457
$1.49
25
PLUG
7080288
Unavailable
26
POP RIVET(50)
7621402
$1.49
27
FOOTREST ASM,LH
2200250
Unavailable
27
FOOTREST ASM,RH
2200254
Unavailable
27
FOOTREST,LH,(650)
2200303
Unavailable
27
FOOTREST,RH,(650) [No Longer Available]
2200304
Unavailable
28
RIVET(50)
7621452
$1.49
29
RIVET, POP(50)
7621330
$1.49
30
CLIP, WIRING,(10) Substituted by 7080665
4020035
Unavailable
31
HINGE
5210728
Unavailable
32
WASHER,13/64X1/2X18GA,FL-Y
7558212
$1.49
33
RIVET Substituted by 7621429
7621620
Unavailable
33
RIVET Substituted by 7621429
7621620
Unavailable
33
RIVET Substituted by 7621429
7621620
Unavailable
33
RIVET Substituted by 7621429
7621620
Unavailable
34
CLIP, BELT Substituted by 5222769
5220817
Unavailable
35
GUARD,CLUTCH Substituted by 5240965
5230118
Unavailable
36
PIN,RETAINING,(10)
7080216
$9.70
37
TUNNEL ASM. Substituted by 1011808 (Incl. 46)
1011789
Unavailable
37
TUNNEL ASM. Substituted by 1011809 (Incl. 46) - 500 Classic
1011790
Unavailable
37
TUNNEL,(LIQ.SKS-91) (Incl. 46) - 500 SKS
1011811
Unavailable
38
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
40
SPRING, TANK
7042033
Unavailable
41
SNAP-MALE(10)
7080227
Unavailable
42
DECAL,ENG/CLUTCH [No Longer Available]
7072871
Unavailable
43
BUMPER, REAR Substituted by 5224334-067
5224334
Unavailable
43
BUMPER, (SKS) Substituted by 5224349-067
5224349
Unavailable
44
DECAL, TRACK Substituted by 7072872
7072132
Unavailable
44
DECAL,TRACK SEAT(BLK.) [No Longer Available]
7073038
Unavailable
44
DECAL,TRACK,SILVER [No Longer Available]
7072873
Unavailable
45
PANEL,TUNNEL,BACK Substituted by 5220478-067
5220478
Unavailable
46
PANEL,R.CLOSE-OFF ASM.
1011799
$32.95
47
FLAP, SNOW,SILVER Substituted by 5410394-1106
5410394
$121.02
47
FLAP,SNOW,(BLUE) Substituted by 5410394
5410554
$121.02
48
POP RIVET(50)
7621418
$1.49
49
WEARPLATE,TUNNEL
5222061
Unavailable
50
RIVET Substituted by 7661812
7661818
Unavailable
51
CAP, BUMPER Substituted by 5430930-070
5430930
Unavailable
52
REFLECTOR RED
2670070
$9.91
53
BOLT(10)
7512103
$3.19
54
WASHER(10)
7558301
$1.49
55
RIVET-POP 1/8(.063-.125)-ST-Z
7621222
$1.49
56
PLATE,TUNNEL,LH
5220634
Unavailable
56
PLATE,TUNNEL,RH
5220635
Unavailable
57
FOAM, FILLER
5810201
Unavailable
58
DECAL(47.5'')TUNNEL [No Longer Available]
7072078
Unavailable
59
HARNESS-TAILLIGHT Substituted by 2460399
2460226
Unavailable
60
BRACKET, HINGE Substituted by 5241437
5220406
Unavailable
61
SUPPORT,MUFFLER,FRONT [No Longer Available]
5222575
Unavailable
62
BRKT,GASTANK,WELD. Substituted by 1011733-067
1011733
Unavailable
63
BULKHEAD,(500) Substituted by 1011743-067
1011743
Unavailable
63
BULKHEAD Substituted by 1011743-067
1011763-01
Unavailable
64
DECAL(36.0'')R.BUMP. [No Longer Available]
7072653
Unavailable
64
DECAL,STRIPE,R.BUMPER [No Longer Available]
7072623
Unavailable
65
DECAL, SKS, BLUE [No Longer Available]
7073057
Unavailable
66
BOLT(10)
7512240
$3.99
67
NUT-HEX-3/8-16 A ZTB NYL
7542451
$1.49
68
BOLT(10)
7515432
Unavailable
69
PAD,LH,R.SUSP.MTG. Substituted by 1011749-067
1011749
Unavailable
69
PAD,RH,R.SUSP.MTG. Substituted by 1011750-067
1011750
Unavailable
70
BRKT. Substituted by 5220542-067
5220542
Unavailable
71
BRKT, TOOL BOX
5220973
Unavailable
72
GAS LINE, (FT.) [Cannot Purchase as Assembly]
8450003
Unavailable
73
SEAT BUN [No Longer Available]
5430707
Unavailable
74
PALNUT(10)
7670031
Unavailable
74
PALNUT(10)
7670031
Unavailable
75
SPACER
5332896
Unavailable
76
DECAL,LH,TUNNEL(91-500) [No Longer Available]
7072982
Unavailable
76
DECAL,RH,TUNNEL(91-500) [No Longer Available]
7072983
Unavailable
77
STRIP-WEAR
5510130
Unavailable
77
SEAT ASM,(500SP) Substituted by 2200751
2681493
Unavailable
77
COVER,SEAT,(SP) Substituted by 2200741
2681494
Unavailable
77
COVER,TANK,(SP) Substituted by 2200741
2681495
Unavailable
77
BRKT,R.FUELTANK MTG. Substituted by 5222375-067
5222375
Unavailable
77
DECAL,RH,TUNNEL(91-SP) [No Longer Available]
7073037
Unavailable
77
DECAL,LH,TUNNEL(91-SP) [No Longer Available]
7073036
Unavailable
