CARBURETOR '500 and 500 Classic (4919251925030A)

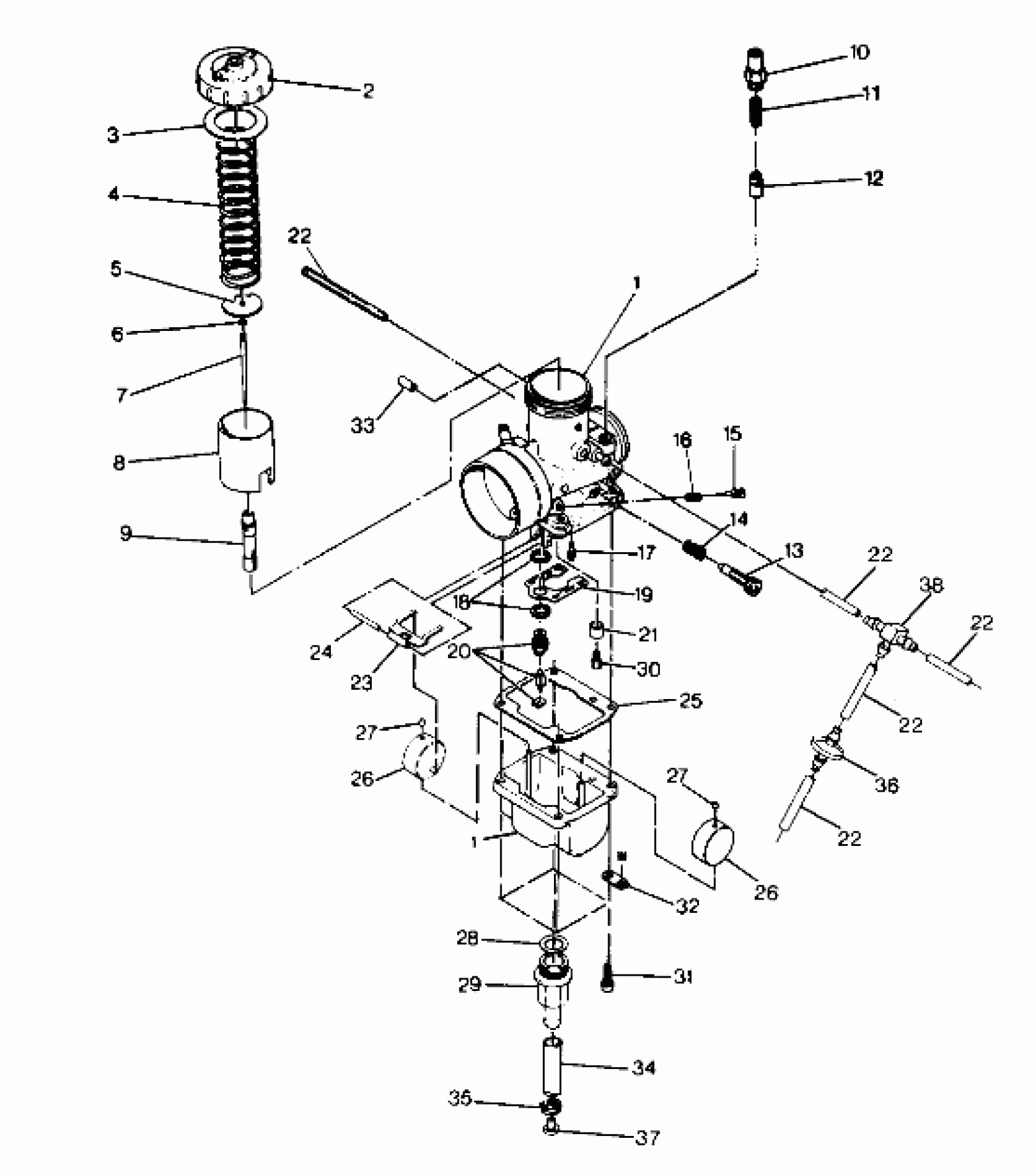

Polaris 500 - 0910764 CARBURETOR '500 and 500 Classic (4919251925030A) Diagram
#
1
CARB. ASM. (Incl. 2-37)
3130389
Unavailable
1
CARB. ASM. (Incl. 2-37)
3130389
Unavailable
2
TOP (Incl. 3)
3130061
Unavailable
3
GASKET
-------
Unavailable
4
SPRING,THROTTLE
3130444
Unavailable
5
PLATE, THROTTLE
3130054
$6.46
6
E RING(10) Substituted by 3130508
3130003
Unavailable
7
NEEDLE,JET,(6F9-3) (6F9-3)
3130378
Unavailable
8
VALVE,THROTTLE,(3.0)
3130352
Unavailable
9
JET,NEEDLE,(Q-0) (Q-0)
3130414
Unavailable
10
HOLDER,GUIDE
3130199
$28.32
11
SPRING,PLUNGER
3130006
$8.89
12
PLUNGER ASM, STARTER
3130328
$32.37
13
SCREW,THROTTLE STOP
3130009
$19.99
14
SPRING,THROTTLE ADJ.
3130010
$8.89
15
SCREW,AIR Substituted by 3130011
3130233
Unavailable
16
SPRING,AIR ADJUST
3130012
$8.89
17
JET,PILOT,#40(10)
3130067
$10.99
18
WASHER(10)
3130047
$4.84
19
PLATE
3130243
Unavailable
20
VALVE ASM,NEEDLE Substituted by 3130643
3130046
$56.65
21
RING,CARB
3130232
Unavailable
22
HOSE Substituted by 3130241
3081868
Unavailable
22
HOSE Substituted by 3130241
3081868
Unavailable
22
HOSE Substituted by 3130241
3081868
Unavailable
22
HOSE Substituted by 3130241
3081868
Unavailable
22
HOSE Substituted by 3130241
3081868
Unavailable
23
ARM,FLOAT
3130048
Unavailable
24
PIN, FLOAT Substituted by 3130235
3130240
$8.89
25
GASKET,FLOAT CHAMBER
3130236
$12.13
26
FLOAT ASM
3130021
$40.46
26
FLOAT ASM
3130021
$40.46
27
CAP,(10)
3130237
$4.03
27
CAP,(10)
3130237
$4.03
28
O RING
3130239
Unavailable
29
NIPPLE Substituted by 5020476
3130387
$10.56
30
JET,MAIN HX.HD#280(10)
3130131
$7.27
31
SCREW
3130056
$3.19
32
PLATE
3130242
Unavailable
33
CAP,VACUUM FIT
3130379
$6.63
34
FUEL LINE-50FT.PKG. Substituted by 8450003-1525 (Cut to Fit)
2870563
Unavailable
35
CLAMP-HOSE,(10)
7080236
$1.59
36
CHECKVALVE,VENT Substituted by 7051011
7052047
Unavailable
37
RIVET, (PLUG)(50)
7661912
Unavailable
38
FITTING, TEE,(10)
7052048
$3.99
