BRAKE AND CHAINCASE 500 and 500 Classic TO SERIAL NUMBER 1808614 - 500 TO S (4919251925009A)

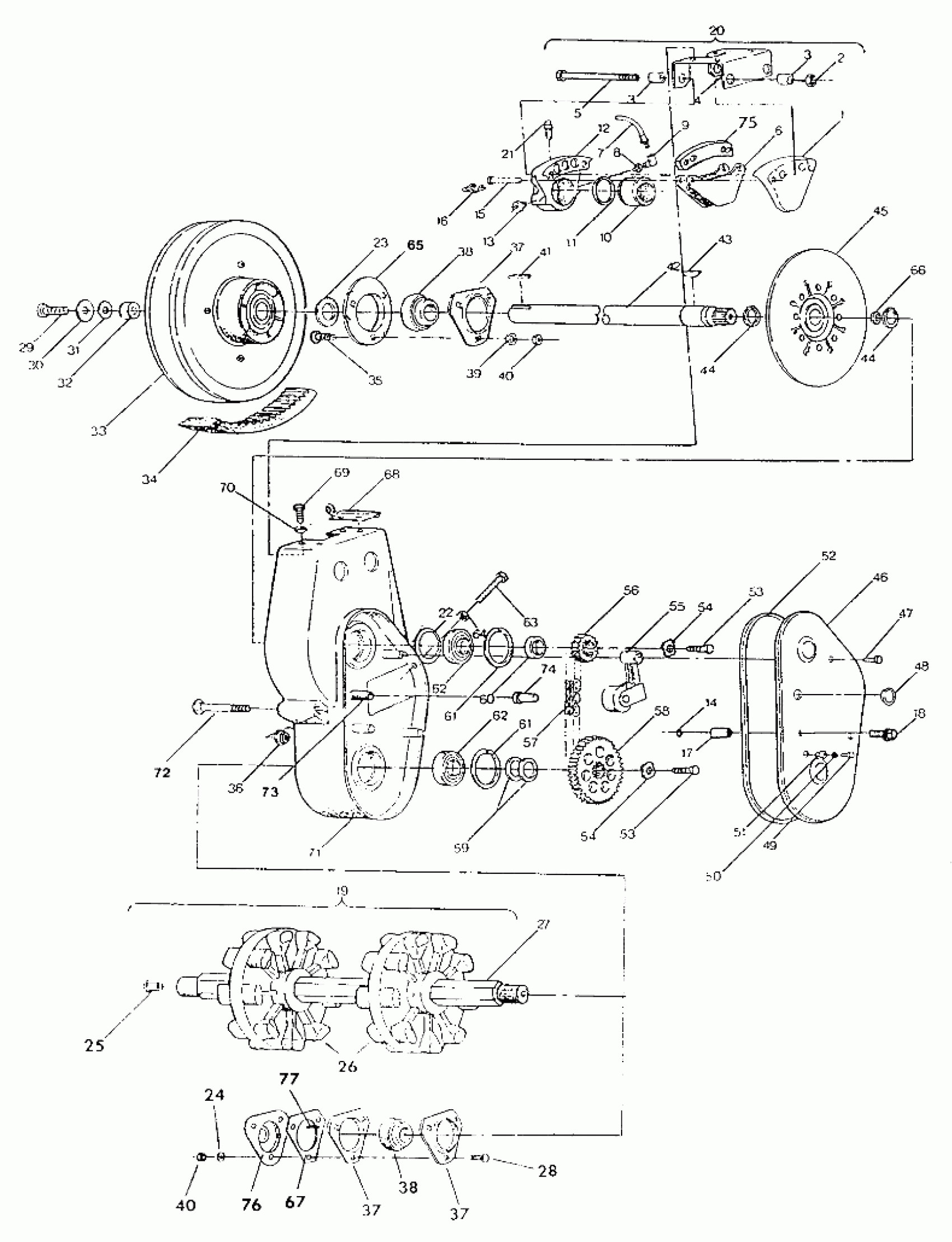

Polaris 500 - 0910764 BRAKE AND CHAINCASE 500 and 500 Classic TO SERIAL NUMBER 1808614 - 500 TO S (4919251925009A) Diagram
#
1
CASTING-CARRIER
1930570
Unavailable
2
NUT
1930558
Unavailable
3
BUSHING
1930559
Unavailable
3
BUSHING
1930559
Unavailable
4
BRACKET
5223986
Unavailable
5
BOLT-BRIDGE
1930561
Unavailable
6
PAD, BRAKE
1930569
Unavailable
7
LINE,BRAKE
1930692
Unavailable
8
CONNECTOR
5020371
Unavailable
9
ELBOW
7052058
Unavailable
10
PISTON
5020511
Unavailable
11
SEAL-PISTON
1930567
Unavailable
12
CALIPER ASM, BRAKE Substituted by 1930556
1930566
Unavailable
13
SWITCH-STOPLIGHT
4110046
Unavailable
14
O-RING,CHAINCASE
5410401
Unavailable
15
PIN,PAD RETAINING
1930563
Unavailable
16
CLIP-SPRING
1930562
Unavailable
17
STAND-OFF,C/C COVER
5333033
Unavailable
18
BOLT, S.S.(10)
7512293
Unavailable
19
DRIVE SHAFT ASM (Incl. ,19-21)
1590198
Unavailable
20
CALIPER ASM, BRAKE
1930556
Unavailable
21
SCREW-BLEEDER
1930564
Unavailable
22
O-RING,CHAINCASE
5410401
Unavailable
23
WASHER SPECIAL(10)
7556509
Unavailable
24
WASHER(10)
7555725
Unavailable
25
BUSHING METAL SPEEDO
3280019
$11.99
26
SPROCKET, 9T
5430571
Unavailable
27
DRIVE SHAFT
5020388
Unavailable
28
BOLT(10)
7512331
$3.99
29
BOLT(10)
7515301
Unavailable
30
WASHER FLAT(10)
7555701
$3.99
31
WASHER(10)
7555734
Unavailable
32
SPACER
5020291
Unavailable
33
CLUTCH ASM,(36 DEG.) Substituted by 1322105
1322132
Unavailable
34
BELT DRIVE(5)
3211042
$109.99
35
BOLT(10) Substituted by 7512377
7512394
Unavailable
36
NUT(10)
7542423
$3.99
37
FLANGETTE Substituted by 5222751
5222591
Unavailable
37
FLANGETTE Substituted by 5222751
5222591
Unavailable
37
FLANGETTE Substituted by 5222751
5222591
Unavailable
38
BEARING,1 IN.(GREASEABLE)
3514511
Unavailable
38
BEARING,1 IN.(GREASEABLE)
3514511
Unavailable
39
WASHER-.344X.688X.063 FL-Y
7558402
$1.49
40
NUT-5/16-18 NYLOK-Y
7542324
$1.49
40
NUT-5/16-18 NYLOK-Y
7542324
$1.49
41
KEY-SQUARE(10)
7721204
$3.19
42
SHAFT, INPUT,BLK. Substituted by 5020323-067
5020323
Unavailable
43
KEY,(10)
7727003
Unavailable
44
RING, RETAINING(10)
7713901
Unavailable
44
RING, RETAINING(10)
7713901
Unavailable
45
DISC BRAKE ASM Substituted by 1910086
1910064
Unavailable
46
COVER CHAINCASE Substituted by 5222579
5223775
Unavailable
47
BOLT(10)
7512246
Unavailable
48
PLUG,RUBBER-HOLE,.5DIA(10) Substituted by 5411426
5410012
Unavailable
49
SCREW(10)
7511909
$3.99
50
WASHER, FLAT(10)
7558201
$5.79
51
NUT-WELL(10)
7541918
Unavailable
52
GASKET-CHAINCASE
5410277
$24.99
53
SCREW(10)
7515350
$3.97
53
SCREW(10)
7515350
$3.97
54
WASHER(10)
7571618
$6.39
54
WASHER(10)
7571618
$6.39
55
TIGHTENER ASM. Substituted by 1332213
1332078
$159.99
56
SPROCKET 21 T
3221035
Unavailable
56
SPKT, 20T (500 SKS)
3221053
Unavailable
57
CHAIN 66 PITCH
3224024
Unavailable
58
SPROCKET 39 T
3222034
Unavailable
60
SPACER, SPROCKET
5010270
Unavailable
61
RET.RING-TRUARC(N5000-206)-P
7718406
$6.39
61
RET.RING-TRUARC(N5000-206)-P
7718406
$6.39
62
BEARING
3514303
$11.99
62
BEARING
3514303
$11.99
63
SCREW(10)
7512470
Unavailable
64
NUT(10)
7542404
$1.59
65
FLANGETTE,W/GREASE GROOVE Substituted by 5240252
5222581
Unavailable
66
SPACER,DISK BRAKE
5020430
Unavailable
67
GASKET,DRIVE ADAPTOR,(10)
5830012
$2.41
68
RETAINER, RECOIL Substituted by 1011593-067
1011593
Unavailable
69
BOLT(10)
7512240
$3.99
70
LOCK WASHER(10)
7552801
$1.59
71
CHAINCASE ASM,(REPL.) (Repl.)
1332124
$263.99
72
BOLT(10)
7515428
$4.79
73
BOLT(10)
7515477
$34.99
74
CAP, STUD COVER
5020569
Unavailable
75
SPACER
5210999
Unavailable
76
Desc not available [No Longer Available]
3280012
Unavailable
77
SQ. KEY SPEEDOMETER,(10)
3280017
$13.75
