HOOD 500 and 500 Classic Updated 2/90 (4916791679003A)

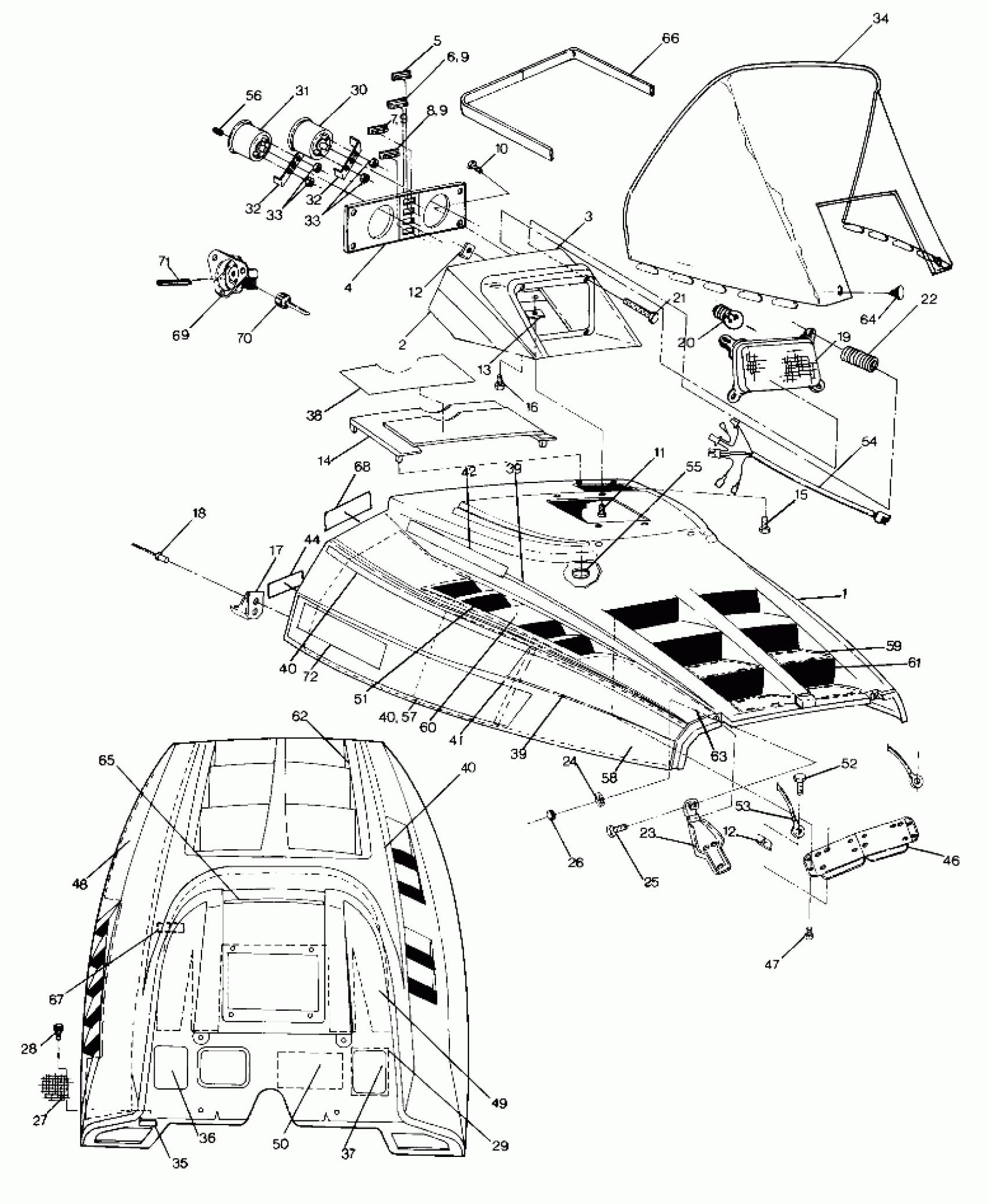

Polaris 500 - 0900764 HOOD 500 and 500 Classic Updated 2/90 (4916791679003A) Diagram
#
1
HOOD,BLACK,INDY Substituted by 2631574-070
5431194-070
Unavailable
1
DESC NOT_AVAILABLE (500 Classic Only)
5431079
Unavailable
2
HSG,INST,BOTTOM Substituted by 5430922-070
5431051
Unavailable
2
HOUSING,INST.BOTTOM Substituted by 5430922-070 (500 SP)
5430922
Unavailable
3
HSG,INST, TOP Substituted by 5430923-070
5431052
Unavailable
3
HOUSING,INST.TOP Substituted by 5430923-070 (500 SP)
5430923
Unavailable
4
BEZEL, INST.
5430924
Unavailable
5
INDICATOR'TEMP'WARN.
4040011
$32.37
6
INDICATOR'LOW-OIL'WARN. (500 Classic Only)
4040012
Unavailable
7
INDICATOR'HI-BEAM'WARN. (500 Classic Only)
4040013
Unavailable
8
INDICATOR,'ACC'WARN. (500 Classic Only)
4040014
Unavailable
9
PLUG,INDIC.HOLE (All except 500 Classic)
5430967
$5.65
9
PLUG,INDIC.HOLE (All except 500 Classic)
5430967
$5.65
9
PLUG,INDIC.HOLE (All except 500 Classic)
5430967
$5.65
10
SCREW,SCKT.HD.CAP(10)
7512008
Unavailable
11
SCREW, SEMS(10)
7512283
$3.99
12
NUT, SPEED(10)
7670056
Unavailable
12
NUT, SPEED(10)
7670056
Unavailable
13
NUT, SPEED(10)
7670057
$1.49
14
PANEL,INTAKE,BLK Substituted by 2620078-070
5431195-070
Unavailable
14
PANEL,INTAKE,BLUE Substituted by 2620078-145 (500 Classic Only)
5431195-145
Unavailable
14
DESC NOT_AVAILABLE
5431078
Unavailable
15
SCREW(10)
7511840
Unavailable
16
SCREW(10)
7512009
Unavailable
17
CUP, HOOD LATCH,(10)
5430733
$4.84
18
RIVET(50)
7621334
$1.49
19
HEADLIGHT ASM. Substituted by 4032040 (Incl. 20-22)
2431007
Unavailable
21
SCREW, ADJ.(10)
4032003
Unavailable
22
SPRING-ADJ
4032002
Unavailable
23
HINGE ASM,HD. Substituted by 2635005-067
2635005
Unavailable
24
WASHER,WROUGHT(10)
7558302
$1.59
25
BOLT-CARRIAGE(10)
7512263
$3.99
26
NUT-LOCK(10)
7542122
$1.49
27
SCREEN, HOOD Substituted by 5211117-067
5211117
Unavailable
28
SCREW(10)
7511858
$3.99
29
DECAL,SPEC,(500) [No Longer Available]
7072611
Unavailable
30
SPEEDOMETER (Incl. 32-33)
3280092
$111.99
30
SPEEDO.,(KILOMETER) (Incl. 32-33)
3280097
$125.65
31
TACHOMETER (Incl. 32-33)
3280093
Unavailable
32
BRACKET
3280098
Unavailable
32
BRACKET
3280098
Unavailable
33
NUT
3280063
Unavailable
33
NUT
3280063
Unavailable
34
WINDSHIELD,SMOKE,STD(LIQ)
5431144
$134.99
35
LABEL, 'U.S.A.'
7073024
Unavailable
37
DECAL,OPER.CAUT.(FR.) [No Longer Available]
7072493
Unavailable
37
DECAL,OPER.CAUT(FR.) [No Longer Available] (500 Classic Only)
7072801
Unavailable
38
DECAL,DASH WARNING [No Longer Available]
7072491
Unavailable
39
DECAL,LH HOOD TOP [No Longer Available]
7072747
Unavailable
39
DECAL,RH HOOD TOP [No Longer Available]
7072748
Unavailable
39
DECAL,LH HOOD TOP [No Longer Available] (500 Classic Only)
7072762
Unavailable
39
DECAL,RH HOOD TOP [No Longer Available] (500 Classic Only)
7072763
Unavailable
40
DECAL,LH HOOD SIDE [No Longer Available] (500 Classic Only)
7072764
Unavailable
40
DECAL,RH HOOD SIDE [No Longer Available] (500 Classic Only)
7072765
Unavailable
40
DECAL,RH HOOD [No Longer Available]
7072750
Unavailable
40
DECAL,LH HOOD [No Longer Available]
7072749
$25.73
40
DECAL,LH HOOD SIDE [No Longer Available] (500 Classic Only)
7072764
Unavailable
40
DECAL,RH HOOD SIDE [No Longer Available] (500 Classic Only)
7072765
Unavailable
40
DECAL,RH HOOD [No Longer Available]
7072750
Unavailable
40
DECAL,LH HOOD [No Longer Available]
7072749
$25.73
40
DECAL,LH HOOD SIDE [No Longer Available] (500 Classic Only)
7072764
Unavailable
40
DECAL,RH HOOD SIDE [No Longer Available] (500 Classic Only)
7072765
Unavailable
40
DECAL,RH HOOD [No Longer Available]
7072750
Unavailable
40
DECAL,LH HOOD [No Longer Available]
7072749
$25.73
41
TAPE,FOIL,FOAM
5810405
Unavailable
42
DECAL,'FIVE HUNDRED' [No Longer Available] (Classic Only)
7072725
Unavailable
44
LOGO, INDY SPECIAL (500 Special Only)
5431108
Unavailable
46
PLATE,RE-INF.,(HD.)
5222105
$49.51
47
SCREW(10)
7511861
Unavailable
48
FOAM, HOOD, RH
5810375
Unavailable
48
FOAM, HOOD, LH
5810374
Unavailable
49
FOAM, HOOD, CTR
5810376
Unavailable
50
FOAM, HOOD
5810389
Unavailable
51
TAPE,FOIL
5810395
Unavailable
52
SCREW(10)
7511989
Unavailable
53
CABLE,HD.RETAINER
7080360
$24.27
54
HARNESS,H/L.&INST. [No Longer Available]
2460261
Unavailable
54
HARNESS,H/L.&INST. [No Longer Available] (500 Classic Only)
2460260
Unavailable
54
HARNESS,HEADLIGHT
2460287
Unavailable
55
O RING,(HEAVY),(10) Substituted by 5410970
5410387
$1.19
56
KNOB,TRIP ODOMETER
3280103
$3.83
57
KIT,DECAL,500 CLASSIC [No Longer Available] (Incl. 35-40, 42, 43, 45, 68, 72) (500 Classic Only)
2200325
Unavailable
57
KIT,DECAL,'90(500) (Incl. 35-40, 43, 45)
2200324
Unavailable
58
TAPE,FOIL,FOAM
5810407
Unavailable
59
TAPE,FOIL,LH
5810393
Unavailable
59
TAPE,FOIL,RH
5810394
Unavailable
60
TAPE,FOIL
5810396
Unavailable
61
TAPE,FOIL
5810397
Unavailable
62
TAPE,FOIL,LOUVER,PIPE SIDE
5810404
Unavailable
63
TAPE,FOIL,FOAM
5810406
Unavailable
64
CLIP-PLASTIC(10) Substituted by 7621505
7670041
Unavailable
65
DECAL,HOOD-H/L POD [No Longer Available]
7072676
Unavailable
66
PAD,W/S,LH,BLACK
5810437
Unavailable
66
PAD,W/S,RH,BLACK
5810438
$1.67
67
CLIP, WIRING,(10) Substituted by 7080665
4020035
Unavailable
68
LOGO,E/S,(CLASSIC) [No Longer Available] (500 Classic Only)
5431137
Unavailable
69
ADAPTER,DRIVE Substituted by 3280116
3280095
Unavailable
70
CABLE,SPEEDO.
3280094
$60.70
71
SQ. KEY SPEEDOMETER,(10)
3280017
$13.75
72
SPRING,HOOD CABLE
7041202
Unavailable
72
EMBLEM, (CLASSIC) (500 Classic Only)
5431114
Unavailable
72
DECAL,SPEC.'500' [No Longer Available]
7072867
Unavailable
