FRONT SUSPENSION AND SKI 500 and 500 Classic Updated 2/90 (4916791679007A)

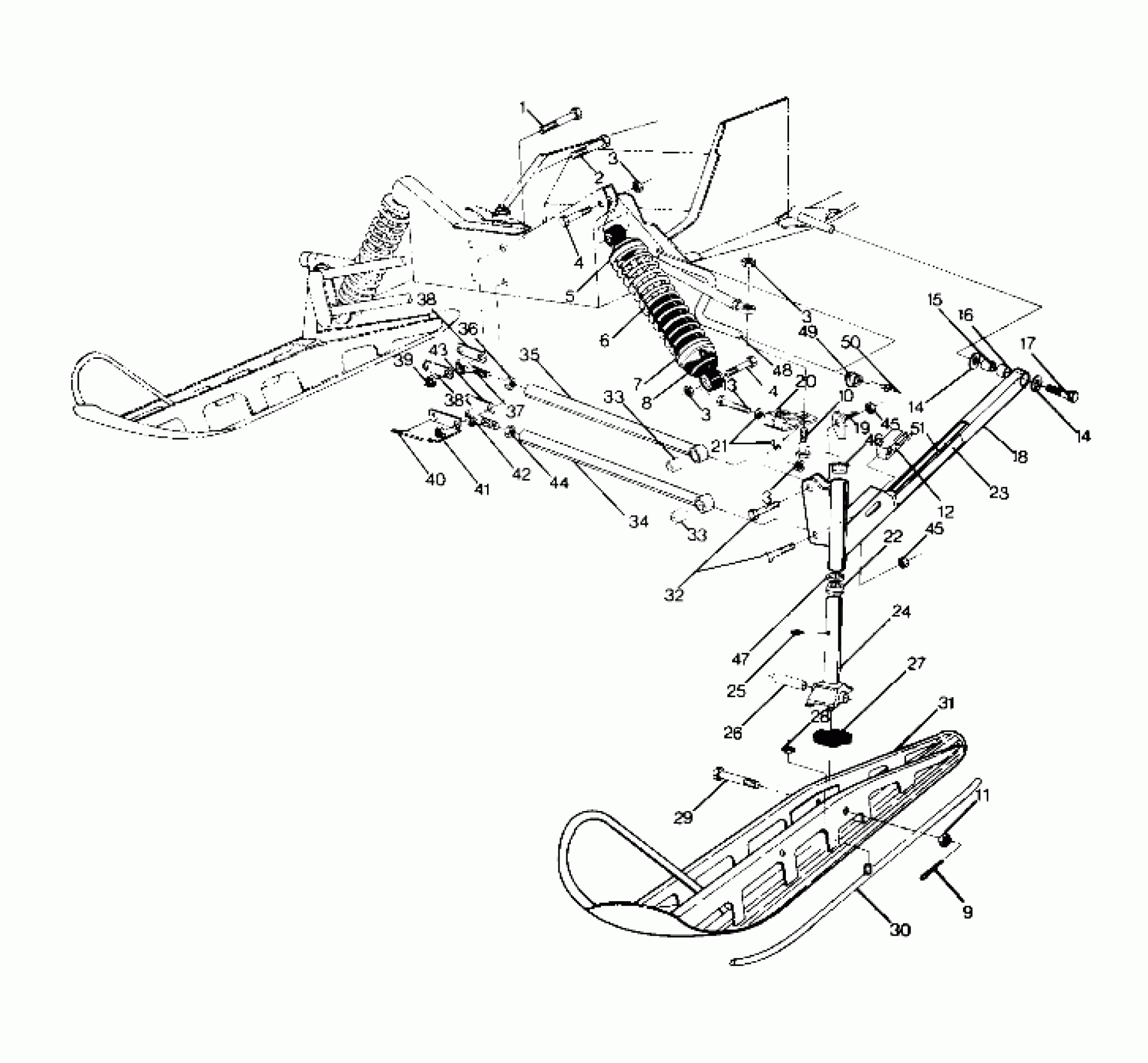

Polaris 500 - 0900764 FRONT SUSPENSION AND SKI 500 and 500 Classic Updated 2/90 (4916791679007A) Diagram
#
1
BOLT(10)
7512551
Unavailable
2
BOLT(10)
7512656
$6.23
3
NUT-LOCK(10)
7542439
$1.49
3
NUT-LOCK(10)
7542439
$1.49
3
NUT-LOCK(10)
7542439
$1.49
3
NUT-LOCK(10)
7542439
$1.49
4
BOLT(10)
7515415
$1.49
4
BOLT(10)
7515415
$1.49
5
RETAINER-TOP
5220225
$10.39
6
SPRING,COIL(SPRING,BLUE) Substituted by 7041261-067 (500 Only)
7041213
$164.99
6
SPRING Substituted by 7041242-067 (500 Classic Only)
7041242
$164.99
7
SPACER,SHOCK RETAINER(10)
5210953
$6.39
8
SHOCK,FR.SUSP.
7041144
Unavailable
9
PIN-COTTER(10)
7661205
$1.49
10
BOLT(10)
7512404
$3.99
11
NUT-3/8-24 HX CA GR5-Y
7542438
$1.59
12
SLIDE-SWAYBAR
5410384
Unavailable
12
SLIDE,(FR.SUSP.) (500 Special Only)
5410385
Unavailable
13
BOLT Substituted by 7515491
7515433
$1.59
14
WASHER(10)
7555721
$1.49
14
WASHER(10)
7555721
$1.49
15
TUBE,TRAILING ARM
5010187
Unavailable
16
PIVOT-TRAILING ARM
5410382
Unavailable
17
BOLT(10)
7512557
$7.60
18
ARM-TRAILING RH Substituted by 1822052-067
1822052
Unavailable
18
ARM-TRAILING LH Substituted by 1822053-067
1822053
Unavailable
19
STOP,STRNG,LH,BLK. Substituted by 5220237-067
5220237
Unavailable
19
STOP,STRNG,RH,BLK. Substituted by 5220238-067
5220238
Unavailable
20
ARM, STEERING Substituted by 5220326-067
5220326
Unavailable
21
WASHER(10) Substituted by 7555806
7555720
$0.79
22
BUSHING,SPINDLE HSG,(10)
3574208
$3.19
23
DECAL,LH IFS,BLUE [No Longer Available] (500 & 500 Classic Only)
7072564
Unavailable
23
DECAL,RH IFS,BLUE [No Longer Available] (500 & 500 Classic Only)
7072565
Unavailable
23
DECAL,IFS,LH GOLD [No Longer Available] (500 Classic Only)
7072812
Unavailable
23
DECAL,IFS,RH,GOLD [No Longer Available] (500 Classic Only)
7072813
Unavailable
24
SPINDLE,GREASABLE Substituted by 5130919-067
6230055
Unavailable
25
FITTING-LUBE.(10) Substituted by 7080561
7080220
$4.76
26
BUSHING,PIVOT,(10)
5010158
$19.99
27
STOP-RUBBER
5521094
Unavailable
28
NUT-5/16-18 NYLOK-Y
7542324
$1.49
29
BOLT(10)
7515462
$8.79
30
SKAG,CARBIDE,TRAIL E/S Substituted by 2870693
1820266
Unavailable
31
SKI Substituted by 1820332-067
1820279
Unavailable
31
DESC NOT_AVAILABLE (500 Classic)
1820273
Unavailable
31
DESC NOT_AVAILABLE
1820278
Unavailable
32
BOLT(10) Substituted by 7515492
7512410
Unavailable
33
BUSHING-RADIUS ROD,(10)
5010127
$7.99
33
BUSHING-RADIUS ROD,(10)
5010127
$7.99
34
ROD,RADIUS,BLACK Substituted by 1822045-067
1822045
Unavailable
34
ROD,RADIUS,(BLK.)LOW (500 Special Only)
1822055-067
Unavailable
34
DESC NOT_AVAILABLE (500 Special Only)
1822086
Unavailable
35
ROD-RADIUS Substituted by 1822037-067
1822037
Unavailable
35
ROD, RADIUS,(BLK.) (500 Special Only)
1822054-067
Unavailable
35
DESC NOT_AVAILABLE (500 Special Only)
1822085
Unavailable
36
NUT JAM(10)
7542520
$2.39
37
ROD END RH
7060126
Unavailable
38
STRAP-SPACER
5220178
$1.49
38
STRAP-SPACER
5220178
$1.49
39
NUT, LOCK,(10)
7542503
$10.39
40
BRACE, PAN Substituted by 5223997-067
5223997
Unavailable
41
NUT FLEX,(10)
7542703
Unavailable
42
ROD END
7060127
Unavailable
43
STRAP-SPACER BOTTOM
5220227
Unavailable
44
NUT-JAM(10)
7542711
$2.39
45
NUT LOCK(10)
7542411
$3.19
45
NUT LOCK(10)
7542411
$3.19
46
BUSHING-FLANGE
3573909
$2.39
47
WASHER SPECIAL(10)
7556509
$1.59
48
BAR,SWAY,BLACK Substituted by 5224237-067
5224237
Unavailable
48
SWAY BAR Substituted by 5224240-067 (500 Special Only)
5224240
Unavailable
48
BAR, SWAY, (BLK.) (500 Special Only)
5224240-067
$49.21
49
BUSHING-SWAYBAR
5410383
Unavailable
49
BUSHING,SWAYBAR (500 Special Only)
5410386
Unavailable
50
RIVET(50)
7621433
$1.49
51
DECAL(25.0'')TOP,BLUE [No Longer Available] (500 & 500 Classic Only)
7072649
Unavailable
51
DECAL,IFS,TOP [No Longer Available] (500 Classic Only)
7072814
Unavailable
