Description

Price

1

CYLINDER (Incl. 2, 3)

3083958

$609.99

2

STUD Substituted by 3083360

3083074

Unavailable

3

STUD (10)

3080016

$5.75

4

GASKET, BASE

3084025

Unavailable

4

GASKET, BASE Substituted by 3084768

3083959

$64.99

5

NUT-FLANGE(10)

3082911

$1.99

6

NUT(10)

3080285

Unavailable

7

HEAD, CYLINDER (Incl. 8)

3083960

$354.99

8

PIPE, WATER (Water)

3083452

Unavailable

9

GASKET,HEAD

3084332

Unavailable

9

GASKET, HEAD Substituted by 3084332

3083961

Unavailable

10

NUT-FLANGE(10)

3082910

$2.39

11

WASHER LOCK ,(10)

3080530

$3.19

12

PLUG Substituted by 3084491

3083044

Unavailable

13

GASKET-ALUM Substituted by 3084492

3082719

Unavailable

14

SWITCH,THERMAL(93 DEG.C.)

3083055

Unavailable

15

NECK, FILLER

3083398

Unavailable

16

GASKET, INTAKE

3084027

Unavailable

16

GASKET, FILLER NECK

3083340

Unavailable

17

BOLT&WASHER ASM.

3083361

Unavailable

18

ADAPTER Substituted by 3084325

3083171

Unavailable

19

Bolt, Allen

3081330

$3.99

20

BAND ASM. (Incl. 21)

3083166

$19.84

21

SCREW Substituted by 3081497

3083086

Unavailable

22

GASKET, EXHAUST

3084026

Unavailable

22

GASKET,EXHAUST Substituted by 3084439

3082510

Unavailable

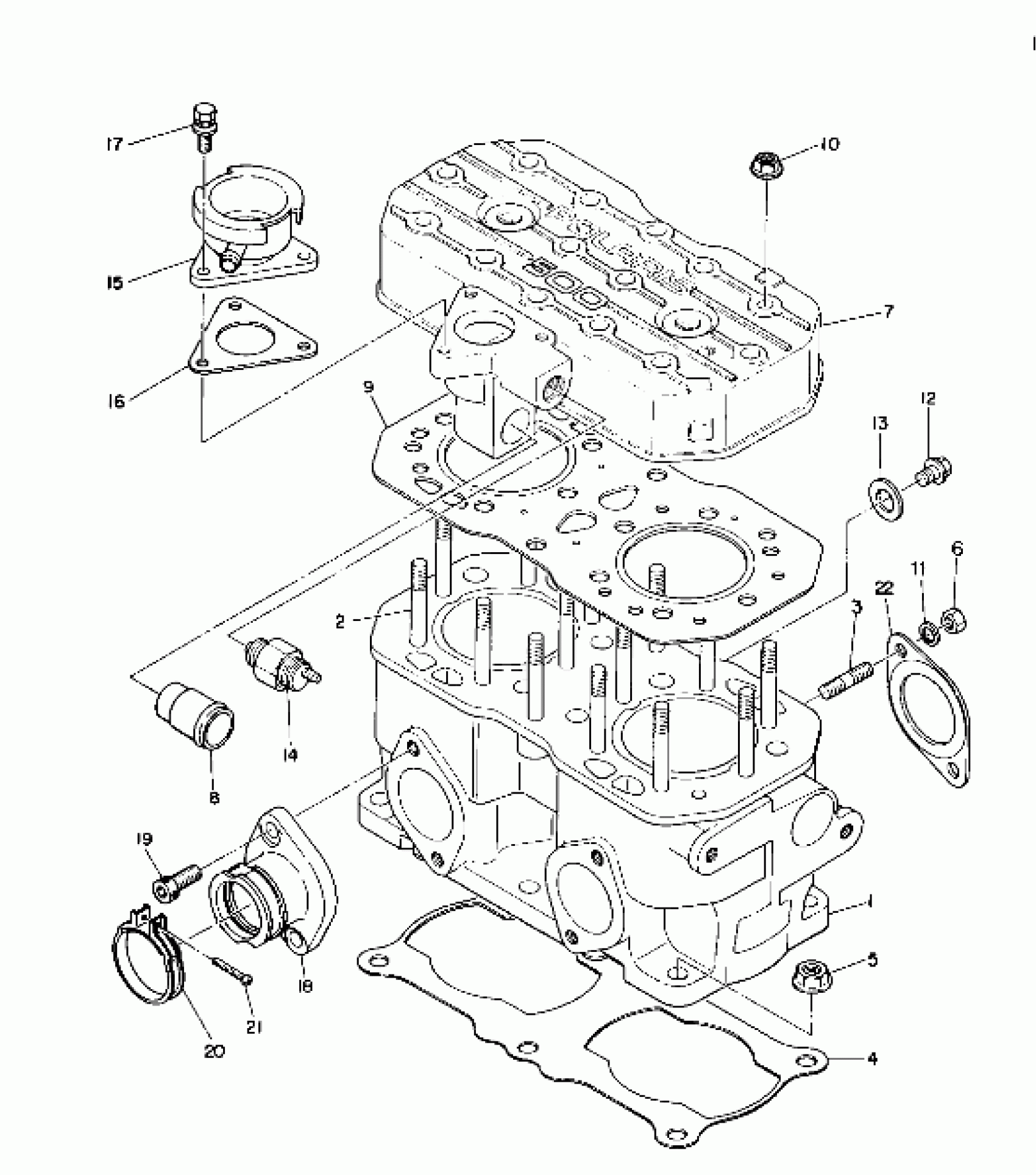

Polaris 500 - 0900764 CYLINDER 500 and 500 Classic (4916791679024A) Diagram

CYLINDER (Incl. 2, 3)

STUD Substituted by 3083360

STUD (10)

GASKET, BASE

GASKET, BASE Substituted by 3084768

NUT-FLANGE(10)

NUT(10)

HEAD, CYLINDER (Incl. 8)

PIPE, WATER (Water)

GASKET,HEAD

GASKET, HEAD Substituted by 3084332

NUT-FLANGE(10)

WASHER LOCK ,(10)

PLUG Substituted by 3084491

GASKET-ALUM Substituted by 3084492

SWITCH,THERMAL(93 DEG.C.)

NECK, FILLER

GASKET, INTAKE

GASKET, FILLER NECK

BOLT&WASHER ASM.

ADAPTER Substituted by 3084325

Bolt, Allen

BAND ASM. (Incl. 21)

SCREW Substituted by 3081497

GASKET, EXHAUST

GASKET,EXHAUST Substituted by 3084439
