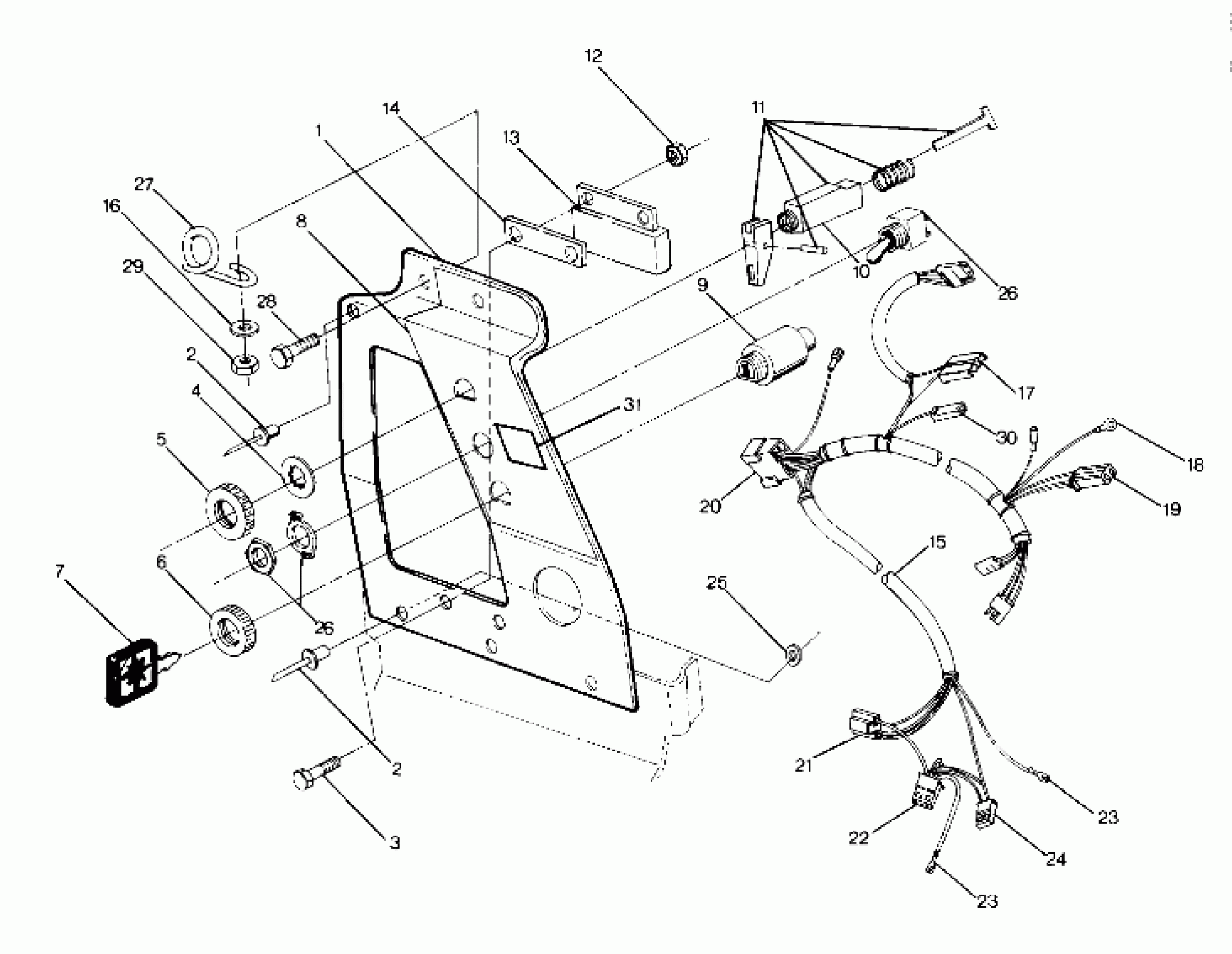

Polaris 500 - 0900764 CONSOLE 500 and 500 Classic (4916791679006A) Diagram
#
Description
Price
1
CONSOLE Substituted by 5222495-067
5220686
Unavailable
1
CONSOLE(SWED'87INDY) [No Longer Available]
5220959
Unavailable
2
POP RIVET(50)
7621425
$1.49
2
POP RIVET(50)
7621425
$1.49
3
SCREW(10)
7512007
$3.99
4
WASHER-LOCK(10)
7571610
$3.99
5
Choke Nut
-------
Unavailable
6
NUT-IGNITION SWITCH
7542807
Unavailable
7
KEY, IGNITION
5410378
$13.75
8
DECAL,CONSOLE,E/S [No Longer Available] (500 Classic Only)
7072420
Unavailable
8
DECAL,CONSOLE [No Longer Available]
7072421
Unavailable
9
SWITCH IGNITION
4110038
$44.51
9
SWITCH-E/S (500 Classic Only)
4110061
Unavailable
10
Cable, Choke Control (Incl. 5)
7080290
$105.22
11
KIT-CHOKE CONTROL
2200188
$24.27
12
NUT(10)
7541925
$1.49
13
REGULATOR - MINKS
4060071
Unavailable
14
HEAT SINK
5210650
Unavailable
15
HARNESS,MAIN WIRE
2460262
Unavailable
15
HARNESS, MAIN WIRE [No Longer Available] (500 Classic Only)
2460258
Unavailable
16
WASHER,WROUGHT(10)
7558302
$1.59
17
CONNECTOR, BRAKE SWITCH
4020112
Unavailable
17
TERMINAL
4020113
Unavailable
18
TERMINAL, RING Substituted by 4020092
2200029
Unavailable
19
HOUSING 2 CIRCUIT W/REC [No Longer Available]
2200020
Unavailable
20
HOUSING,W/RECEPTACLES
2200039
Unavailable
21
HOUSING 3 CIRCUIT W/REC
2200022
Unavailable
22
CONNECTOR, TACH.
2200094
Unavailable
23
Receptacle
4020061
Unavailable
23
Receptacle
4020061
Unavailable
24
KIT HOUSING 2 CIRCUIT
2200095
Unavailable
25
WASHER,13/64X1/2X18GA,FL-Y
7558212
$1.49
26
SW,HEATER,HI-LOW (500 Classic Only)
4110077
Unavailable
26
SW,HEATER,HI-LOW (500 Classic Only)
4110077
Unavailable
27
MT., RECOIL
5224296
Unavailable
28
BOLT-CARRIAGE(10)
7512263
$3.99
29
NUT-LOCK(10)
7542122
$1.49
30
CONNECTOR-TEMP.LIGHT
2200177
Unavailable
31
SWITCH,TETHER
2870668
$84.99
31
DECAL,HI-LO GRIP HTR. [No Longer Available] (500 Classic Only)
7072817
Unavailable
31
DECAL,CONSOLE,GOLD [No Longer Available]
7072906
Unavailable
